Ferrari California — Rear Lid (diagram 128)

Exploded view of the rear lid on the Ferrari California, with 63 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

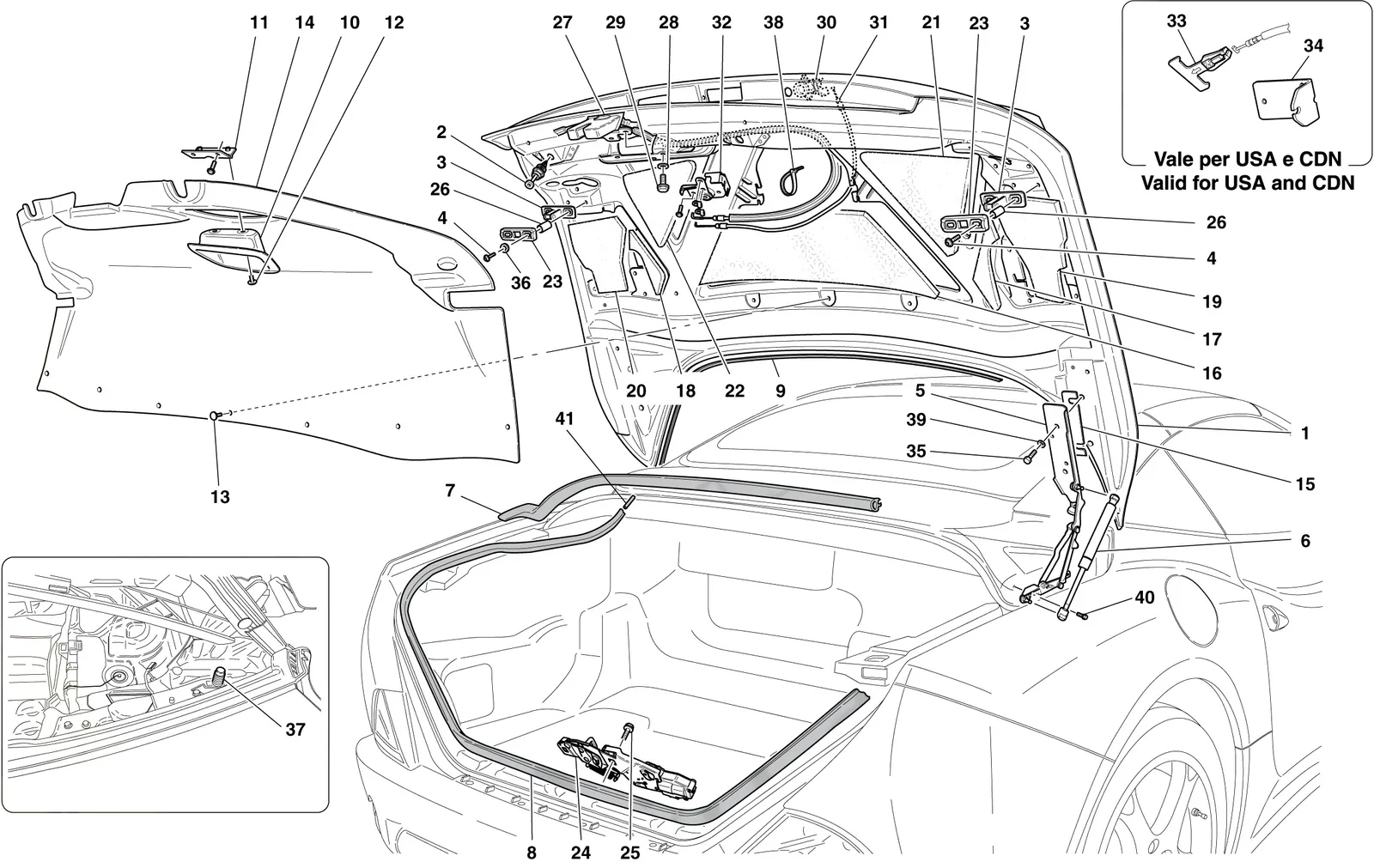

Ferrari California Rear Lid exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
169803810Ferrari Rear Hood Bonnet - 69803810$9,221.23Contact us to order
268204100Ferrari Anti Vibration Block - 68204100$41.30Available, ships in 3-6 days
267615500Ferrari Anti Vibration Block - 67615500SupersededOrder 68204100 instead
380559300Ferrari Luggage Compartment Lid Striker Plate - 80559300$78.30Available, ships in 3-6 days
464830600Ferrari Screw M6 x 22 TBEI - 64830600$3.26Available, ships in 3-6 days
415902601Ferrari Screw - 15902601$0.12Special order, ships in 7-14 days
570001686Ferrari Mechanism Kit for Boot Lid - 70001686$2,699.67Available, ships in 3-6 days
680854400Ferrari California Rear Lid Support - 80854400$98.89In stock
780458500Ferrari Boot Lid Gasket - 80458500$416.89Available, ships in 3-6 days
786718900Ferrari Tonneau Cover Seal - 86718900$500.40Available, ships in 3-6 days
869773500Ferrari Gasket For Trunk Hood - 69773500$192.90Available, ships in 3-6 days
980529800Ferrari Gasket - 80529800$45.67Available, ships in 3-6 days
1069772400Ferrari Luggage Compartment Lid Handle - 69772400$29.34Special order, ships in 7-14 days
1082853300Ferrari Luggage Compartment Lid Handle - 82853300$31.80Special order, ships in 7-14 days
1180685800Ferrari Bracket - 80685800$23.94Available, ships in 3-6 days
1214591687Ferrari Fixing Button - 14591687$0.13Available, ships in 3-6 days
1362797500Ferrari Plug - 62797500$0.17Available, ships in 3-6 days
1314591987Ferrari Fixing Button - 14591987$0.44Available, ships in 3-6 days
1469772100Ferrari Luggage Compartment Trim - 69772100$685.34Special order, ships in 7-14 days
1482852000Ferrari Luggage Compartment Trim - 82852000$611.91Special order, ships in 7-14 days
1581240300Ferrari Thickness - 81240300Price on requestContact us for price and availability
1581240400Ferrari Thickness - 81240400Price on requestContact us for price and availability
1681343000Ferrari Central Insulation For Trunk Compartment - 81343000$31.80Special order, ships in 7-14 days
1781343200Ferrari RH Insulation For Trunk Compartment - 81343200$22.00Special order, ships in 7-14 days
1881343100Ferrari LH Insulation For Trunk Compartment - 81343100$22.00Special order, ships in 7-14 days
1981343400Ferrari RH Lateral Insulation For Trunk Compartment - 81343400$144.38Special order, ships in 7-14 days
2081343300Ferrari LH Lateral Insulation For Trunk Compartment - 81343300$144.38Special order, ships in 7-14 days
2181342000Ferrari RH Upper Lateral Trunk Compartment - 81342000Price on requestContact us for price and availability
2281342800Ferrari LH Upper Lateral Trunk Compartment - 81342800Price on requestContact us for price and availability
2381982900Ferrari Bumper Receiver Trunk Lid - 81982900$234.96Special order, ships in 7-14 days
2469773100Ferrari California Trunk Lid Striker - 69773100$728.44In stock
2511617624Ferrari Screw - 11617624SupersededOrder 16287224 instead
2582271400Ferrari Screw with Washer M8 x 25 TE - 82271400$2.59Available, ships in 3-6 days
2683742100Ferrari Bushing - 83742100$6.50Available, ships in 3-6 days
2782035300Ferrari Luggage Compartment Lock - 82035300SupersededOrder 86488700 instead
2786263600Ferrari Luggage Compartment Lock - 86263600SupersededOrder 86488700 instead
2780797900Ferrari Luggage Compartment Lock - 80797900Price on requestContact us for price and availability
2786263800Ferrari Luggage Compartment Lock - 86263800SupersededOrder 86488800 instead
2816287127Ferrari Screw 8x20 - 16287127$0.92Special order, ships in 7-14 days
2912646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
3067080000Ferrari Trunk Compartment Opening Block - 67080000$100.34Special order, ships in 7-14 days
3182073700Ferrari Boot Release Cable - 82073700$51.37Special order, ships in 7-14 days
3269772500Ferrari California Emergency Release Assembly - 69772500$119.20In stock
3286263400Ferrari Emergency Release Complete - 86263400SupersededOrder 69772500 instead
3366403900Ferrari Emergency Trunk Release Handle - 66403900$74.00In stock
3482306900Ferrari Bracket - 82306900$16.87Available, ships in 3-6 days
3612643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
3612647778Ferrari Cup Washer - 12647778$0.82Available, ships in 3-6 days
3769058800Ferrari Rubber Pad - 69058800$1.67Special order, ships in 7-14 days
38145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
3912647121Ferrari Washer - 12647121$0.40Available, ships in 3-6 days
40210246Ferrari Screw 8x25 - 210246$2.82Available, ships in 3-6 days
4183212600Ferrari Joiner For Luggage Compartment Seal - 83212600$12.23Special order, ships in 7-14 days
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
86488700Ferrari Rear Lid Lock - 86488700$1,248.34Special order, ships in 7-14 days
86488800Ferrari Rear Lid Lock - 86488800$1,248.34Special order, ships in 7-14 days
15642501Ferrari Screw - 15642501SupersededOrder 15902601 instead
16287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
