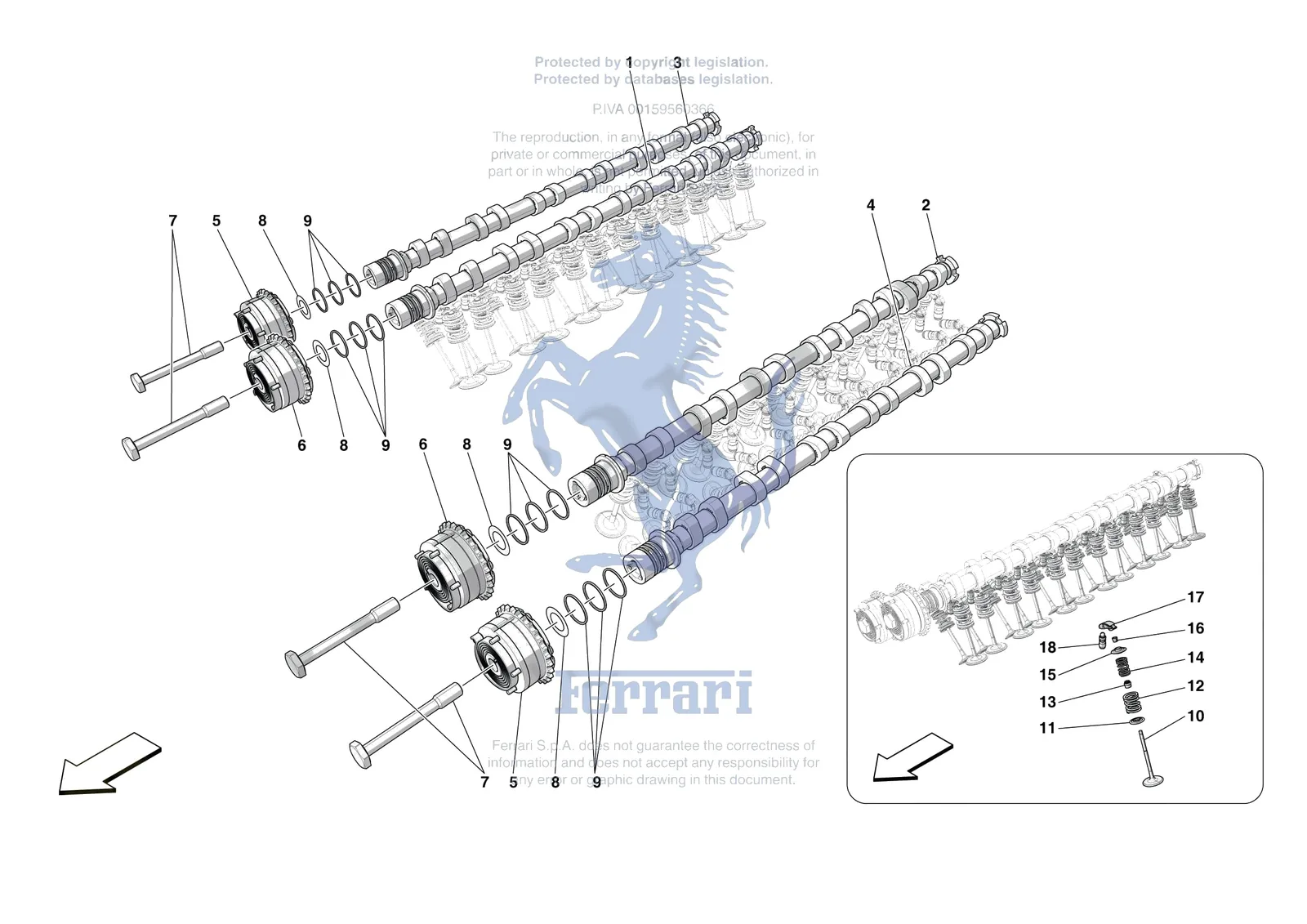

Ferrari Daytona SP3 — [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING (diagram 0013)
Exploded view of the [engine] - b.08.03 - cylinder heads - timing on the Ferrari Daytona SP3, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0013.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 831968 | Ferrari RH Intake Camshaft - 831968 | $1,375.53 | Special order, ships in 7-14 days |
| 2 | 831969 | Ferrari LH Intake Camshaft - 831969 | $1,375.53 | Special order, ships in 7-14 days |
| 3 | 831970 | Ferrari RH Exhaust Camshaft - 831970 | $1,323.63 | Special order, ships in 7-14 days |
| 4 | 831971 | Ferrari LH Exhaust Camshaft - 831971 | $1,323.63 | Special order, ships in 7-14 days |
| 5 | 248020 | Ferrari Exhaust Phase Variator - 248020 | $811.38 | Available, ships in 3-6 days |
| 6 | 241906 | Ferrari Intake Timing Variator - 241906 | $811.38 | Available, ships in 3-6 days |
| 7 | 254892 | Ferrari Screw M14 x 1.5 - 254892 | $26.20 | Available, ships in 3-6 days |
| 8 | 240559 | Ferrari Diamond Washer - 240559 | $17.90 | Available, ships in 3-6 days |
| 9 | 197975 | Ferrari Sealing Ring - 197975 | $14.62 | Available, ships in 3-6 days |
| 10 | 911024 | Ferrari Exhaust Valve - 911024 | $240.94 | Special order, ships in 7-14 days |
| 10 | 777849 | Ferrari Intake Valve - 777849 | $115.54 | Special order, ships in 7-14 days |
| 11 | 911028 | Ferrari Lower Valve Spring Cap - 911028 | $17.19 | Special order, ships in 7-14 days |
| 12 | 910742 | Ferrari External Valve Return Spring - 910742 | $41.76 | Special order, ships in 7-14 days |
| 13 | 899547 | Ferrari Oil Seal For Valve Seal - 899547 | $7.84 | Special order, ships in 7-14 days |
| 14 | 910743 | Ferrari Internal Valve Return Spring - 910743 | $41.76 | Special order, ships in 7-14 days |
| 15 | 776263 | Ferrari Upper Valve Spring Cap - 776263 | $34.40 | Special order, ships in 7-14 days |
| 16 | 179763 | Ferrari Valve Collets Per Half - 179763 | $1.40 | Available, ships in 3-6 days |
| 17 | 911027 | Ferrari Pad Roller Finger - 911027 | Price on request | Contact us for price and availability |
| 17 | 973895 | Ferrari Pad Roller Finger - 973895 | Price on request | Contact us for price and availability |
| 18 | 830096 | Ferrari Tappet For Roller Finger - 830096 | $71.28 | Special order, ships in 7-14 days |
