Ferrari Daytona SP3 — [ENGINE] - B.32 - ALTERNATOR (diagram 0037)

Exploded view of the [engine] - b.32 - alternator on the Ferrari Daytona SP3, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

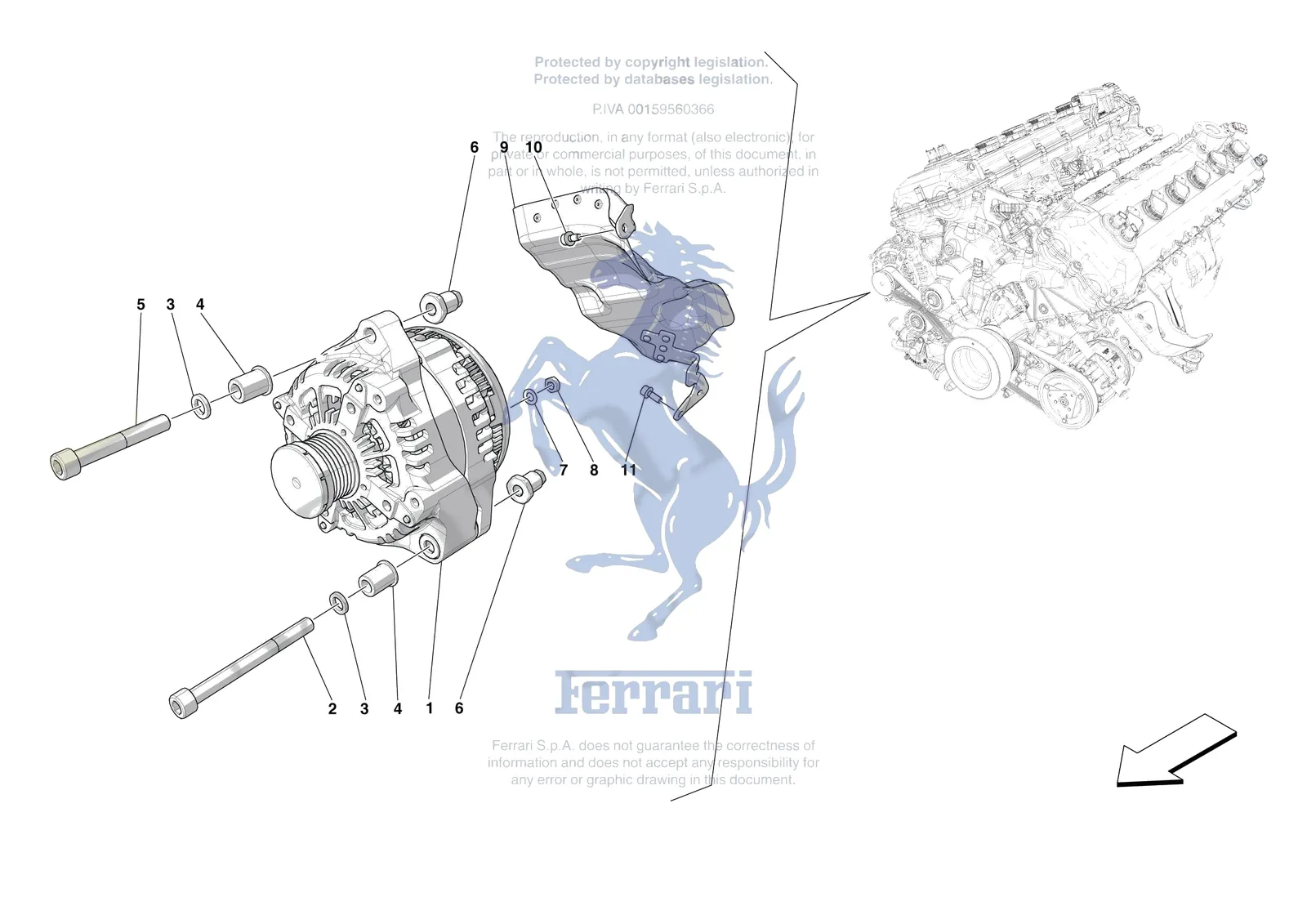

Ferrari Daytona SP3 [ENGINE] - B.32 - ALTERNATOR exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102315Ferrari Nut - 16102315SupersededOrder 16102314 instead
16100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
16102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
10615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
10615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
10615679Ferrari Washer - 10615679SupersededOrder 12601374 instead
12601370Ferrari Washer - 12601370SupersededOrder 12601374 instead
12601379Ferrari Washer - 12601379SupersededOrder 12601374 instead
1829167Ferrari Alternator - 829167$2,824.62Special order, ships in 7-14 days
214308724Ferrari Allen Screw 10x100 - 14308724$6.75Available, ships in 3-6 days
310569474Ferrari Washer - 10569474$0.12Special order, ships in 7-14 days
4258137Ferrari Bushing - 258137$10.91Special order, ships in 7-14 days
514308224Ferrari Screw - 14308224$2.07Special order, ships in 7-14 days
6288320Ferrari Threaded Bushing - 288320$26.20Special order, ships in 7-14 days
712601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
816102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
9840124Ferrari Alternator Heat Shield - 840124$393.38Special order, ships in 7-14 days
10233600Ferrari/Maserati Screw - 233600$1.98In stock
11231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
