Ferrari Daytona SP3 — [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS (diagram 0040)

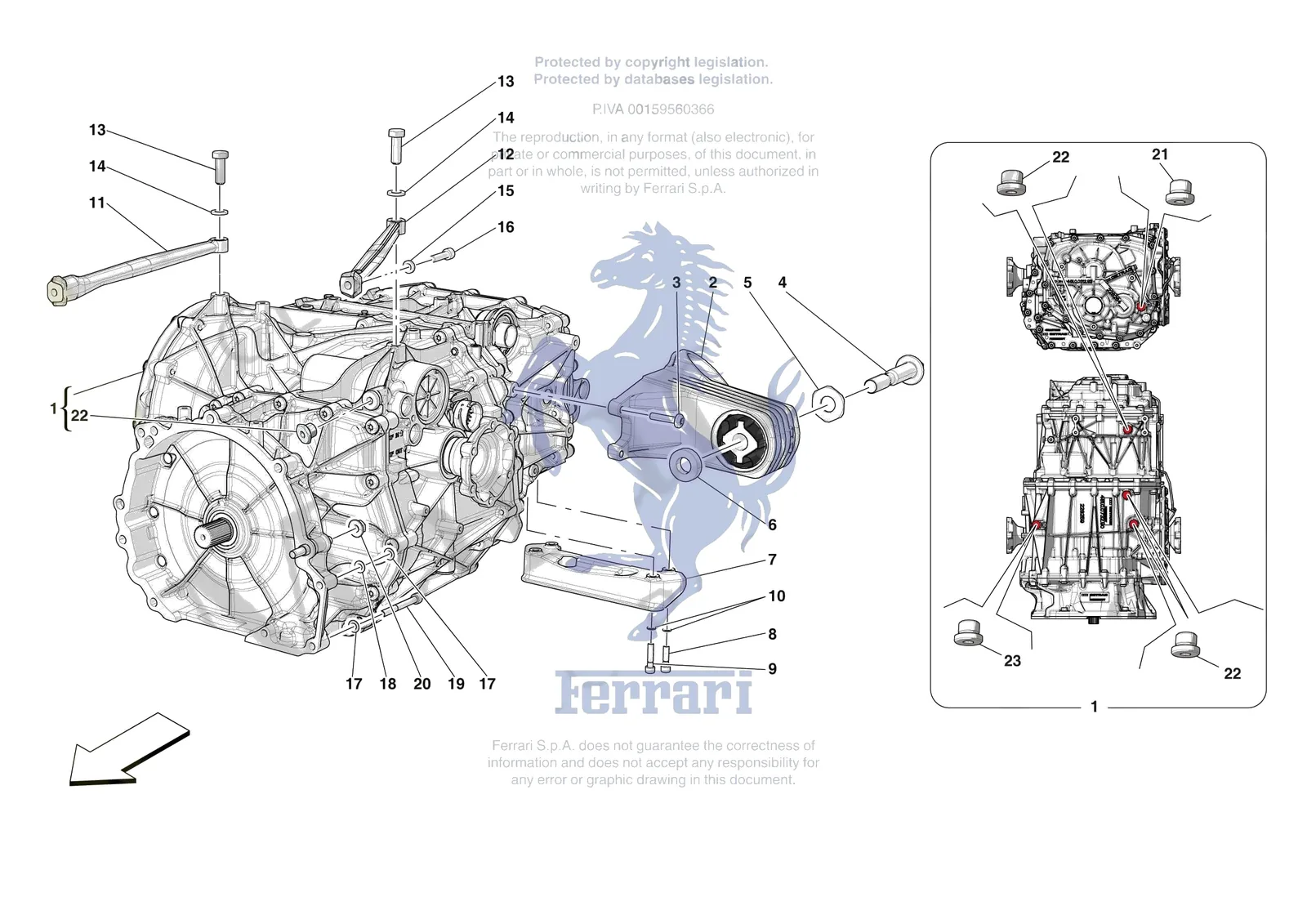

Exploded view of the [gearbox] - c.01.01 - gearbox and fasteners on the Ferrari Daytona SP3, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0040.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 263679 | Ferrari Plug - 263679 | $174.55 | Special order, ships in 7-14 days | |
| 14306521 | Ferrari Screw - 14306521 | Superseded | Order 14306524 instead | |
| 339207 | Ferrari Screw 8x30 - 339207 | $739.74 | Special order, ships in 7-14 days | |
| 339209 | Ferrari Screw 8x35 - 339209 | Price on request | Contact us for price and availability | |
| 14306426 | Ferrari Seat Retaining Bolt - 14306426 | Superseded | Order 14306524 instead | |
| 10520001 | Ferrari Washer - 10520001 | Superseded | Order 10520024 instead | |
| 10520021 | Ferrari Washer - 10520021 | Superseded | Order 10520024 instead | |
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead | |
| 1 | 823550 | Ferrari Compl. Dct Gearbox - 823550 | $66,966.29 | Contact us to order |
| 2 | 281697 | Ferrari LH Rear Gearbox Strut Complete - 281697 | $493.10 | Special order, ships in 7-14 days |
| 2 | 281698 | Ferrari RH Rear Gearbox Strut Complete - 281698 | $493.10 | Special order, ships in 7-14 days |
| 3 | 247857 | Ferrari Screw 8x35 - 247857 | $4.12 | Available, ships in 3-6 days |
| 4 | 288633 | Ferrari Gearbox Mounting Bush Pin - 288633 | $295.03 | Special order, ships in 7-14 days |
| 5 | 304412 | Ferrari Hexagonal Anti-Rotation Washer - 304412 | $61.45 | Special order, ships in 7-14 days |
| 6 | 288634 | Ferrari DCT Gearbox Bushing Shim - 288634 | $31.93 | Special order, ships in 7-14 days |
| 7 | 290545 | Ferrari Rear Bumper Bracket - 290545 | $835.97 | Special order, ships in 7-14 days |
| 8 | 747199 | Ferrari Screw 8x30 - 747199 | Superseded | Order 339207 instead |
| 9 | 747201 | Ferrari Screw 8x35 - 747201 | Price on request | Contact us for price and availability |
| 10 | 12642724 | Ferrari Washer - 12642724 | $0.50 | Special order, ships in 7-14 days |
| 11 | 841389 | Ferrari RH Tie-Rod - 841389 | $1,352.32 | Special order, ships in 7-14 days |
| 12 | 841392 | Ferrari LH Tie-Rod - 841392 | $1,352.32 | Special order, ships in 7-14 days |
| 14 | 10520024 | Ferrari Washer - 10520024 | $4.35 | Available, ships in 3-6 days |
| 15 | 12648424 | Ferrari Washer - 12648424 | $3.68 | Available, ships in 3-6 days |
| 16 | 14306524 | Ferrari Screw M8 x 30mm - 14306524 | $0.65 | Available, ships in 3-6 days |
| 17 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 18 | 12638524 | Ferrari Flat Washer 8.15x15x1.5 - 12638524 | $0.12 | Available, ships in 3-6 days |
| 19 | 16044624 | Ferrari Screw M8 x 70 - 16044624 | $0.73 | Available, ships in 3-6 days |
| 20 | 14059421 | Ferrari Flanged Nut 10x1.25 - 14059421 | $0.92 | Available, ships in 3-6 days |
| 21 | 70005055 | Ferrari Gl5 Oil Level Cap - 70005055 | $88.49 | Special order, ships in 7-14 days |
| 22 | 70004679 | Ferrari Screw Plug - 70004679 | $36.86 | Available, ships in 3-6 days |
| 23 | 70005056 | Ferrari Atf Oil Level Cap - 70005056 | $27.03 | Special order, ships in 7-14 days |
