Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES (diagram 0049)

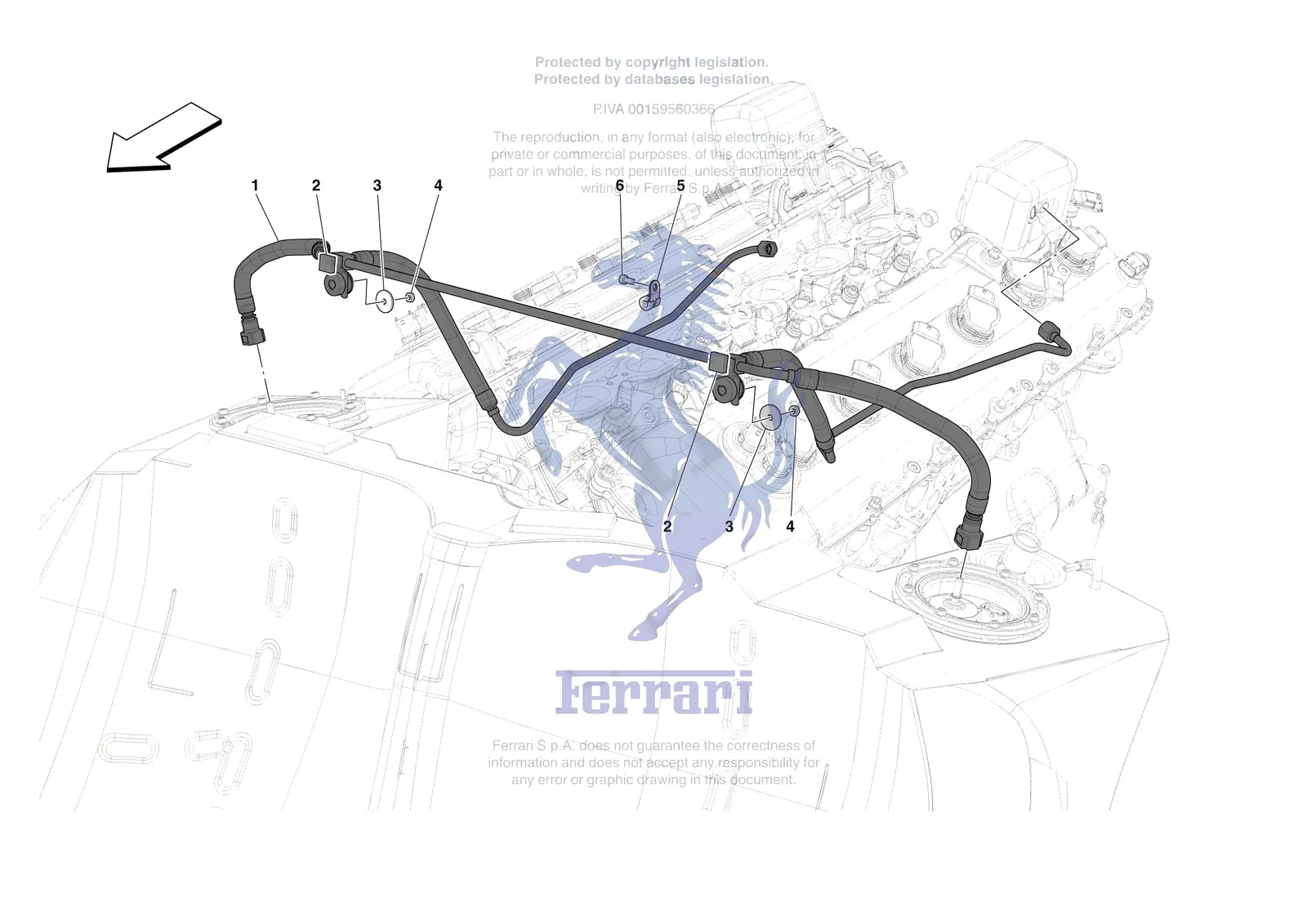

Exploded view of the [mechanical system] - d.02 - engine fuel delivery pipes on the Ferrari Daytona SP3, with 7 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0049.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 15896421 | Ferrari Nut - 15896421 | Superseded | Order 15896470 instead | |
| 1 | 870994 | Ferrari Fuel Delivery Pipe - 870994 | $3,184.73 | Special order, ships in 7-14 days |
| 2 | 320266 | Ferrari Pad - 320266 | $3.41 | Special order, ships in 7-14 days |
| 3 | 12624178 | Ferrari Washer D. 5.45 - 22 x 2 - 12624178 | $0.71 | Available, ships in 3-6 days |
| 4 | 15896470 | Ferrari RH Thread Nut M5 x 4 - 15896470 | $14.30 | Available, ships in 3-6 days |
| 5 | 295192 | Ferrari Bracket With Sheath - 295192 | $45.87 | Special order, ships in 7-14 days |
| 6 | 14305124 | Ferrari Screw M6 x 12 - 14305124 | $0.79 | Available, ships in 3-6 days |
