Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS (diagram 0051)

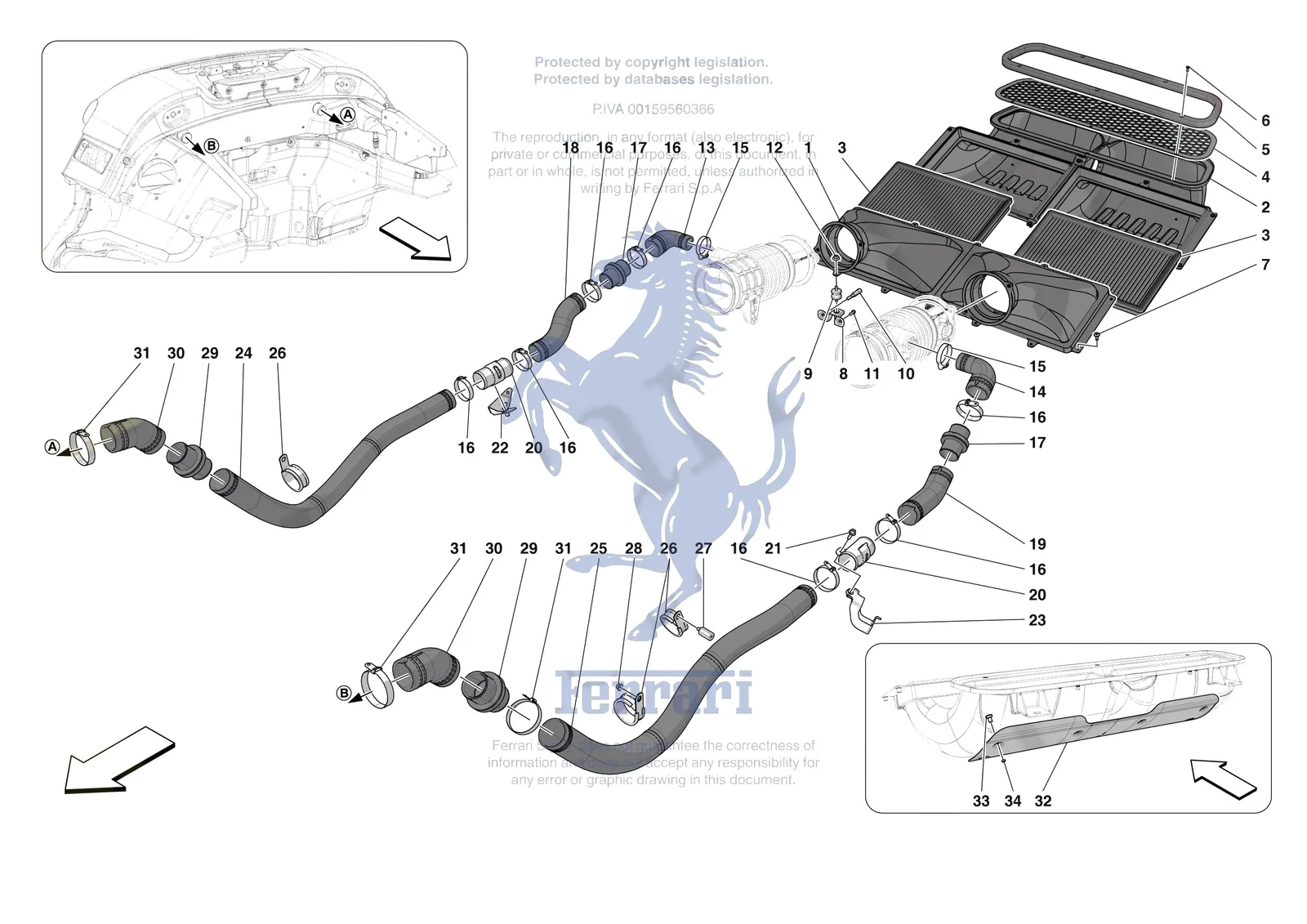

Exploded view of the [mechanical system] - d.04.01 - air filter air intake and ducts on the Ferrari Daytona SP3, with 43 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0051.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 291689 | Ferrari Air Filter - 291689 | Superseded | Order 812789 instead | |
| 842754 | Ferrari Air Filter Element - 842754 | Superseded | Order 812789 instead | |
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 1 | 800831 | Ferrari Filter Box Cover - 800831 | $12,249.56 | Special order, ships in 7-14 days |
| 2 | 747293 | Ferrari AIR FILTER BOX - 747293 | Price on request | Contact us for price and availability |
| 3 | 802766 | Ferrari Air Filter - 802766 | $327.81 | Available, ships in 3-6 days |
| 3 | 812789 | Ferrari Air Filter - 812789 | $298.98 | In stock |
| 3 | 916868 | Ferrari Air Filter - 916868 | Superseded | Order 802766 instead |
| 3 | 916869 | Ferrari Air Filter - 916869 | Superseded | Order 812789 instead |
| 4 | 810985 | Ferrari DRILLED INTAKE MESH - 810985 | $4,210.66 | Special order, ships in 7-14 days |
| 5 | 903000 | Ferrari ADHESIVE FOAM - 903000 | Price on request | Contact us for price and availability |
| 6 | 904017 | Ferrari SCREW - 904017 | Price on request | Contact us for price and availability |
| 7 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 8 | 250755 | Ferrari Bracket - 250755 | $110.61 | Special order, ships in 7-14 days |
| 9 | 285553 | Ferrari Vibration Damper - 285553 | $36.00 | In stock |
| 10 | 208765 | Ferrari Stud Bolt - 208765 | $12.21 | Available, ships in 3-6 days |
| 11 | 302655 | Ferrari Ergal Screw 6X20 - 302655 | $21.37 | Special order, ships in 7-14 days |
| 12 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 12 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 13 | 832789 | Ferrari RH Pipe From Intake To Disco - 832789 | $467.15 | Special order, ships in 7-14 days |
| 14 | 832787 | Ferrari LH Pipe From Intake To Disco - 832787 | $467.15 | Special order, ships in 7-14 days |
| 15 | 296780 | Ferrari Hose Clamp 25 to 40mm - 296780 | $17.02 | Special order, ships in 7-14 days |
| 16 | 262114 | Ferrari Collar - 262114 | $2.38 | Available, ships in 3-6 days |
| 17 | 918987 | Ferrari Tubo Porta Membrana Cpl Foro - 918987 | $145.03 | Special order, ships in 7-14 days |
| 18 | 832869 | Ferrari RH Hose - 832869 | $442.56 | Special order, ships in 7-14 days |
| 19 | 832854 | Ferrari LH Hose - 832854 | $442.56 | Special order, ships in 7-14 days |
| 20 | 834529 | Ferrari Door - Sound Generator Conne - 834529 | $233.56 | Special order, ships in 7-14 days |
| 21 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 22 | 834526 | Ferrari Resonator Pipe Mounting Brac - 834526 | $83.57 | Special order, ships in 7-14 days |
| 23 | 834524 | Ferrari Resonator Pipe Mounting Brac - 834524 | $86.04 | Special order, ships in 7-14 days |
| 24 | 833749 | Ferrari Coiled Pipe - 833749 | $344.21 | Special order, ships in 7-14 days |
| 25 | 833743 | Ferrari Coiled Pipe - 833743 | $368.79 | Special order, ships in 7-14 days |
| 26 | 175119 | Ferrari Bracket With Sheath - 175119 | $11.29 | Special order, ships in 7-14 days |
| 27 | 85376900 | Ferrari Stud Bolt - 85376900 | $22.60 | Special order, ships in 7-14 days |
| 28 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 29 | 786536 | Ferrari Membrane Holder Pipe - 786536 | $145.03 | Special order, ships in 7-14 days |
| 30 | 833195 | Ferrari Rollbar Hose - 833195 | $442.56 | Special order, ships in 7-14 days |
| 31 | 262116 | Ferrari Collar - 262116 | $6.10 | Available, ships in 3-6 days |
| 32 | 746655 | Ferrari FILTER BOX HEAT SHIELD - 746655 | Price on request | Contact us for price and availability |
| 33 | 820578 | Ferrari SCREW - 820578 | Price on request | Contact us for price and availability |
| 34 | 783586 | Ferrari NUT - 783586 | Price on request | Contact us for price and availability |
| 35 | 14054577 | Ferrari Domed Nut - 14054577 | $0.59 | Available, ships in 3-6 days |
| 36 | 12644478 | Ferrari Washer D. 6.45 - 15 x 1 - 12644478 | Superseded | Order 85882600 instead |
