Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK (diagram 0058)

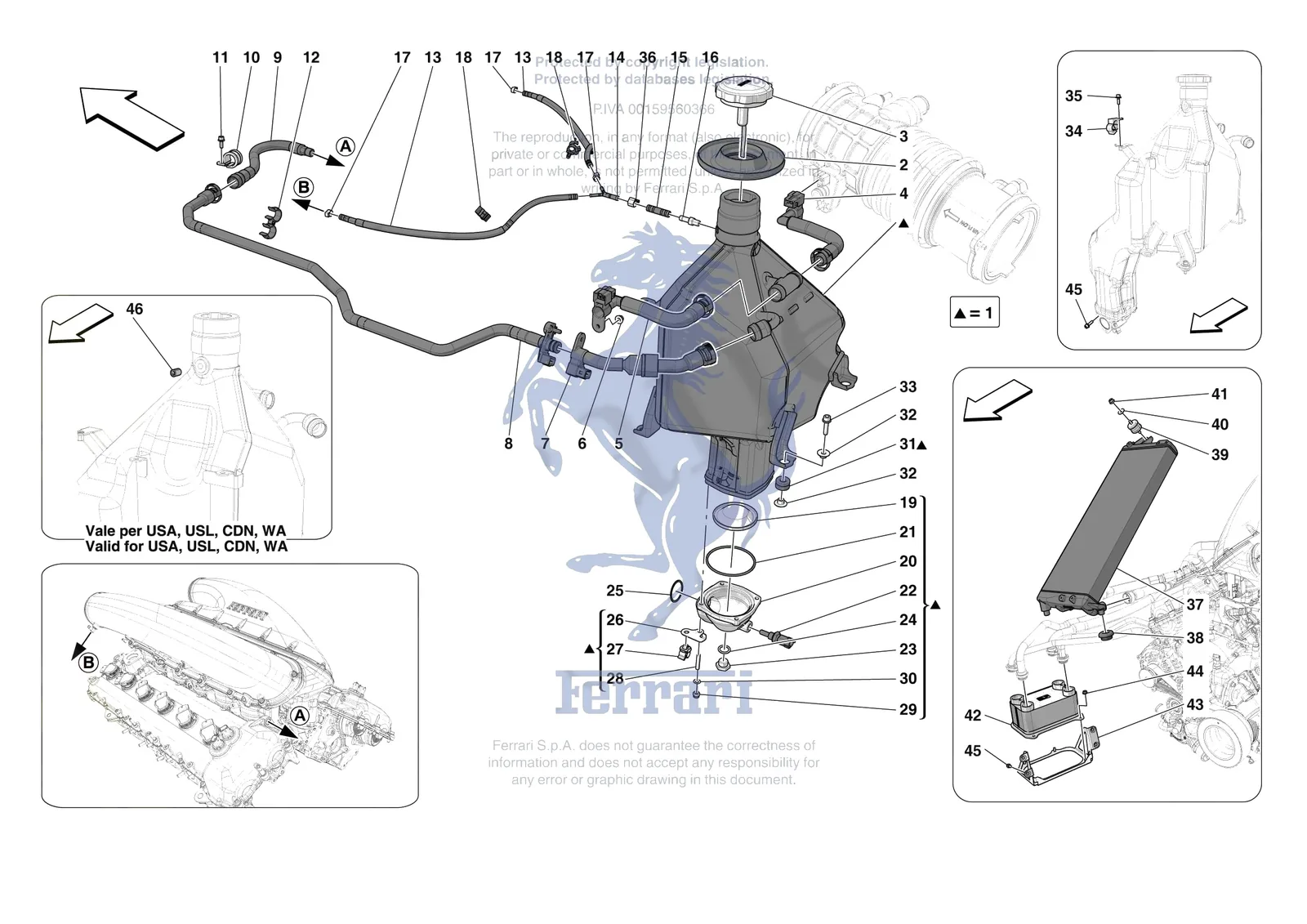

Exploded view of the [mechanical system] - d.09 - engine oil radiator and tank on the Ferrari Daytona SP3, with 63 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
1859749Ferrari Compl. Oil Tank - 859749$8,203.04Special order, ships in 7-14 days
2294022Ferrari Ring For Engine Oil Tank - 294022$86.04Special order, ships in 7-14 days
3950654Ferrari Cap Compl. With Dipstick - 950654$639.27Special order, ships in 7-14 days
4859721Ferrari RH Blow-By Pipe - 859721$236.02Special order, ships in 7-14 days
4895228Ferrari RH Blow-By Pipe - 895228$319.62Special order, ships in 7-14 days
5859695Ferrari LH Blow-By Pipe - 859695$236.02Special order, ships in 7-14 days
5895222Ferrari LH Blow-By Pipe - 895222$319.62Special order, ships in 7-14 days
614040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
7948486Ferrari Compl. Rear Vapour Pipe From - 948486$1,426.08Special order, ships in 7-14 days
7948478Ferrari COMPL. REAR VAPOUR PIPE FROM HEADS - 948478Price on requestContact us for price and availability
8895219Ferrari Compl. Front Vapour Pipe Fro - 895219$491.74Special order, ships in 7-14 days
8914015Ferrari Compl. Front Vapour Pipe Fro - 914015$442.56Special order, ships in 7-14 days
9910462Ferrari Vapour Pipe From Front Heads - 910462$835.97Special order, ships in 7-14 days
1010441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock
11797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
12292861Ferrari Clip - 292861$2.38Special order, ships in 7-14 days
13823315Ferrari Vent Pipe - 823315$120.46Special order, ships in 7-14 days
14258855Ferrari 3-Way Union - 258855$87.40Special order, ships in 7-14 days
15823317Ferrari 3-Way Rubber Pipe - 823317$31.93Special order, ships in 7-14 days
16811416Ferrari Threaded Connector - 811416$51.62Special order, ships in 7-14 days
1713432470Ferrari Hose Collar - 13432470$3.03Special order, ships in 7-14 days
18310112Ferrari Clip - 310112$1.30Special order, ships in 7-14 days
19100332Ferrari Sump Filter - 100332$37.13Available, ships in 3-6 days
20781688Ferrari OIL TANK PICKUP - 781688Price on requestContact us for price and availability
21125521Ferrari/Maserati Oil Tank O-Ring - 125521$13.20In stock
22180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
2310300711Ferrari Threaded Drain Plug - 10300711$4.59In stock
2410257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
25862084Ferrari Gasket - 862084$7.84Available, ships in 3-6 days
26801727Ferrari BRACKET ON PICKUP - 801727Price on requestContact us for price and availability
27250318Ferrari Clip - 250318$0.50Special order, ships in 7-14 days
2811500424Ferrari Stud M6 x 9 Gambo 20 - 11500424$1.04Available, ships in 3-6 days
2811500524Ferrari Stud Bolt M6 x 9 Gambo 22 - 11500524$0.73Available, ships in 3-6 days
29102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
3012601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
31177576Ferrari Cable Grommet - 177576$4.12Available, ships in 3-6 days
32183898Ferrari Bush - 183898$5.44Special order, ships in 7-14 days
33231620Ferrari/Maserati Screw - 231620$0.58In stock
3410450390Ferrari Bracket with Sheath D.14mm - 10450390$4.35Special order, ships in 7-14 days
34159521Ferrari Cable Retaining Clip - 159521$3.68Available, ships in 3-6 days
35256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
3613125070Ferrari Clamp - 13125070$1.74Special order, ships in 7-14 days
37767095Ferrari Oil Cooling Radiator - 767095$3,788.88Special order, ships in 7-14 days
38307674Ferrari Radiator Mounting Bush - 307674$12.99Special order, ships in 7-14 days
39271472Ferrari Plug - 271472$22.60Special order, ships in 7-14 days
4012647024Ferrari Washer - 12647024$1.02Available, ships in 3-6 days
4114040711Ferrari Nut M8 - 14040711$0.79Available, ships in 3-6 days
42286140Ferrari Oil/Water Heat Exchanger - 286140$1,770.31Special order, ships in 7-14 days
43789441Ferrari Heat Exchanger Bracket - 789441$194.22Special order, ships in 7-14 days
4414040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
45231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
4614326101Ferrari Threaded Connector - 14326101$2.38Special order, ships in 7-14 days
