Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM (diagram 0062)

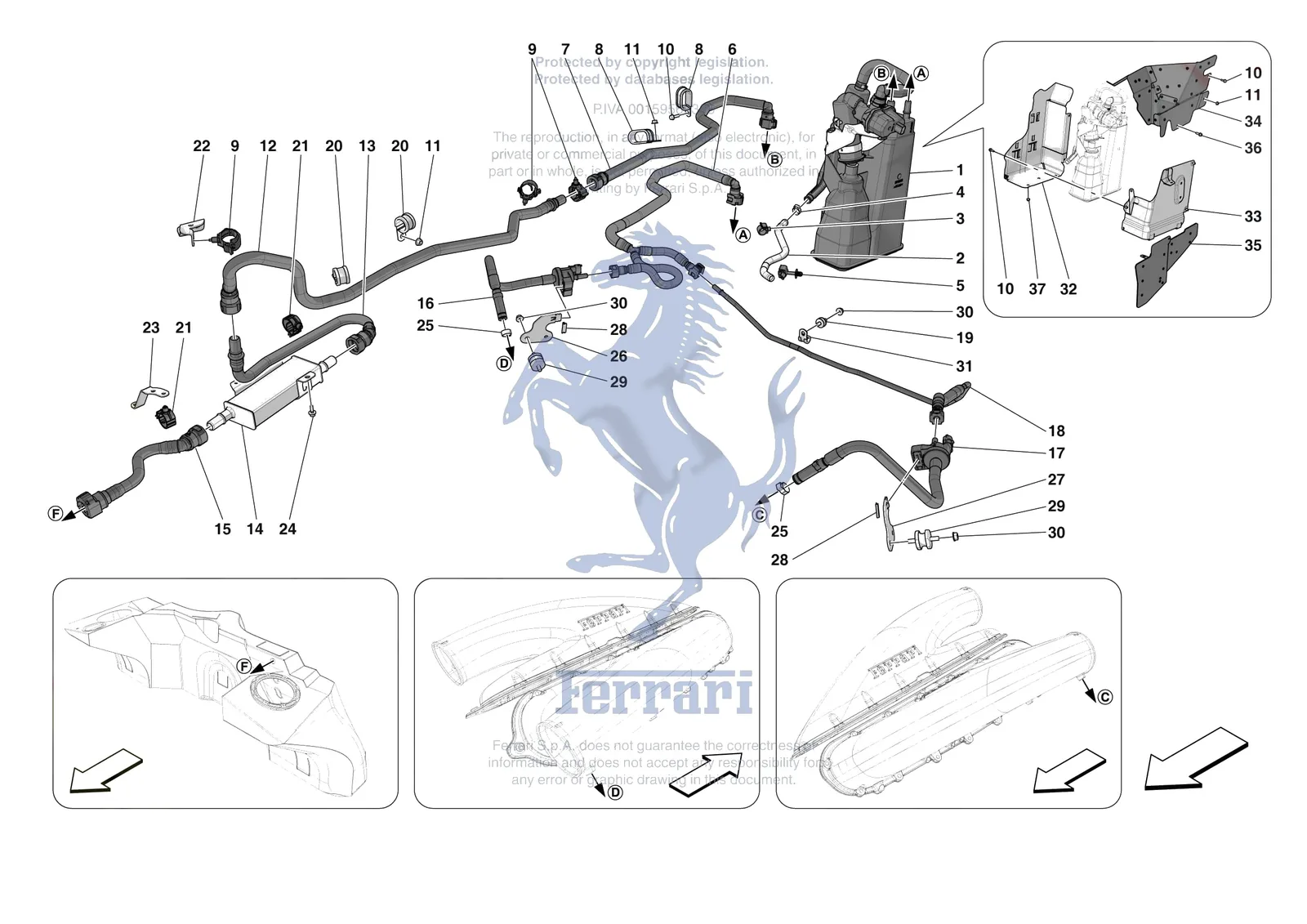

Exploded view of the [mechanical system] - d.13 - evaporative emissions control system on the Ferrari Daytona SP3, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0062.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 198253 | Ferrari Clip - 198253 | $7.40 | Special order, ships in 7-14 days | |
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 1 | 895474 | Ferrari Compl. Vapour Filter - 895474 | $1,639.19 | Special order, ships in 7-14 days |
| 2 | 912438 | Ferrari Obd Air Filter Inlet Pipe - 912438 | $196.67 | Special order, ships in 7-14 days |
| 3 | 206536 | Ferrari Clip D.14 - 206536 | $0.92 | Special order, ships in 7-14 days |
| 4 | 10716470 | Ferrari Collar - 10716470 | $2.59 | Available, ships in 3-6 days |
| 5 | 878898 | Ferrari Clip - 878898 | $5.65 | Special order, ships in 7-14 days |
| 6 | 870971 | Ferrari Canister-Valve Flush Pipe - 870971 | $590.08 | Special order, ships in 7-14 days |
| 7 | 870970 | Ferrari Vapour Separator Pipe - 870970 | $238.47 | Special order, ships in 7-14 days |
| 8 | 305726 | Ferrari Bracket - 305726 | $8.82 | Special order, ships in 7-14 days |
| 9 | 322519 | Ferrari CLIP - 322519 | Price on request | Contact us for price and availability |
| 10 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 11 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 12 | 870969 | Ferrari Pipe From Separator To Vapou - 870969 | $368.79 | Special order, ships in 7-14 days |
| 13 | 870968 | Ferrari Canister Vapour Separator Pi - 870968 | $154.89 | Special order, ships in 7-14 days |
| 14 | 863591 | Ferrari Aluminium Vapour Separator - 863591 | $491.74 | Special order, ships in 7-14 days |
| 15 | 764233 | Ferrari Fuel Tank-Vapour Separator P - 764233 | $204.05 | Special order, ships in 7-14 days |
| 16 | 870973 | Ferrari RH Flush Valve Pipe - 870973 | $393.38 | Special order, ships in 7-14 days |
| 17 | 870974 | Ferrari LH Flush Valve Pipe - 870974 | $393.38 | Special order, ships in 7-14 days |
| 18 | 870972 | Ferrari Evap. Control System Pipe Fr - 870972 | $240.94 | Special order, ships in 7-14 days |
| 19 | 225408 | Ferrari Cylindrical Bushing - 225408 | $12.99 | Special order, ships in 7-14 days |
| 20 | 937614 | Ferrari Bracket With Sheath - 937614 | $8.34 | Special order, ships in 7-14 days |
| 21 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 22 | 868666 | Ferrari Vapour Pipe Bracket - 868666 | $76.19 | Special order, ships in 7-14 days |
| 23 | 834490 | Ferrari Fuel Tank - Separator Pipe B - 834490 | $73.73 | Special order, ships in 7-14 days |
| 24 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 25 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 26 | 741010 | Ferrari RH Valve Bracket - 741010 | $23.82 | Special order, ships in 7-14 days |
| 27 | 741016 | Ferrari LH Valve Bracket - 741016 | $23.82 | Special order, ships in 7-14 days |
| 28 | 86705100 | Ferrari Clip - 86705100 | $4.77 | Special order, ships in 7-14 days |
| 29 | 195373 | Ferrari Rubber Support Pad - 195373 | $29.48 | Available, ships in 3-6 days |
| 30 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 31 | 10441190 | Ferrari P clip Bracket With Sheath D8mm - 10441190 | $0.90 | Available, ships in 3-6 days |
| 32 | 870501 | Ferrari Canister Mounting Bracket - 870501 | $270.44 | Special order, ships in 7-14 days |
| 33 | 870502 | Ferrari Canister - Chassis Bracket - 870502 | $344.21 | Special order, ships in 7-14 days |
| 34 | 919688 | Ferrari Guard - 919688 | $639.27 | Special order, ships in 7-14 days |
| 35 | 920317 | Ferrari Canister Shield - 920317 | $442.56 | Special order, ships in 7-14 days |
| 36 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 37 | 897207 | Ferrari Nut - 897207 | $18.32 | Special order, ships in 7-14 days |
