Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS (diagram 0063)

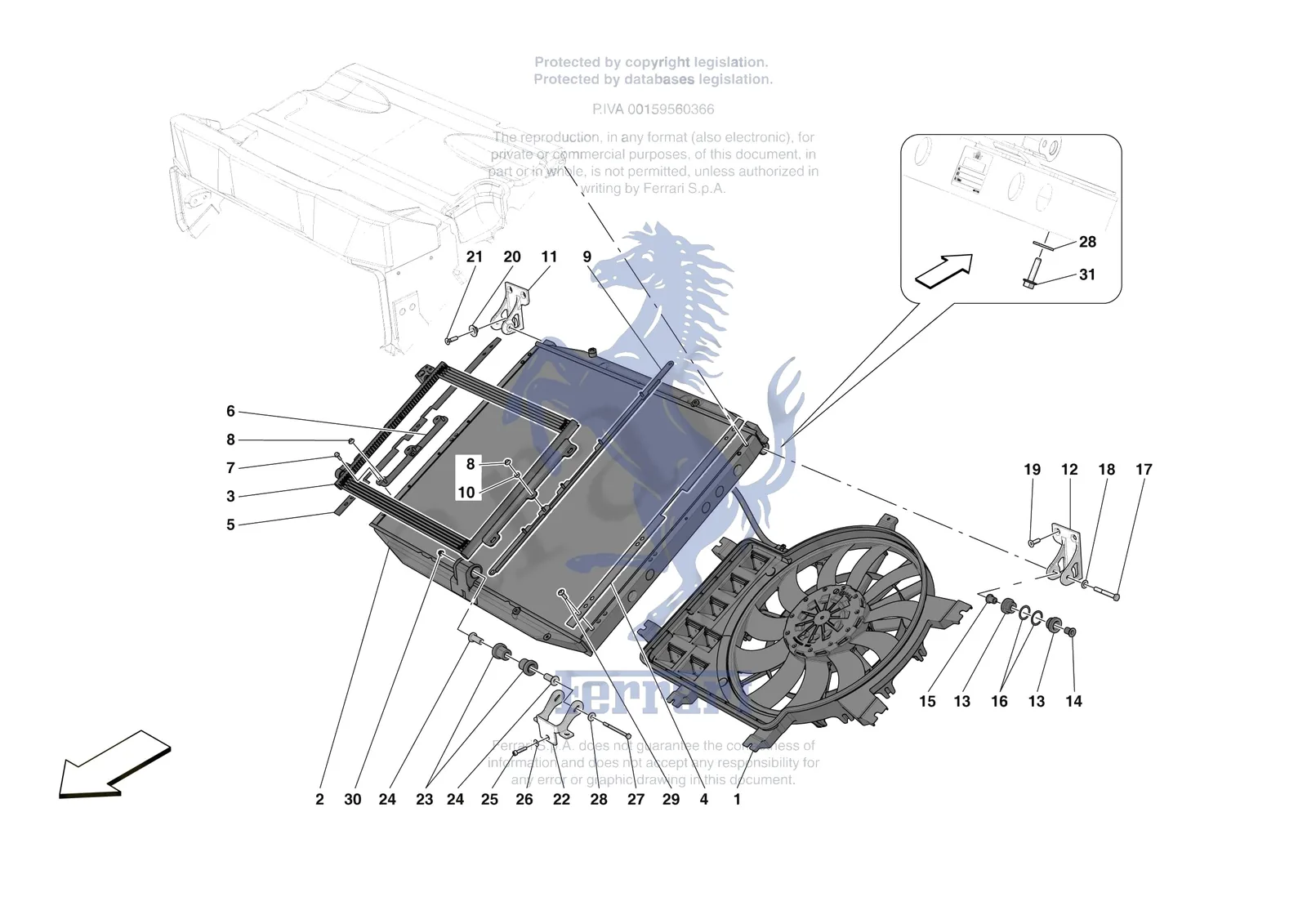

Exploded view of the [mechanical system] - d.14 - engine cooling system radiators on the Ferrari Daytona SP3, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0063.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 67190100 | Ferrari Nut - 67190100 | Superseded | Order 194031 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 811404 | Ferrari Fan Cowl - 811404 | $3,690.53 | Special order, ships in 7-14 days |
| 2 | 804989 | Ferrari Water Radiator - 804989 | $13,570.29 | Special order, ships in 7-14 days |
| 3 | 262836 | Ferrari A/C Condenser - 262836 | $1,308.23 | Available, ships in 3-6 days |
| 4 | 336073 | Ferrari RH Radiator Duct Foam - 336073 | $31.93 | Special order, ships in 7-14 days |
| 5 | 336072 | Ferrari LH Radiator Duct Foam - 336072 | $31.93 | Special order, ships in 7-14 days |
| 6 | 329636 | Ferrari Ac Condenser Mounting Bracke - 329636 | $194.22 | Special order, ships in 7-14 days |
| 7 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 8 | 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead |
| 9 | 334240 | Ferrari Coil Mount - 334240 | $194.22 | Special order, ships in 7-14 days |
| 10 | 334854 | Ferrari Spacer - 334854 | $30.57 | Special order, ships in 7-14 days |
| 11 | 784503 | Ferrari RH Fork - 784503 | $1,598.19 | Special order, ships in 7-14 days |
| 12 | 784502 | Ferrari LH Fork - 784502 | $1,598.19 | Special order, ships in 7-14 days |
| 13 | 338511 | Ferrari Short Bush - 338511 | $78.66 | Special order, ships in 7-14 days |
| 14 | 331298 | Ferrari Bushing - 331298 | $68.83 | Special order, ships in 7-14 days |
| 15 | 331799 | Ferrari Radiator Mounting Rubber Bus - 331799 | $90.95 | Special order, ships in 7-14 days |
| 16 | 333054 | Ferrari Shim - 333054 | $4.56 | Special order, ships in 7-14 days |
| 17 | 268567 | Ferrari Screw TE M8 x 60 - 268567 | $10.91 | Special order, ships in 7-14 days |
| 18 | 14496524 | Ferrari Washer - 14496524 | $0.19 | Available, ships in 3-6 days |
| 19 | 331282 | Ferrari Screw - 331282 | $15.05 | Special order, ships in 7-14 days |
| 20 | 796131 | Ferrari Fork Bush - 796131 | $162.25 | Special order, ships in 7-14 days |
| 21 | 14442234 | Ferrari Screw - 14442234 | $3.26 | Special order, ships in 7-14 days |
| 22 | 888546 | Ferrari Mounting Bracket - 888546 | $76.19 | Special order, ships in 7-14 days |
| 23 | 197584 | Ferrari Rubber Bushing - 197584 | $5.44 | Available, ships in 3-6 days |
| 24 | 282780 | Ferrari Radiator Fastener Bush - 282780 | $36.86 | Special order, ships in 7-14 days |
| 25 | 14305477 | Ferrari Screw - 14305477 | $2.01 | Special order, ships in 7-14 days |
| 26 | 12644424 | Ferrari Washer 6.15-15 x 1 - 12644424 | $0.12 | Available, ships in 3-6 days |
| 27 | 832324 | Ferrari Screw - 832324 | $12.21 | Special order, ships in 7-14 days |
| 28 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 29 | 85629300 | Ferrari Screw M6 x 20 - 85629300 | $1.17 | Available, ships in 3-6 days |
| 30 | 194031 | Ferrari Flanged Nut M6 x 20 - 194031 | $1.21 | Available, ships in 3-6 days |
| 30 | 132877 | Ferrari Nut - 132877 | Superseded | Order 194031 instead |
| 31 | 16285227 | Ferrari Screw M5 x 20 - 16285227 | $0.59 | Available, ships in 3-6 days |
