Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES (diagram 0065)

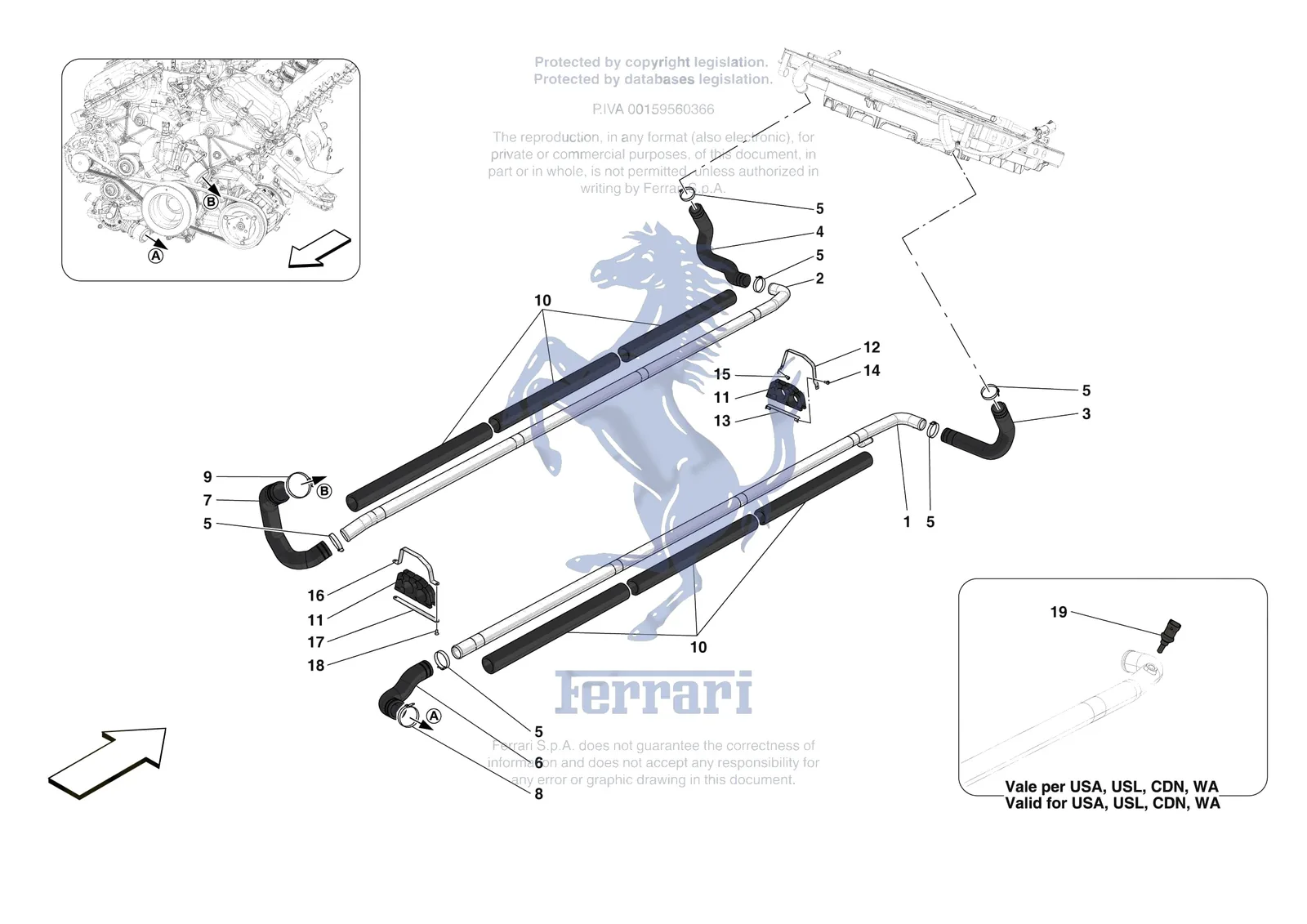

Exploded view of the [mechanical system] - d.16 - cooling system pipes on the Ferrari Daytona SP3, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0065.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10861470 | Ferrari Collar - 10861470 | Superseded | Order 262383 instead | |
| 10861570 | Ferrari Collar - 10861570 | Superseded | Order 262383 instead | |
| 1 | 951188 | Ferrari Water Return Pipe - 951188 | $811.38 | Special order, ships in 7-14 days |
| 2 | 951186 | Ferrari Water Delivery Pipe - 951186 | $565.49 | Special order, ships in 7-14 days |
| 2 | 951187 | Ferrari Water Delivery Pipe - 951187 | $983.50 | Special order, ships in 7-14 days |
| 3 | 869673 | Ferrari Radiator Hose - 869673 | $204.05 | Special order, ships in 7-14 days |
| 4 | 869680 | Ferrari Radiator - Underbody Pipe Ho - 869680 | $216.35 | Special order, ships in 7-14 days |
| 5 | 262114 | Ferrari Collar - 262114 | $2.38 | Available, ships in 3-6 days |
| 6 | 869672 | Ferrari Water Return Hose - 869672 | $154.89 | Special order, ships in 7-14 days |
| 7 | 869674 | Ferrari Water Delivery Hose - 869674 | $295.03 | Special order, ships in 7-14 days |
| 8 | 262116 | Ferrari Collar - 262116 | $6.10 | Available, ships in 3-6 days |
| 9 | 262383 | Ferrari Collar - 262383 | $6.10 | Available, ships in 3-6 days |
| 10 | 293041 | Ferrari Insulated Pipe - 293041 | $29.48 | Special order, ships in 7-14 days |
| 11 | 773400 | Ferrari Fastener Block For Underbody - 773400 | $127.82 | Special order, ships in 7-14 days |
| 12 | 296126 | Ferrari Upper Bracket For Underbody Pillory Block - 296126 | $51.62 | Special order, ships in 7-14 days |
| 13 | 296125 | Ferrari Lower Bracket For Underbody Pillory Block - 296125 | $46.69 | Special order, ships in 7-14 days |
| 14 | 249161 | Ferrari Screw 5M - 249161 | $7.15 | Special order, ships in 7-14 days |
| 15 | 14301424 | Ferrari Screw 5X8 - 14301424 | $0.82 | Special order, ships in 7-14 days |
| 16 | 303492 | Ferrari Bracket - 303492 | $81.11 | Special order, ships in 7-14 days |
| 17 | 303491 | Ferrari Bracket - 303491 | $31.93 | Special order, ships in 7-14 days |
| 18 | 14440621 | Ferrari Screw - 14440621 | $1.17 | Special order, ships in 7-14 days |
| 19 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
