Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.20 - PEDAL BOARD (diagram 0069)

Exploded view of the [mechanical system] - d.20 - pedal board on the Ferrari Daytona SP3, with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

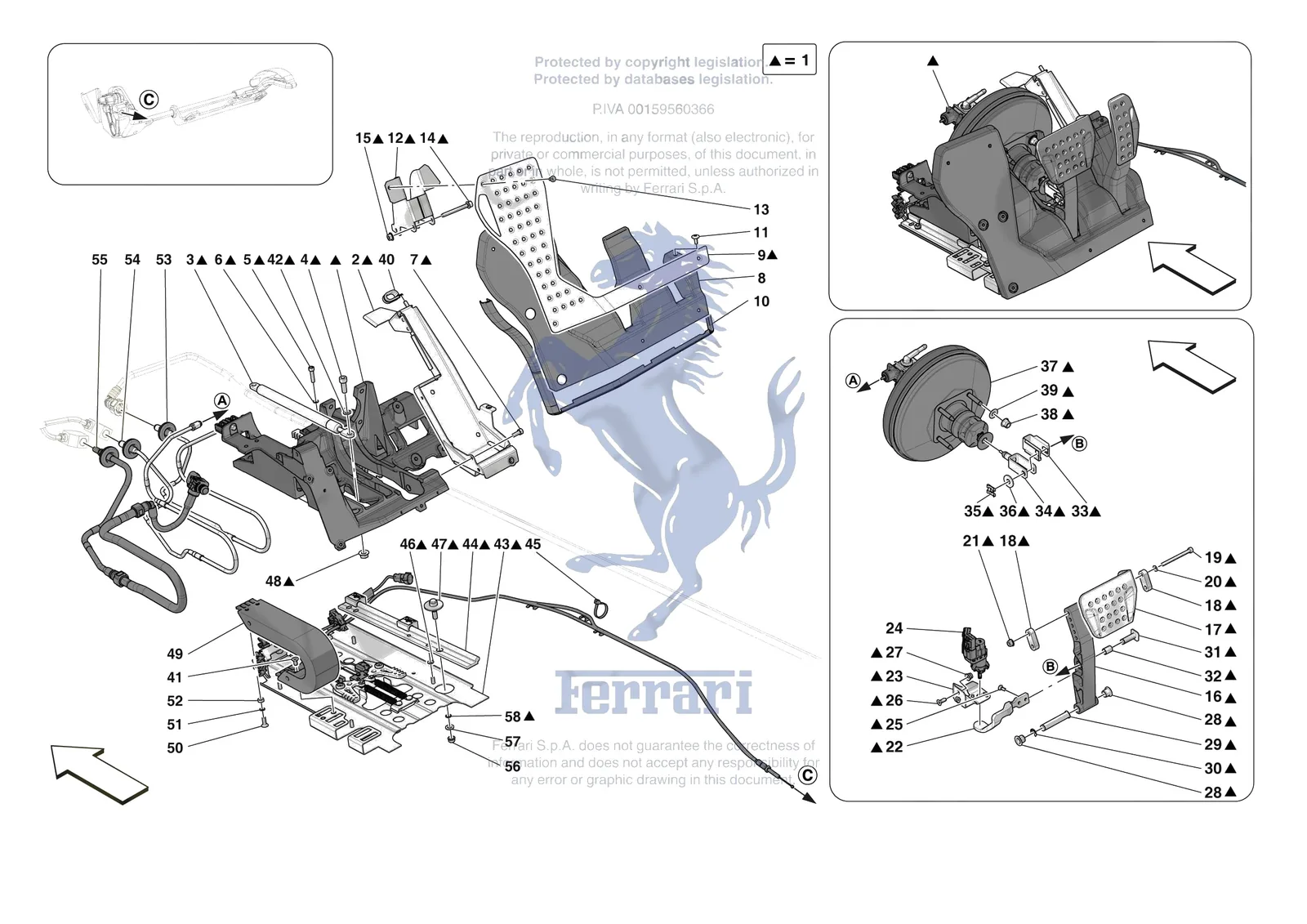

Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.20 - PEDAL BOARD exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
303403Ferrari MC1 Ecu Brake Pump Pipe - 303403SupersededOrder 303404 instead
303401Ferrari MC2 Ecu Brake Pump Pipe - 303401SupersededOrder 303402 instead
64342800Ferrari Nut - 64342800SupersededOrder 177778 instead
133215Ferrari Nut Locking - 133215SupersededOrder 177778 instead
14440727Ferrari Screw - 14440727SupersededOrder 14440734 instead
14441127Ferrari Screw - 14441127$1.15Available, ships in 3-6 days
1851344Ferrari COMPL. MOBILE PEDAL BOARD - 851344Price on requestContact us for price and availability
2840596Ferrari Mounting Bracket - 840596$2,294.87Special order, ships in 7-14 days
3298681Ferrari Air Spring - 298681$120.46Special order, ships in 7-14 days
414359224Ferrari Screw 8 x 22 - 14359224$0.50Special order, ships in 7-14 days
514305424Ferrari Allen Screw M6 x 25mm - 14305424$0.12Available, ships in 3-6 days
612648224Ferrari Washer - 12648224$0.54Available, ships in 3-6 days
714305224Ferrari Screw 6x16 - 14305224$0.96Available, ships in 3-6 days
714305221Ferrari Screw M6 x 16 - 14305221$0.17Available, ships in 3-6 days
8889869Ferrari Pedal Board Cosmetic Trim - 889869$216.35Special order, ships in 7-14 days
9301055Ferrari Drilled Driver Side Footrest Plate - 301055$737.61Special order, ships in 7-14 days
10301085Ferrari Pedal Floor Scraper Seal - 301085$371.53Special order, ships in 7-14 days
11793794Ferrari Screw - 793794$14.84Special order, ships in 7-14 days
12288452Ferrari LH Footrest Bracket - 288452$835.97Special order, ships in 7-14 days
13312587Ferrari Screw M5 x 12 - 312587$1.49Available, ships in 3-6 days
1411569124Ferrari Screw - 11569124$3.03Special order, ships in 7-14 days
1514040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
16787303Ferrari Brake Pedal Shank - 787303$3,927.05Special order, ships in 7-14 days
17289404Ferrari Brake Pedal Cover - 289404$934.32Special order, ships in 7-14 days
17840614Ferrari BRAKE PEDAL COVER - 840614Price on requestContact us for price and availability
18187017Ferrari Spacer - 187017Price on requestContact us for price and availability
1914303924Ferrari Allen Screw M6 x 70 - 14303924$0.71Special order, ships in 7-14 days
2013579221Ferrari Washer 0.5mm - 13579221$1.02Available, ships in 3-6 days
2114058421Ferrari Nut M6 x 6 - 14058421$2.38Available, ships in 3-6 days
22825433Ferrari Inner Brake Sensor Actuator - 825433$4,367.30Special order, ships in 7-14 days
23804578Ferrari Pedal Board Centring Bracket - 804578$1,401.51Special order, ships in 7-14 days
24958694Ferrari Pushbutton Switch - 958694$51.62Available, ships in 3-6 days
2514440721Ferrari Screw - 14440721SupersededOrder 14440734 instead
2514440734Ferrari Screw TSEI M5 x 16 - 14440734$12.86Available, ships in 3-6 days
2614441324Ferrari Countersunk Allen Screw TSEI M6 x 16 - 14441324$0.52Available, ships in 3-6 days
2712578111Ferrari Flanged Nyloc Nut - 12578111$0.50Available, ships in 3-6 days
28284392Ferrari Bushing - 284392$368.79Special order, ships in 7-14 days
29288494Ferrari Brake Pedal Pivot Pin - 288494$393.38Special order, ships in 7-14 days
3016160976Ferrari Circlip - 16160976$0.17Special order, ships in 7-14 days
31245180Ferrari Pin - 245180$127.82Special order, ships in 7-14 days
32260639Ferrari Bushing - 260639$28.39Special order, ships in 7-14 days
33245179Ferrari Cage - 245179$39.31Special order, ships in 7-14 days
34245178Ferrari Brake Servo Linkage Yoke - 245178$120.46Special order, ships in 7-14 days
3511064176Ferrari Safety Clip - 11064176$5.65Available, ships in 3-6 days
36245181Ferrari Rubber Washer - 245181$15.49Special order, ships in 7-14 days
37244010Ferrari Brake Servo With Pump Complete LHD - 244010$1,092.79Special order, ships in 7-14 days
3812578211Ferrari Flanged Nyloc Nut - 12578211$0.57Special order, ships in 7-14 days
3912625224Ferrari Washer - 12625224$0.13Available, ships in 3-6 days
40303345Ferrari Bracket - 303345$76.19Special order, ships in 7-14 days
4114441234Ferrari Screw 6x12 - 14441234$0.34Available, ships in 3-6 days
4214499401Ferrari Washer - 14499401$0.54Available, ships in 3-6 days
4214499424Ferrari Washer - 14499424SupersededOrder 14499401 instead
43298474Ferrari Pedal Board Lock System - 298474Price on requestContact us for price and availability
44291389Ferrari Pedal Guide Complete - 291389$1,303.14Special order, ships in 7-14 days
45145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
45206739Ferrari Tear Clip - 206739$16.37Available, ships in 3-6 days
46301076Ferrari Special Stud Bolt - 301076$86.04Special order, ships in 7-14 days
4712639724Ferrari Washer - 12639724$0.08Available, ships in 3-6 days
4814059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
49288473Ferrari Hose Container Box - 288473$208.97Special order, ships in 7-14 days
50312590Ferrari Screw - 312590$5.86Available, ships in 3-6 days
51312589Ferrari Washer - 312589$13.74Special order, ships in 7-14 days
52312592Ferrari Nut M6 x 4 - 312592$5.21Special order, ships in 7-14 days
53303402Ferrari MC2 Ecu Brake Pump Pipe - 303402$2,201.19Special order, ships in 7-14 days
54303404Ferrari MC1 Ecu Brake Pump Pipe - 303404$2,154.37Special order, ships in 7-14 days
55903268Ferrari Compl. Brake Servo - Fender - 903268$762.20Special order, ships in 7-14 days
56177778Ferrari Nut Locking M8 x 7 - 177778$2.82Available, ships in 3-6 days
5712638524Ferrari Flat Washer 8.15x15x1.5 - 12638524$0.12Available, ships in 3-6 days
5814450581Ferrari Gasket - 14450581$7.19Special order, ships in 7-14 days

All Daytona SP3 diagrams
