Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES (diagram 0070)

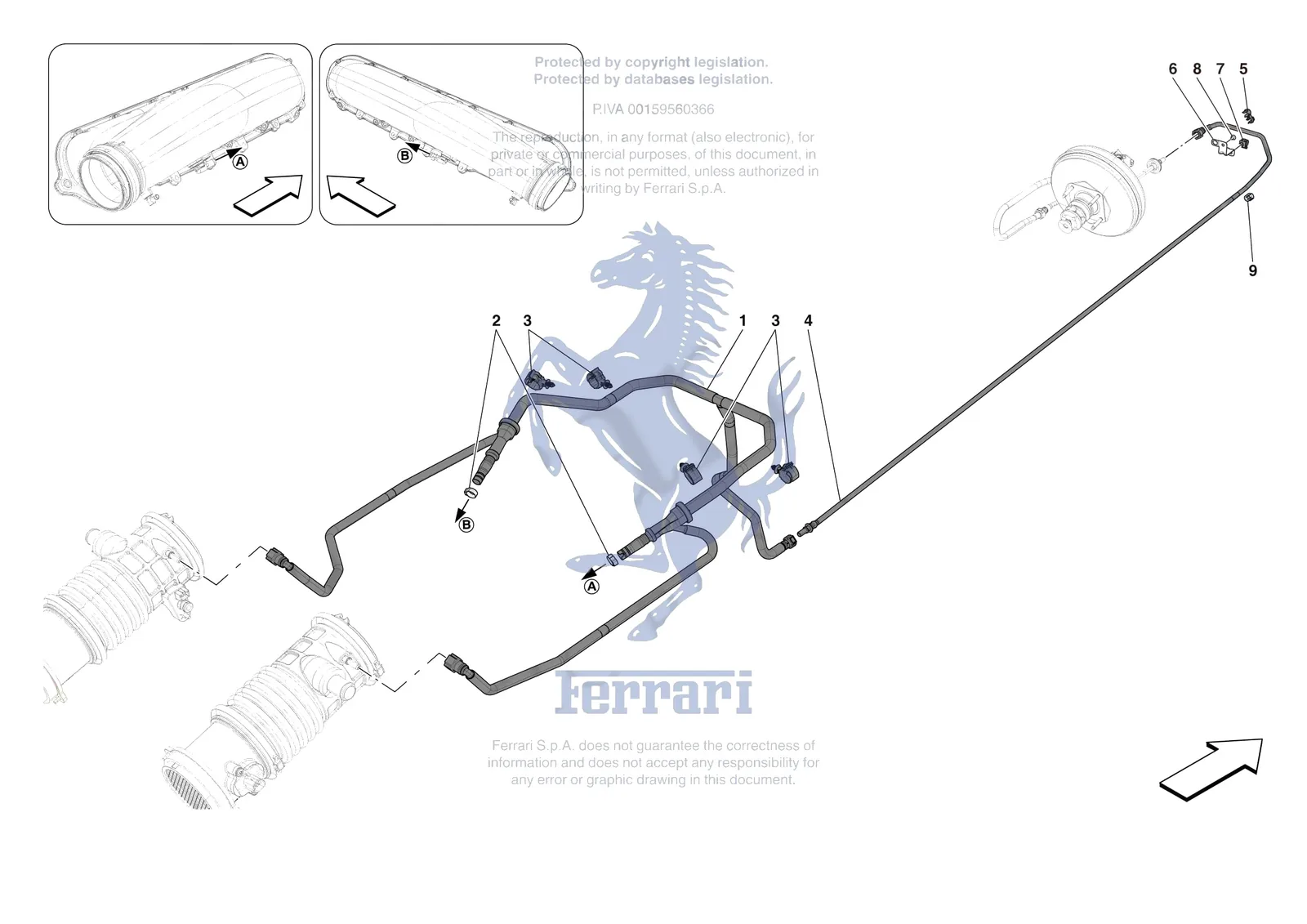

Exploded view of the [mechanical system] - d.21 - servo brake pipes on the Ferrari Daytona SP3, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0070.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 818917 | Ferrari Compl. Brake Servo Pipe - 818917 | $835.97 | Special order, ships in 7-14 days |
| 2 | 13434670 | Ferrari Screw Collar D16.2mm - 13434670 | $1.44 | Available, ships in 3-6 days |
| 3 | 779282 | Ferrari Compl. Clip - 779282 | $3.91 | Special order, ships in 7-14 days |
| 4 | 871104 | Ferrari Underbody Vacuum Pipe - 871104 | $169.62 | Special order, ships in 7-14 days |
| 5 | 150695 | Ferrari Clip - 150695 | $0.92 | Available, ships in 3-6 days |
| 6 | 768789 | Ferrari Underbody Brake Servo Pipe B - 768789 | $39.31 | Special order, ships in 7-14 days |
| 7 | 292112 | Ferrari CLIP - 292112 | Price on request | Contact us for price and availability |
| 8 | 65864100 | Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100 | $2.82 | Available, ships in 3-6 days |
| 9 | 278889 | Ferrari Rubber Ring - 278889 | $41.50 | Special order, ships in 7-14 days |
