Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR (diagram 0071)

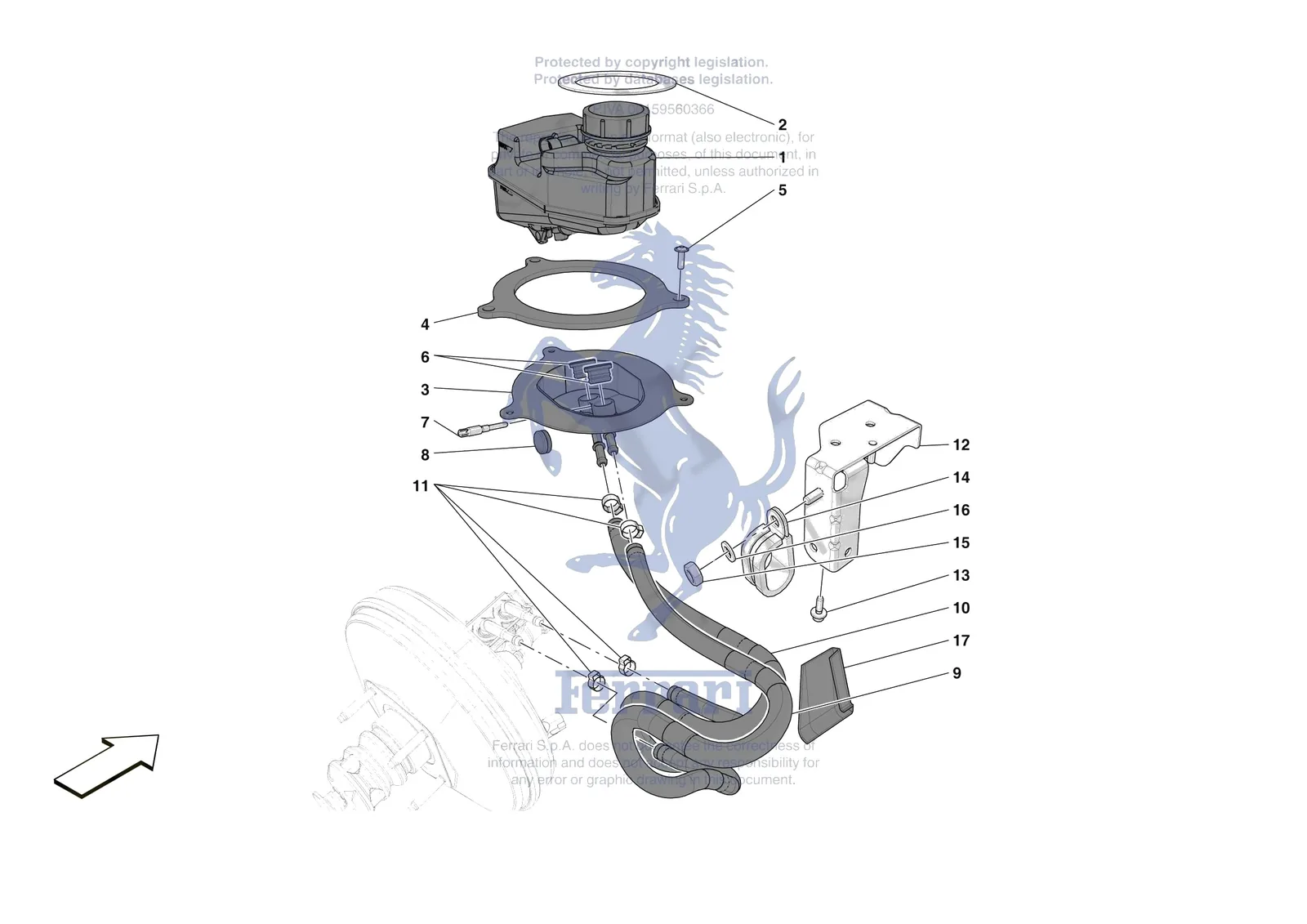

Exploded view of the [mechanical system] - d.22 - brake master cylinder reservoir on the Ferrari Daytona SP3, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0071.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 242849 | Ferrari Oil Tray - 242849 | Superseded | Order 956187 instead | |
| 1 | 956187 | Ferrari Brake Oil Reservoir - 956187 | $137.67 | Special order, ships in 7-14 days |
| 2 | 307789 | Ferrari Rubber Shim - 307789 | $5.02 | Special order, ships in 7-14 days |
| 3 | 307650 | Ferrari Fastener For Brake Fluid Reservoir To Chassis - 307650 | $1,229.39 | Special order, ships in 7-14 days |
| 4 | 293138 | Ferrari Brake Fluid Reservoir Fastener Seal - 293138 | $30.57 | Special order, ships in 7-14 days |
| 5 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 6 | 241550 | Ferrari Master Cylinder Seal - 241550 | $1.17 | Available, ships in 3-6 days |
| 7 | 241537 | Ferrari Screw - 241537 | $0.92 | Special order, ships in 7-14 days |
| 8 | 14673180 | Ferrari Cap - 14673180 | $49.14 | Special order, ships in 7-14 days |
| 9 | 870212 | Ferrari Rubber Pipe Mc 2 - 870212 | $565.49 | Special order, ships in 7-14 days |
| 10 | 870200 | Ferrari Rubber Pipe Mc 1 - 870200 | $590.08 | Special order, ships in 7-14 days |
| 11 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 12 | 297983 | Ferrari Bracket Fastening Pipes To Chassis - 297983 | $95.87 | Special order, ships in 7-14 days |
| 13 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 14 | 303345 | Ferrari Bracket - 303345 | $76.19 | Special order, ships in 7-14 days |
| 15 | 10725914 | Ferrari Nut M6 x 4 - 10725914 | $0.19 | Available, ships in 3-6 days |
| 16 | 12639724 | Ferrari Washer - 12639724 | $0.08 | Available, ships in 3-6 days |
| 17 | 307703 | Ferrari Rubber Shim - 307703 | $4.35 | Special order, ships in 7-14 days |
