Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS (diagram 0075)

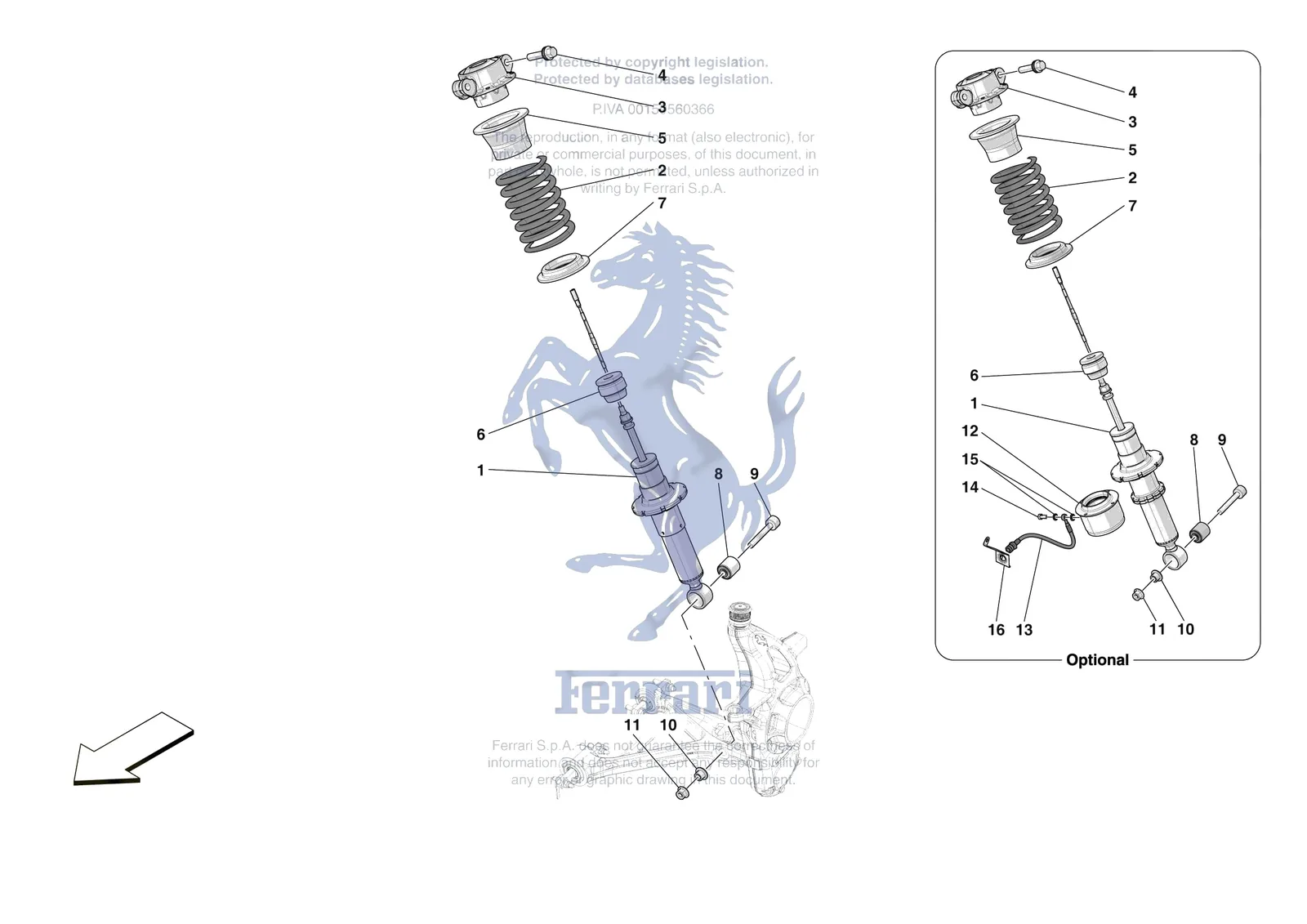

Exploded view of the [mechanical system] - d.25.01 - front suspension - shock absorbers on the Ferrari Daytona SP3, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0075.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 893134 | Ferrari Front Shock Absorber - 893134 | $3,069.99 | Special order, ships in 7-14 days |
| 1 | 893136 | Ferrari Front Shock Absorber - 893136 | $3,927.05 | Special order, ships in 7-14 days |
| 2 | 786618 | Ferrari Front Suspension Spring - 786618 | $417.97 | Special order, ships in 7-14 days |
| 3 | 340231 | Ferrari Compl. Shock Absorber Retainer Cap - 340231 | $393.38 | Special order, ships in 7-14 days |
| 4 | 248790 | Ferrari Screw M12 x 1.25 x 50 - 248790 | $7.63 | Available, ships in 3-6 days |
| 5 | 293621 | Ferrari Spring Support Pad - 293621 | $28.39 | Available, ships in 3-6 days |
| 6 | 281221 | Ferrari Endstop Bush - 281221 | $61.45 | Special order, ships in 7-14 days |
| 7 | 188996 | Ferrari Spring Support Pad - 188996 | $23.57 | Available, ships in 3-6 days |
| 8 | 157630 | Ferrari Front and Rear Shock Bushing PREKOM - 157630 | $87.45 | In stock |
| 9 | 237297 | Ferrari Screw TCEI M12 x 1.25 x 8 - 237297 | $58.98 | Special order, ships in 7-14 days |
| 10 | 237821 | Ferrari Bushing 18x15 - 237821 | $9.16 | Available, ships in 3-6 days |
| 11 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 12 | 790604 | Ferrari Attuatore Cpl - 790604 | $1,914.99 | Special order, ships in 7-14 days |
| 13 | 277168 | Ferrari Actuator Pipe - 277168 | $240.94 | Special order, ships in 7-14 days |
| 14 | 261587 | Ferrari Union - 261587 | $49.14 | Special order, ships in 7-14 days |
| 15 | 259638 | Ferrari Gasket 8.7-14 - 259638 | $21.60 | Special order, ships in 7-14 days |
| 16 | 895558 | Ferrari LH Front Joint Bracket For L - 895558 | $83.57 | Special order, ships in 7-14 days |
| 16 | 881364 | Ferrari RH Front Joint Bracket For L - 881364 | $90.95 | Special order, ships in 7-14 days |
