Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS (diagram 0077)

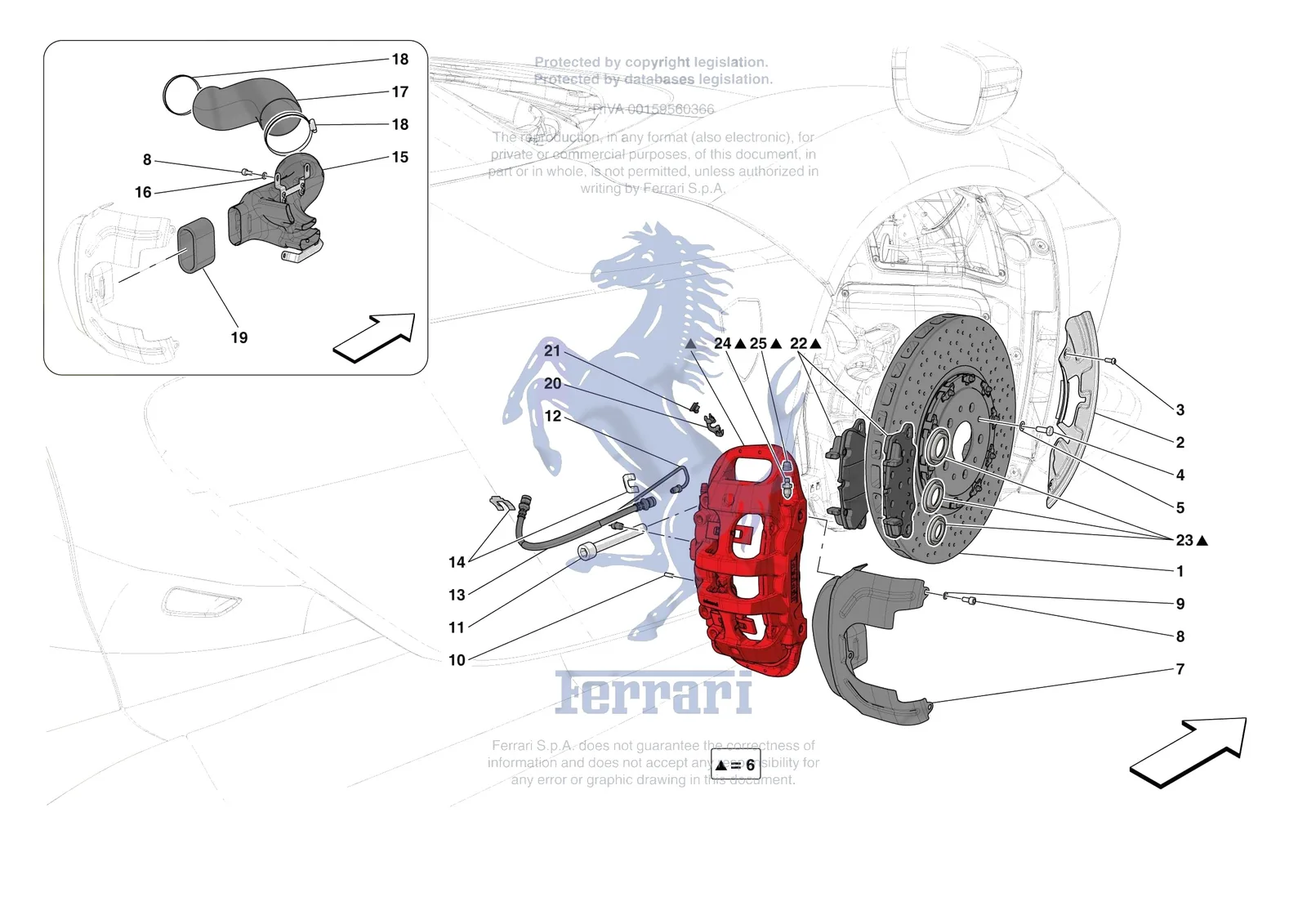

Exploded view of the [mechanical system] - d.25.03 - front suspension - calipers and discs on the Ferrari Daytona SP3, with 54 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0077.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12486580 | Ferrari Botton - 12486580 | Superseded | Order 204781 instead | |
| 175871 | Ferrari Clip - 175871 | Superseded | Order 204781 instead | |
| 323365 | Ferrari Connector Fastener Clip - 323365 | Superseded | Order 204781 instead | |
| 190870 | Ferrari Screw 6x14 - 190870 | $4.10 | Special order, ships in 7-14 days | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 768772 | Ferrari Brake Disc - 768772 | $10,646.12 | Special order, ships in 7-14 days |
| 2 | 280650 | Ferrari LH Front Disc Shield - 280650 | $639.27 | Special order, ships in 7-14 days |
| 2 | 280651 | Ferrari RH Front Disc Shield - 280651 | $639.27 | Special order, ships in 7-14 days |
| 3 | 250657 | Ferrari Screw M6 x 14 TBTX - 250657 | $13.36 | Available, ships in 3-6 days |
| 4 | 228131 | Ferrari Screw M8 x 20 - 228131 | $1.53 | Available, ships in 3-6 days |
| 5 | 228132 | Ferrari Spring Washer - 228132 | $0.59 | Available, ships in 3-6 days |
| 6 | 910829 | Ferrari Complete L.H. Front Caliper - 910829 | $6,669.22 | Special order, ships in 7-14 days |
| 6 | 910831 | Ferrari Complete L.H. Front Caliper - 910831 | $6,823.24 | Special order, ships in 7-14 days |
| 6 | 910868 | Ferrari Complete L.H. Front Caliper - 910868 | $7,139.64 | Special order, ships in 7-14 days |
| 6 | 910874 | Ferrari Complete L.H. Front Caliper - 910874 | $7,139.64 | Special order, ships in 7-14 days |
| 6 | 910882 | Ferrari Complete L.H. Front Caliper - 910882 | $7,703.74 | Special order, ships in 7-14 days |
| 6 | 910889 | Ferrari Complete L.H. Front Caliper - 910889 | $7,703.74 | Special order, ships in 7-14 days |
| 6 | 910891 | Ferrari Complete L.H. Front Caliper - 910891 | $7,139.64 | Special order, ships in 7-14 days |
| 6 | 910893 | Ferrari Complete L.H. Front Caliper - 910893 | $6,958.56 | Special order, ships in 7-14 days |
| 6 | 910979 | Ferrari Complete L.H. Front Caliper - 910979 | $7,139.64 | Special order, ships in 7-14 days |
| 6 | 910830 | Ferrari Complete RH Front Caliper - 910830 | $6,671.30 | Special order, ships in 7-14 days |
| 6 | 910866 | Ferrari Complete RH Front Caliper - 910866 | $6,823.24 | Special order, ships in 7-14 days |
| 6 | 910869 | Ferrari Complete RH Front Caliper - 910869 | $7,139.64 | Special order, ships in 7-14 days |
| 6 | 910876 | Ferrari Complete RH Front Caliper - 910876 | $7,139.64 | Special order, ships in 7-14 days |
| 6 | 910886 | Ferrari Complete RH Front Caliper - 910886 | $7,703.74 | Special order, ships in 7-14 days |
| 6 | 910890 | Ferrari Complete RH Front Caliper - 910890 | $7,703.74 | Special order, ships in 7-14 days |
| 6 | 910892 | Ferrari Complete RH Front Caliper - 910892 | $7,139.64 | Special order, ships in 7-14 days |
| 6 | 910894 | Ferrari Complete RH Front Caliper - 910894 | $6,958.56 | Special order, ships in 7-14 days |
| 6 | 910995 | Ferrari Complete RH Front Caliper - 910995 | $7,139.64 | Special order, ships in 7-14 days |
| 7 | 306004 | Ferrari LH Front Caliper Housing Cover - 306004 | $983.50 | Special order, ships in 7-14 days |
| 7 | 306005 | Ferrari RH Front Caliper Housing Cover - 306005 | $983.50 | Special order, ships in 7-14 days |
| 8 | 14305187 | Ferrari Screw 6x12 - 14305187 | $0.77 | Available, ships in 3-6 days |
| 9 | 12648278 | Ferrari Washer 6 15-10X - 12648278 | $0.50 | Available, ships in 3-6 days |
| 10 | 11499921 | Ferrari Stud - 11499921 | $16.43 | Available, ships in 3-6 days |
| 10 | 11499924 | Ferrari Stud - 11499924 | Superseded | Order 11499921 instead |
| 11 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 12 | 292473 | Ferrari LH Hose Front Brake Pipe From Caliper - 292473 | $344.21 | Special order, ships in 7-14 days |
| 12 | 292474 | Ferrari RH Hose Front Brake Pipe From Caliper - 292474 | $344.21 | Special order, ships in 7-14 days |
| 13 | 977797 | Ferrari Brake Hose 330 mm - 977797 | $100.78 | Available, ships in 3-6 days |
| 14 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 15 | 306209 | Ferrari Air Outlet On LH Hub Carrier - 306209 | $1,896.77 | Special order, ships in 7-14 days |
| 15 | 306210 | Ferrari Air Outlet On RH Hub Carrier - 306210 | $1,896.77 | Special order, ships in 7-14 days |
| 16 | 14499324 | Ferrari Washer - 14499324 | Superseded | Order 12643724 instead |
| 16 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 17 | 288136 | Ferrari Front Air Delivery Pipe - 288136 | $194.22 | Special order, ships in 7-14 days |
| 18 | 13001090 | Ferrari Hose Clip 70-90Mm - 13001090 | $2.82 | Available, ships in 3-6 days |
| 19 | 290912 | Ferrari Manicotto - 290912 | $122.92 | Special order, ships in 7-14 days |
| 20 | 310962 | Ferrari Clip - 310962 | $9.62 | Special order, ships in 7-14 days |
| 21 | 204781 | Ferrari Clip - 204781 | $1.67 | Available, ships in 3-6 days |
| 22 | 70003278 | Ferrari Front Pad Set With Spring - 70003278 | $2,852.46 | Available, ships in 3-6 days |
| 22 | 887274 | Ferrari SET OF FRONT PADS WITH SPRING - 887274 | Price on request | Contact us for price and availability |
| 23 | 70003492 | Ferrari Front Brake Caliper Dust Seal Kit - 70003492 | $184.38 | Special order, ships in 7-14 days |
| 24 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 25 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
