Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.30.02 - STEERING WHEEL AND STEERING SYSTEM - STEERING WHEEL AND AIRBAG (diagram 0085)
Exploded view of the [mechanical system] - d.30.02 - steering wheel and steering system - steering wheel and airbag on the Ferrari Daytona SP3, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

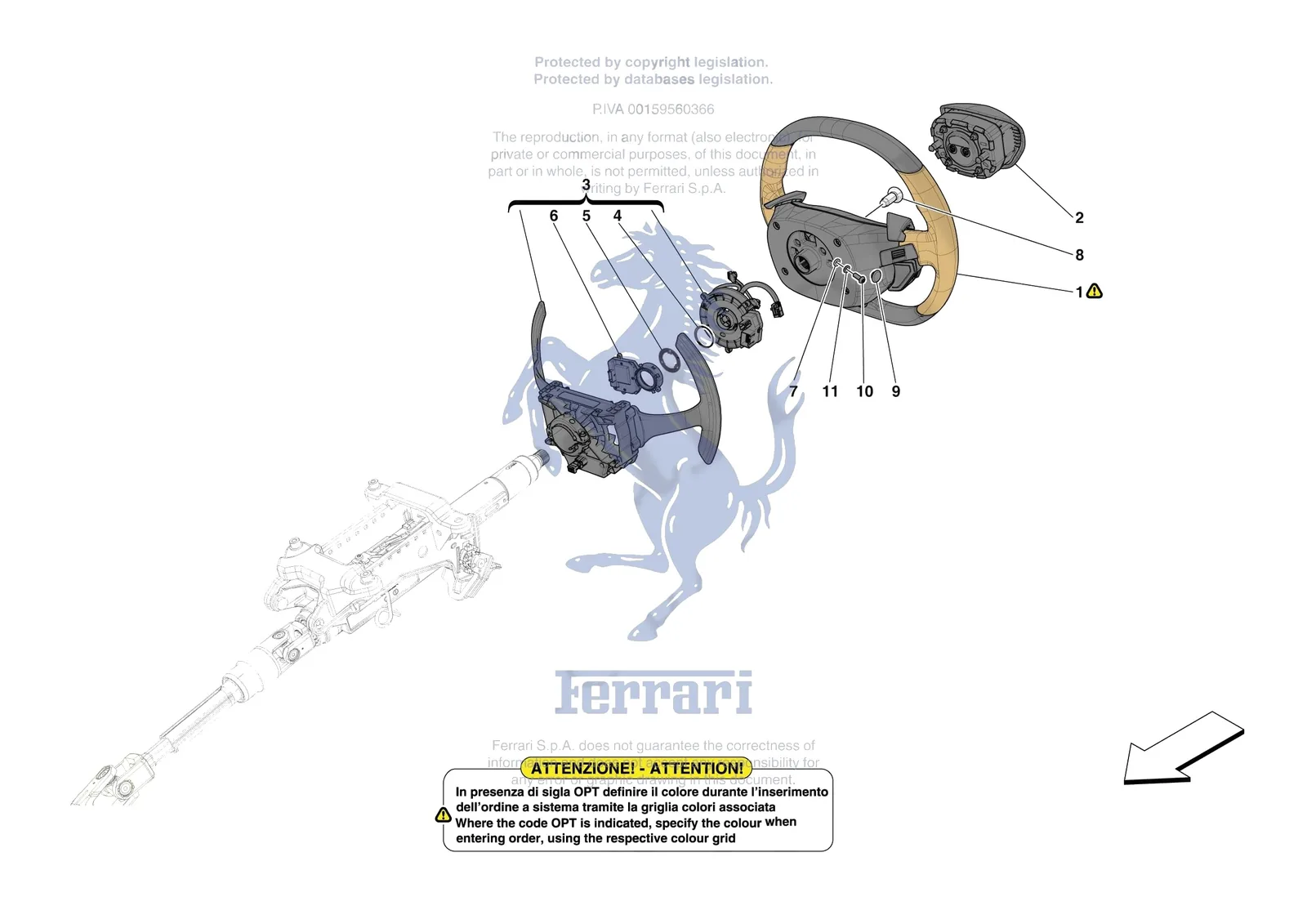

![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.30.02 - STEERING WHEEL AND STEERING SYSTEM - STEERING WHEEL AND AIRBAG exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0085.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 275398 | Ferrari Screw - 275398 | Superseded | Order 301723 instead | |
| 1 | 70008289 | Ferrari Compl. Steering Wheel - 70008289 | $39,447.64 | Contact us to order |
| 1 | 70008290 | Ferrari COMPL. STEERING WHEEL - 70008290 | Price on request | Contact us for price and availability |
| 1 | 70008291 | Ferrari COMPL. STEERING WHEEL - 70008291 | Price on request | Contact us for price and availability |
| 1 | 70008292 | Ferrari COMPL. STEERING WHEEL - 70008292 | Price on request | Contact us for price and availability |
| 1 | 833590 | Ferrari COMPL. STEERING WHEEL - 833590 | Price on request | Contact us for price and availability |
| 1 | 847311 | Ferrari Compl. Steering Wheel - 847311 | $29,560.19 | Contact us to order |
| 1 | 940551 | Ferrari COMPL. STEERING WHEEL - 940551 | Price on request | Contact us for price and availability |
| 1 | 940563 | Ferrari COMPL. STEERING WHEEL - 940563 | Price on request | Contact us for price and availability |
| 2 | 795719 | Ferrari Airbag Driver Trw - 795719 | $2,517.33 | Special order, ships in 7-14 days |
| 3 | 70007218 | Ferrari Magnetic Gearbox Control Set - 70007218 | $6,111.88 | Special order, ships in 7-14 days |
| 3 | 70007219 | Ferrari Magnetic Gearbox Control Set - 70007219 | $23,337.74 | Special order, ships in 7-14 days |
| 3 | 817753 | Ferrari Magnetic Gearbox Control Set - 817753 | $5,880.06 | Special order, ships in 7-14 days |
| 3 | 975141 | Ferrari MAGNETIC GEARBOX CONTROL SET - 975141 | Price on request | Contact us for price and availability |
| 4 | 828380 | Ferrari Clock Spring Connector Spring - 828380 | $3.26 | Available, ships in 3-6 days |
| 5 | 828381 | Ferrari Clock Spring Connector Lock - 828381 | $12.21 | Available, ships in 3-6 days |
| 6 | 309296 | Ferrari Steering Angle Sensor - 309296 | $371.53 | Special order, ships in 7-14 days |
| 7 | 14506587 | Ferrari Rubber Grommet - 14506587 | $0.38 | Available, ships in 3-6 days |
| 8 | 301723 | Ferrari Screw - 301723 | $164.72 | Special order, ships in 7-14 days |
