Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.31 - STEERING BOX (diagram 0086)

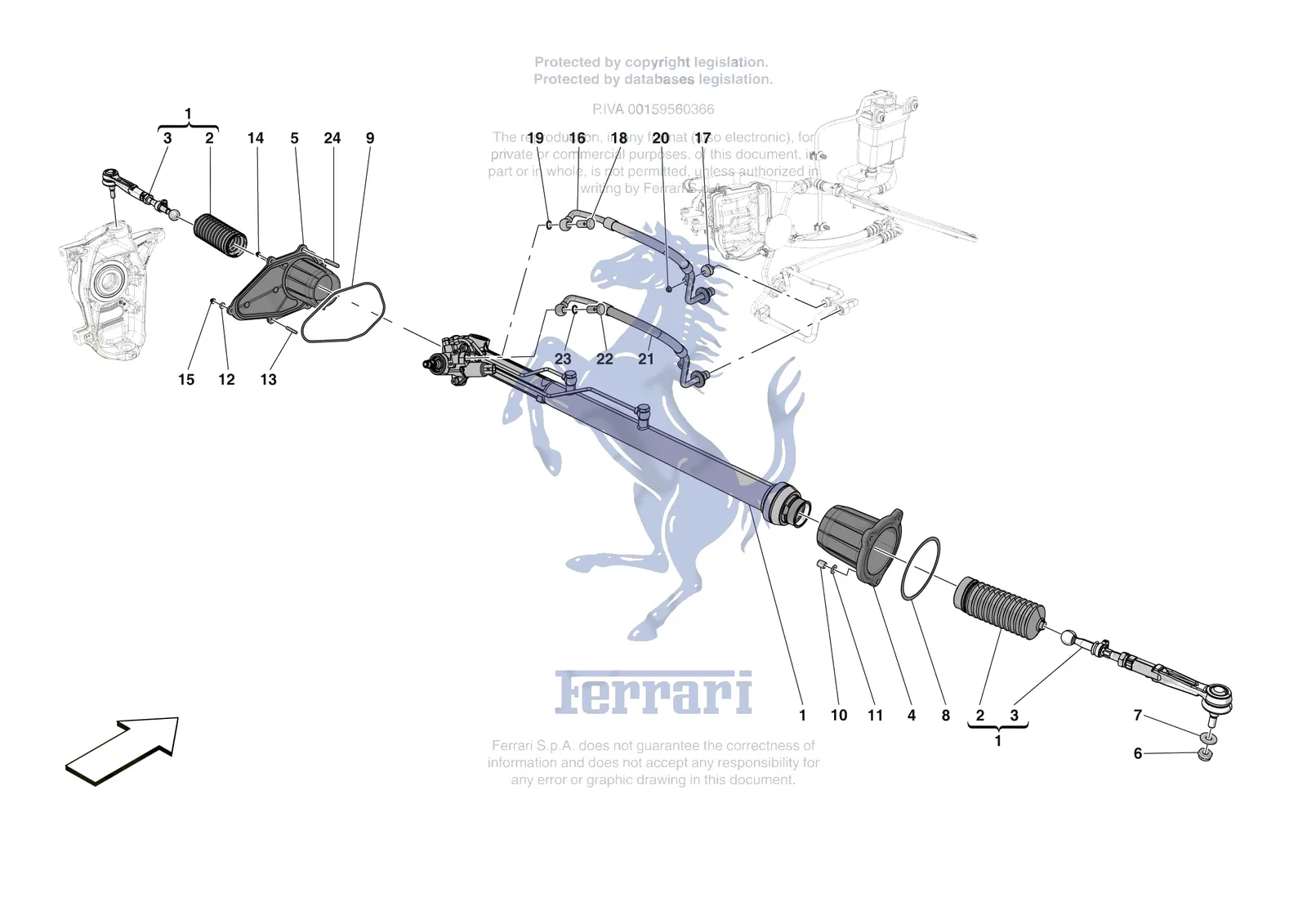

Exploded view of the [mechanical system] - d.31 - steering box on the Ferrari Daytona SP3, with 32 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.31 - STEERING BOX exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0086.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 153419 | Ferrari Banjo Bolt - 153419 | Superseded | Order 184727 instead | |
| 12575611 | Ferrari Nut - 12575611 | Superseded | Order 102742 instead | |
| 64342800 | Ferrari Nut - 64342800 | Superseded | Order 177778 instead | |
| 67190100 | Ferrari Nut - 67190100 | Superseded | Order 194031 instead | |
| 133215 | Ferrari Nut Locking - 133215 | Superseded | Order 177778 instead | |
| 12575621 | Ferrari Nyloc Nut - 12575621 | Superseded | Order 102742 instead | |
| 12575625 | Ferrari Nyloc Nut - 12575625 | Superseded | Order 102742 instead | |
| 1 | 301392 | Ferrari Steering Box - 301392 | $10,247.69 | Special order, ships in 7-14 days |
| 2 | 323145 | Ferrari Boots Replacement Kit For St - 323145 | $541.67 | Special order, ships in 7-14 days |
| 3 | 250196 | Ferrari Tie Rod End - 250196 | $351.89 | In stock |
| 4 | 821826 | Ferrari RH Steering Box Mount - 821826 | $911.01 | Special order, ships in 7-14 days |
| 5 | 821825 | Ferrari LH Steering Box Mount - 821825 | $1,304.98 | Special order, ships in 7-14 days |
| 6 | 102742 | Ferrari Nyloc Nut M10x1.25x10 - 102742 | $0.79 | Available, ships in 3-6 days |
| 7 | 12626224 | Ferrari Washer - 12626224 | $0.38 | Available, ships in 3-6 days |
| 8 | 882693 | Ferrari RH Steering Box Mount Gasket - 882693 | $41.55 | Special order, ships in 7-14 days |
| 9 | 882708 | Ferrari LH Steering Box Mount Gasket - 882708 | $105.03 | Special order, ships in 7-14 days |
| 10 | 102704 | Ferrari Dowel - 102704 | $6.10 | Available, ships in 3-6 days |
| 11 | 12638524 | Ferrari Flat Washer 8.15x15x1.5 - 12638524 | $0.12 | Available, ships in 3-6 days |
| 12 | 13550224 | Ferrari Washer D 6.15-13x1 - 13550224 | $2.59 | Available, ships in 3-6 days |
| 13 | 13541334 | Ferrari Stud - 13541334 | $0.98 | Available, ships in 3-6 days |
| 14 | 177778 | Ferrari Nut Locking M8 x 7 - 177778 | $2.82 | Available, ships in 3-6 days |
| 15 | 194031 | Ferrari Flanged Nut M6 x 20 - 194031 | $1.21 | Available, ships in 3-6 days |
| 15 | 132877 | Ferrari Nut - 132877 | Superseded | Order 194031 instead |
| 16 | 291123 | Ferrari Pipe From Disconnecter Union to Steering Box - 291123 | $590.91 | Special order, ships in 7-14 days |
| 17 | 768838 | Ferrari Bush - 768838 | $18.44 | Special order, ships in 7-14 days |
| 18 | 184727 | Ferrari Banjo bolt For Union M16 x 1.5 - 184727 | $10.70 | Available, ships in 3-6 days |
| 19 | 11270360 | Ferrari Gasket - 11270360 | $0.71 | Available, ships in 3-6 days |
| 20 | 14065921 | Ferrari Flanged Nut - 14065921 | $0.50 | Available, ships in 3-6 days |
| 21 | 291124 | Ferrari Pipe From Disconnecter Union to Steering Box - 291124 | $615.54 | Special order, ships in 7-14 days |
| 22 | 277407 | Ferrari Union - 277407 | $17.46 | Special order, ships in 7-14 days |
| 23 | 11270260 | Ferrari Copper Washer - 11270260 | $0.59 | Available, ships in 3-6 days |
| 24 | 13543634 | Ferrari Stud - 13543634 | $2.61 | Available, ships in 3-6 days |
