Ferrari Daytona SP3 — [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE (diagram 0095)
Exploded view of the [vehicle trim] - e.01.01 - structures and elements front of vehicle on the Ferrari Daytona SP3, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

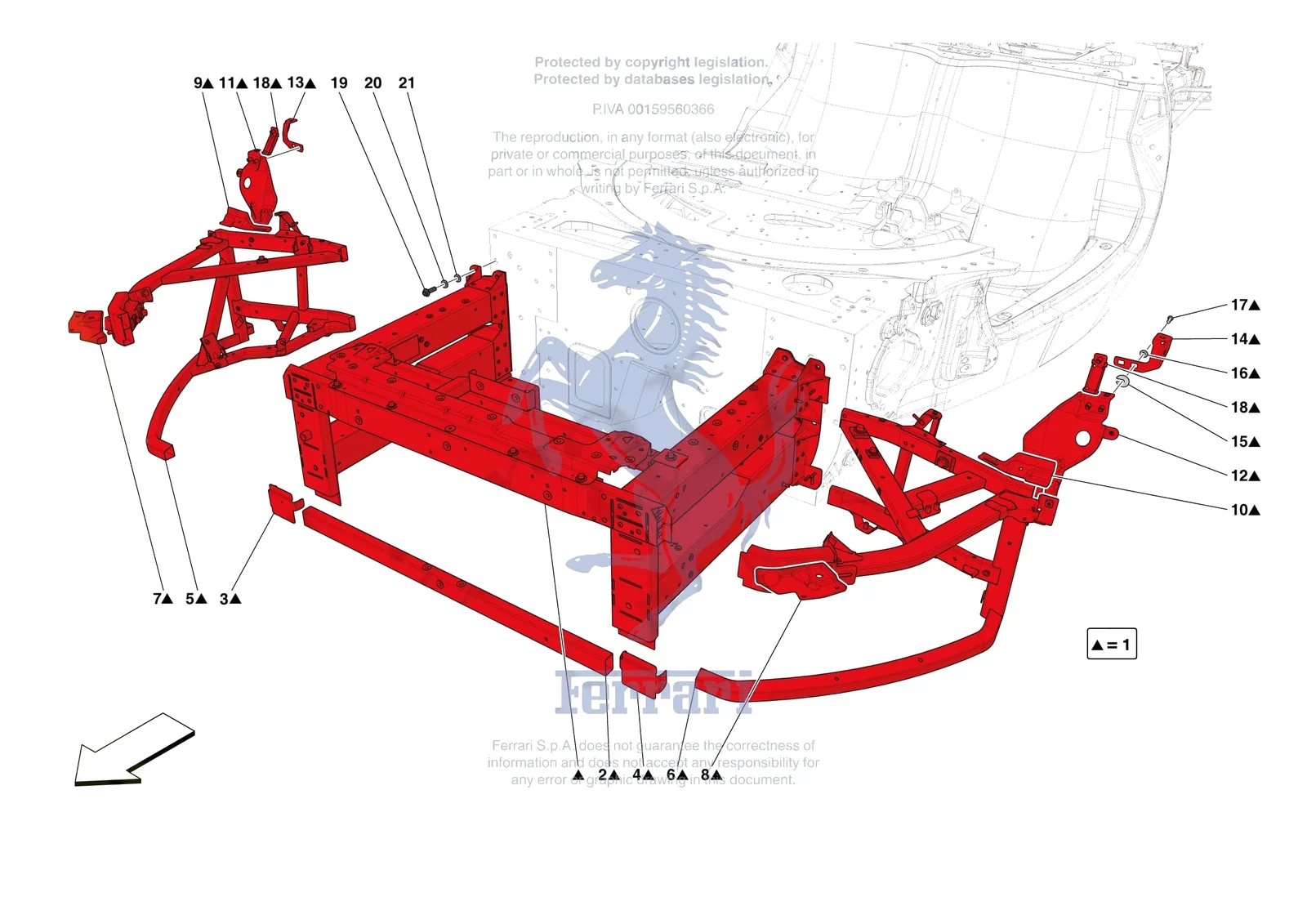

![Ferrari Daytona SP3 [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0095.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 284147 | Ferrari Washer - 284147 | Superseded | Order 308666 instead | |
| 1 | 945287 | Ferrari Compl. Front Subchassis - 945287 | $25,082.50 | Contact us to order |
| 2 | 985806566 | Ferrari Traversino Inf. Ant. Cpl. F2 - 985806566 | $664.78 | Special order, ships in 7-14 days |
| 3 | 915913 | Ferrari Front RH Lower Bracket - 915913 | $39.37 | Special order, ships in 7-14 days |
| 4 | 806542 | Ferrari Front LH Lower Bracket - 806542 | $39.37 | Special order, ships in 7-14 days |
| 5 | 985902301 | Ferrari Traliccio Ant. Dx. F251 Cata - 985902301 | $4,202.25 | Special order, ships in 7-14 days |
| 6 | 985902302 | Ferrari Traliccio Ant. Sx. F251 Cata - 985902302 | $3,594.88 | Special order, ships in 7-14 days |
| 7 | 913918 | Ferrari RH Upper Bracket - 913918 | $100.93 | Special order, ships in 7-14 days |
| 8 | 913798 | Ferrari LH Upper Bracket - 913798 | $100.93 | Special order, ships in 7-14 days |
| 9 | 893314 | Ferrari RH Headlamp Bracket Reinforc - 893314 | $135.39 | Special order, ships in 7-14 days |
| 10 | 893299 | Ferrari LH Headlamp Bracket Reinforc - 893299 | $137.87 | Special order, ships in 7-14 days |
| 11 | 985851449 | Ferrari Compl. Rear Bracket for RH Headlight - 985851449 | $984.88 | Special order, ships in 7-14 days |
| 12 | 985851448 | Ferrari Compl. Rear Bracket for LH Headlight - 985851448 | $984.88 | Special order, ships in 7-14 days |
| 13 | 851602 | Ferrari RH Fender Rear Bracket - 851602 | $66.45 | Special order, ships in 7-14 days |
| 14 | 851603 | Ferrari LH Fender Rear Bracket - 851603 | $66.45 | Special order, ships in 7-14 days |
| 15 | 298365 | Ferrari Split Washer - 298365 | $14.62 | Special order, ships in 7-14 days |
| 16 | 12644478 | Ferrari Washer D. 6.45 - 15 x 1 - 12644478 | Superseded | Order 85882600 instead |
| 17 | 86276300 | Ferrari SCREW - 86276300 | $7.84 | Special order, ships in 7-14 days |
| 18 | 784951 | Ferrari Compl. WheeLHouse Fastener B - 784951 | $108.31 | Special order, ships in 7-14 days |
| 19 | 298805 | Ferrari Titanium Screw - 298805 | $125.54 | Special order, ships in 7-14 days |
| 20 | 308667 | Ferrari Washer - 308667 | $20.41 | Special order, ships in 7-14 days |
| 21 | 308666 | Ferrari Washer - 308666 | $3.70 | Special order, ships in 7-14 days |
