Ferrari Daytona SP3 — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

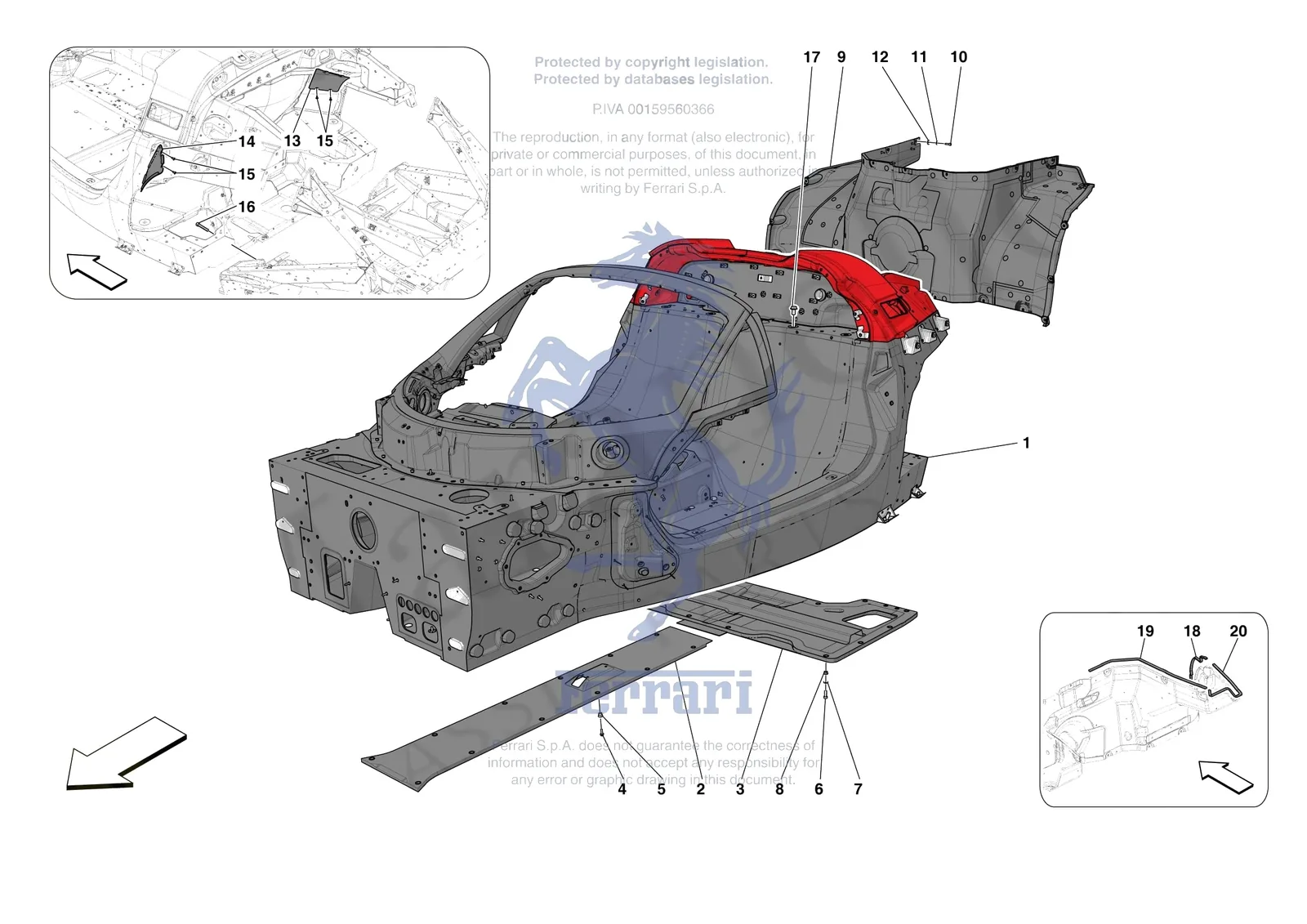

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari Daytona SP3, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0096.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14304326 | Ferrari Screw - 14304326 | Superseded | Order 308677 instead | |
| 289831 | Ferrari Screw - 289831 | Superseded | Order 13028728 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 300273 | Ferrari Tapered Pin - 300273 | Superseded | Order 308675 instead | |
| 1 | 985903890 | Ferrari Compl. Body - 985903890 | $2,154,967.06 | Contact us to order |
| 2 | 812152 | Ferrari Compl. Structural Tunnel Cov - 812152 | $26,551.17 | Contact us to order |
| 3 | 772200 | Ferrari COMPL. KERS HOUSING COVER - 772200 | Price on request | Contact us for price and availability |
| 3 | 779102 | Ferrari COMPL. KERS HOUSING COVER - 779102 | Price on request | Contact us for price and availability |
| 4 | 308677 | Ferrari Screw - 308677 | $13.76 | Special order, ships in 7-14 days |
| 5 | 308675 | Ferrari Tapered Pin - 308675 | $56.60 | Special order, ships in 7-14 days |
| 6 | 13028728 | Ferrari Screw - 13028728 | $4.35 | Special order, ships in 7-14 days |
| 7 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 8 | 308676 | Ferrari Tapered Pin - 308676 | $56.60 | Special order, ships in 7-14 days |
| 9 | 747436 | Ferrari Complete Adhesive-Bonded Tan - 747436 | Superseded | Order 778198 instead |
| 9 | 778198 | Ferrari Complete Adhesive-Bonded Tan - 778198 | $42,843.39 | Contact us to order |
| 10 | 946846 | Ferrari Screw - 946846 | $8.51 | Special order, ships in 7-14 days |
| 11 | 12620474 | Ferrari Wavy Washer - 12620474 | $0.12 | Available, ships in 3-6 days |
| 12 | 302843 | Ferrari Washer - 302843 | $5.04 | Special order, ships in 7-14 days |
| 13 | 747295 | Ferrari Compl. RH Floating Plate Hou - 747295 | $1,922.89 | Special order, ships in 7-14 days |
| 14 | 747290 | Ferrari Compl. LH Floating Plate Hou - 747290 | $1,922.89 | Special order, ships in 7-14 days |
| 15 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 16 | 332832 | Ferrari Screw - 332832 | $24.05 | Special order, ships in 7-14 days |
| 17 | 83911900 | Ferrari Retractor Screw - 83911900 | $3.47 | Special order, ships in 7-14 days |
| 18 | 764745 | Ferrari Tank Bulkhead Nitto - 764745 | $15.24 | Special order, ships in 7-14 days |
| 19 | 765974 | Ferrari Chassis Nitto Centre Part - 765974 | $19.42 | Special order, ships in 7-14 days |
| 20 | 765978 | Ferrari Chassis Nitto Lateral Part - 765978 | $15.24 | Special order, ships in 7-14 days |
