Ferrari Daytona SP3 — [VEHICLE TRIM] - E.09 - FRONT LID SUBSTRUCTURE (diagram 0105)
Exploded view of the [vehicle trim] - e.09 - front lid substructure on the Ferrari Daytona SP3, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

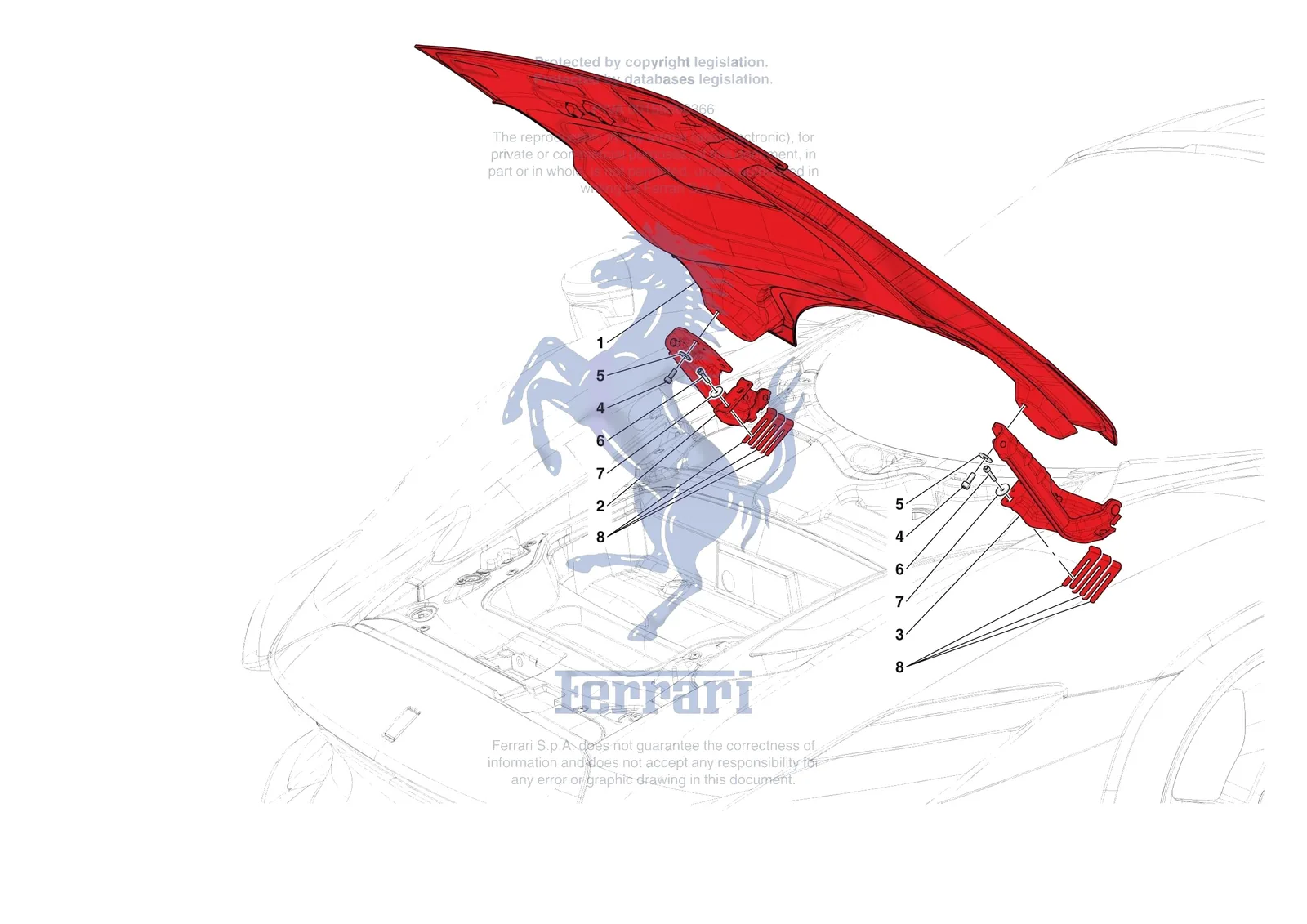

![Ferrari Daytona SP3 [VEHICLE TRIM] - E.09 - FRONT LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0105.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305326 | Ferrari Screw - 14305326 | $2.38 | Special order, ships in 7-14 days | |
| 86024000 | Ferrari Screw - 86024000 | Superseded | Order 86296300 instead | |
| 86062700 | Ferrari Washer - 86062700 | Price on request | Contact us for price and availability | |
| 1 | 70008115 | Ferrari FRONT LID - 70008115 | Price on request | Contact us to order |
| 1 | 985745834 | Ferrari FRONT LID - 985745834 | Price on request | Contact us to order |
| 1 | 985903255 | Ferrari Front Lid - 985903255 | $75,366.54 | Contact us to order |
| 2 | 901800 | Ferrari RH Front Lid Hinge - 901800 | $689.41 | Special order, ships in 7-14 days |
| 3 | 901793 | Ferrari LH Front Lid Hinge - 901793 | $689.41 | Special order, ships in 7-14 days |
| 4 | 86149600 | Ferrari Screw - 86149600 | Superseded | Order 14305326 instead |
| 5 | 86150100 | Ferrari Washer - 86150100 | $1.80 | Special order, ships in 7-14 days |
| 6 | 86296300 | Ferrari Screw 6x25 - 86296300 | $6.32 | Special order, ships in 7-14 days |
| 7 | 86297600 | Ferrari Washer - 86297600 | Price on request | Contact us for price and availability |
| 8 | 85471300 | Ferrari Lid Hinge Adjuster Shim - 85471300 | $44.29 | Special order, ships in 7-14 days |
