Ferrari Daytona SP3 — [VEHICLE TRIM] - E.14 - FRONT SHIELDS (diagram 0113)

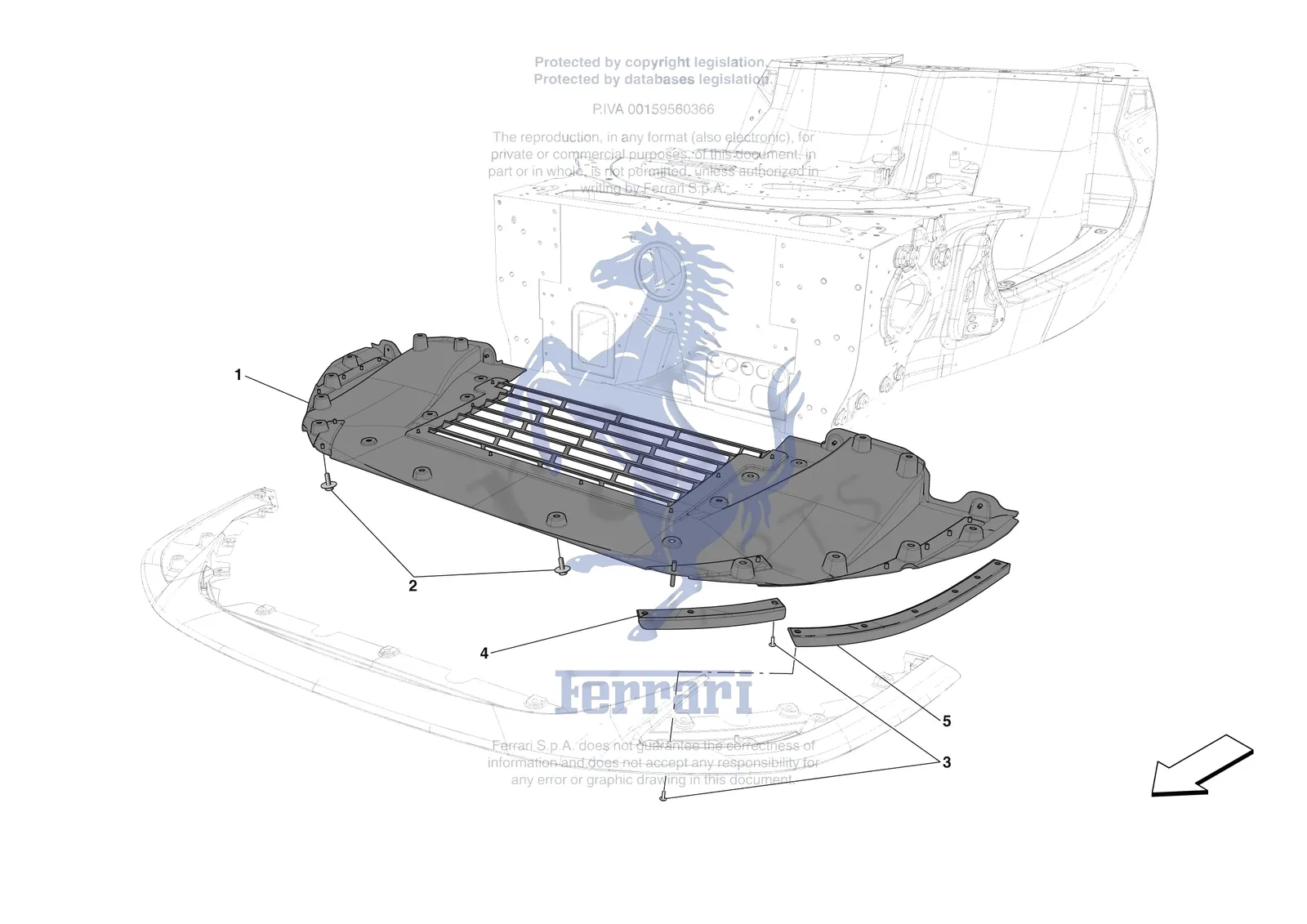

Exploded view of the [vehicle trim] - e.14 - front shields on the Ferrari Daytona SP3, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [VEHICLE TRIM] - E.14 - FRONT SHIELDS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0113.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 742260 | Ferrari Compl. Front Undertray - 742260 | $28,823.68 | Contact us to order |
| 2 | 897537 | Ferrari Screw with Washer M6 x 20 x 22 - 897537 | $3.68 | Special order, ships in 7-14 days |
| 3 | 86607000 | Ferrari Screw - 86607000 | Superseded | Order 256490 instead |
| 3 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 3 | 256490 | Ferrari Screw TBEI M5 x 16 - 256490 | $3.91 | Available, ships in 3-6 days |
| 4 | 780989 | Ferrari LH Front Inner Dam - 780989 | $59.07 | Special order, ships in 7-14 days |
| 4 | 780988 | Ferrari RH Front Inner Dam - 780988 | $59.07 | Special order, ships in 7-14 days |
| 5 | 780986 | Ferrari LH Outer Front Dam - 780986 | $78.76 | Special order, ships in 7-14 days |
| 5 | 780987 | Ferrari RH Outer Front Dam - 780987 | $78.76 | Special order, ships in 7-14 days |
