Ferrari Daytona SP3 — [VEHICLE TRIM] - E.16 - REAR SHIELDS (diagram 0115)

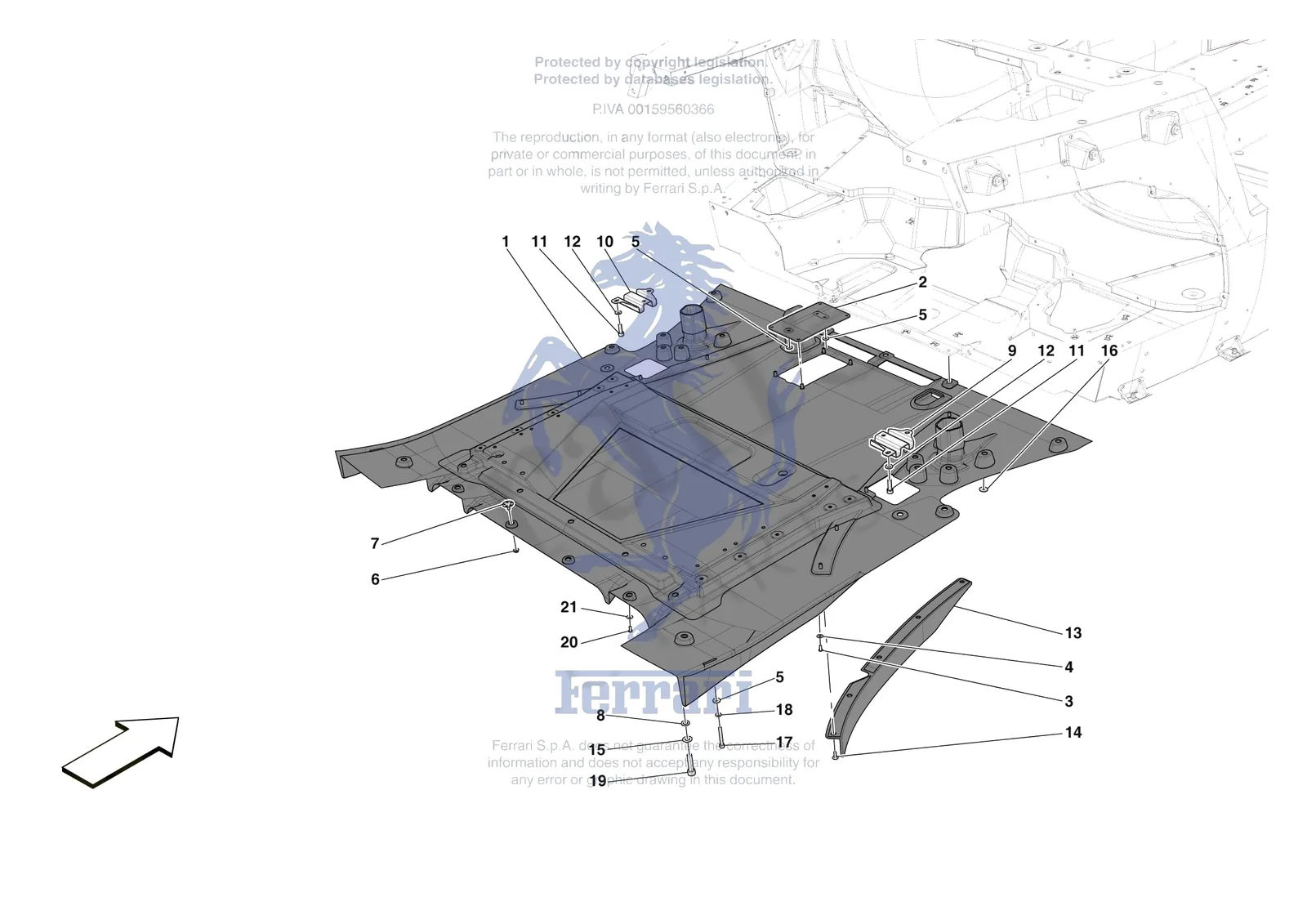

Exploded view of the [vehicle trim] - e.16 - rear shields on the Ferrari Daytona SP3, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [VEHICLE TRIM] - E.16 - REAR SHIELDS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0115.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13028774 | Ferrari Screw - 13028774 | Superseded | Order 14306474 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 742276 | Ferrari Rear Flat Undertray - 742276 | $59,263.80 | Contact us to order |
| 2 | 775556 | Ferrari Plug In Centre Undertray - 775556 | $164.95 | Special order, ships in 7-14 days |
| 3 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 4 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 5 | 86174900 | Ferrari Washer - 86174900 | $4.35 | Special order, ships in 7-14 days |
| 6 | 14059114 | Ferrari Nut M5 - 14059114 | $0.27 | Available, ships in 3-6 days |
| 7 | 324182 | Ferrari Bighead - 324182 | $16.45 | Special order, ships in 7-14 days |
| 8 | 88421500 | Ferrari Washer - 88421500 | $34.79 | Special order, ships in 7-14 days |
| 9 | 85746500 | Ferrari RH Vehicle Lift Bracket - 85746500 | $73.85 | Special order, ships in 7-14 days |
| 10 | 85746300 | Ferrari LH Vehicle Lift Bracket - 85746300 | $73.85 | Special order, ships in 7-14 days |
| 11 | 14306474 | Ferrari Screw - 14306474 | $0.82 | Special order, ships in 7-14 days |
| 12 | 283982 | Ferrari Washer - 283982 | $0.79 | Special order, ships in 7-14 days |
| 13 | 742277 | Ferrari LH Lateral Dam - 742277 | $98.46 | Special order, ships in 7-14 days |
| 13 | 742278 | Ferrari RH Lateral Dam - 742278 | $98.46 | Special order, ships in 7-14 days |
| 14 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 15 | 12642424 | Ferrari Flat Washer D.10.20 - 20 SP - 12642424 | $1.48 | Special order, ships in 7-14 days |
| 16 | 302843 | Ferrari Washer - 302843 | $5.04 | Special order, ships in 7-14 days |
| 17 | 14305974 | Ferrari Allen Screw - 14305974 | $0.55 | In stock |
| 18 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 19 | 332827 | Ferrari Screw M10 x 1.25 - 332827 | $12.02 | Special order, ships in 7-14 days |
