Ferrari Daytona SP3 — [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE (diagram 0117)

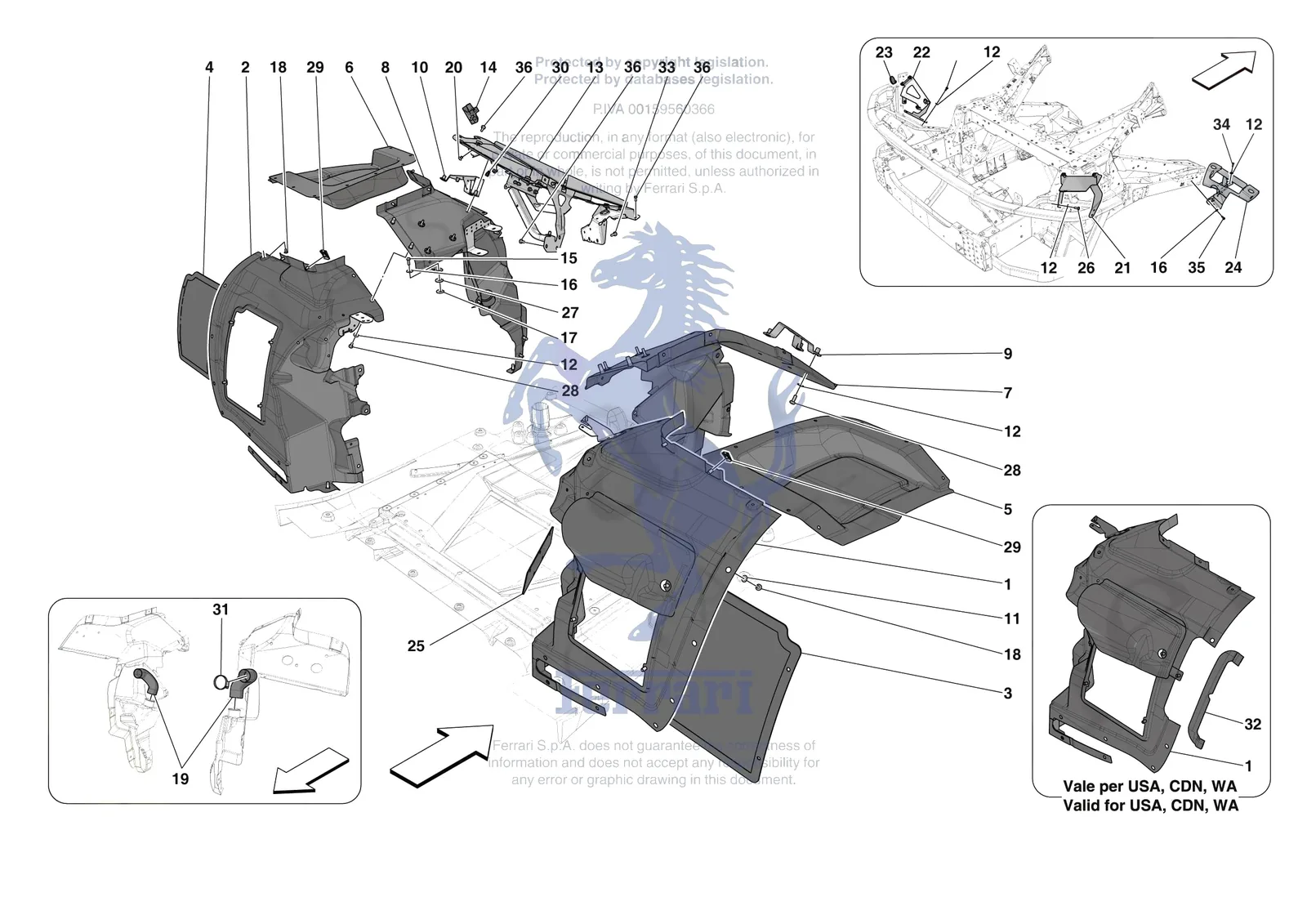

Exploded view of the [vehicle trim] - e.18 - rear wheelhouse on the Ferrari Daytona SP3, with 43 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0117.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 835280 | Ferrari Compl. Shield For Rear Part - 835280 | $9,790.66 | Special order, ships in 7-14 days |
| 1 | 905497 | Ferrari Compl. Shield For Rear Part - 905497 | $9,694.79 | Special order, ships in 7-14 days |
| 2 | 835270 | Ferrari Compl. Shield For Rear Part - 835270 | $9,790.66 | Special order, ships in 7-14 days |
| 2 | 905493 | Ferrari Compl. Shield For Rear Part - 905493 | $9,288.31 | Special order, ships in 7-14 days |
| 3 | 747210 | Ferrari RH Rear WheeLHouse Grille - 747210 | $284.51 | Special order, ships in 7-14 days |
| 4 | 747207 | Ferrari LH Rear WheeLHouse Grille - 747207 | $284.51 | Special order, ships in 7-14 days |
| 5 | 768798 | Ferrari Rear Wheel Bay Shield Mobil - 768798 | $4,433.62 | Special order, ships in 7-14 days |
| 6 | 768795 | Ferrari Rear Wheel Bay Shield Mobil - 768795 | $4,433.62 | Special order, ships in 7-14 days |
| 7 | 948577 | Ferrari Shield For Front Part Of Rea - 948577 | $8,325.29 | Special order, ships in 7-14 days |
| 8 | 948576 | Ferrari Compl. Shield For Front Part - 948576 | $8,031.38 | Special order, ships in 7-14 days |
| 9 | 905496 | Ferrari Compl. Upper Mounting Bracke - 905496 | $39.37 | Special order, ships in 7-14 days |
| 10 | 905499 | Ferrari Compl. Upper Mounting Bracke - 905499 | $41.82 | Special order, ships in 7-14 days |
| 11 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
| 12 | 12644478 | Ferrari Washer D. 6.45 - 15 x 1 - 12644478 | Superseded | Order 85882600 instead |
| 13 | 905498 | Ferrari Compl. LH Rear Radiator Moun - 905498 | $861.77 | Special order, ships in 7-14 days |
| 14 | 251290 | Ferrari Positive Pole - 251290 | $155.10 | Special order, ships in 7-14 days |
| 15 | 10902387 | Ferrari Screw M6 x 18 - 10902387 | $1.61 | Available, ships in 3-6 days |
| 16 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 17 | 308416 | Ferrari Split Washer - 308416 | $5.88 | Special order, ships in 7-14 days |
| 18 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 19 | 281349 | Ferrari Pipe - 281349 | $194.22 | Special order, ships in 7-14 days |
| 19 | 948578 | Ferrari Pipe - 948578 | $194.48 | Special order, ships in 7-14 days |
| 20 | 795820 | Ferrari Rivet - 795820 | $1.69 | Special order, ships in 7-14 days |
| 21 | 745667 | Ferrari RH Rear ECU Bracket - 745667 | $566.30 | Special order, ships in 7-14 days |
| 22 | 745665 | Ferrari LH Rear ECU Bracket - 745665 | $566.30 | Special order, ships in 7-14 days |
| 23 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 24 | 774664 | Ferrari Lower Mounting Bracket Of Re - 774664 | $714.03 | Special order, ships in 7-14 days |
| 25 | 747397 | Ferrari RH Rear WheeLHouse Vapour Gr - 747397 | $175.07 | Special order, ships in 7-14 days |
| 26 | 86276300 | Ferrari SCREW - 86276300 | $7.84 | Special order, ships in 7-14 days |
| 27 | 298365 | Ferrari Split Washer - 298365 | $14.62 | Special order, ships in 7-14 days |
| 28 | 80874100 | Ferrari Screw Torx - 80874100 | $1.97 | Available, ships in 3-6 days |
| 29 | 84583500 | Ferrari Fastener clip - 84583500 | $2.59 | Available, ships in 3-6 days |
| 30 | 10441690 | Ferrari P Clip D18mm - 10441690 | $3.91 | Special order, ships in 7-14 days |
| 31 | 296782 | Ferrari Hose Clamp 32-50mm - 296782 | $17.67 | Available, ships in 3-6 days |
| 32 | 946240 | Ferrari LH Rear Seal - 946240 | $54.68 | Special order, ships in 7-14 days |
| 32 | 946248 | Ferrari RH Rear Seal - 946248 | $54.68 | Special order, ships in 7-14 days |
| 33 | 65377400 | Ferrari Screw M6 x 1 x 18 - 65377400 | $3.91 | Available, ships in 3-6 days |
| 34 | 85629300 | Ferrari Screw M6 x 20 - 85629300 | $1.17 | Available, ships in 3-6 days |
| 35 | 62940900 | Ferrari Allen Head Screw M6 x 15 TBEI - 62940900 | $2.59 | Available, ships in 3-6 days |
