Ferrari Daytona SP3 — [VEHICLE TRIM] - E.23 - LATERAL AIR INTAKES (diagram 0122)
Exploded view of the [vehicle trim] - e.23 - lateral air intakes on the Ferrari Daytona SP3, with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

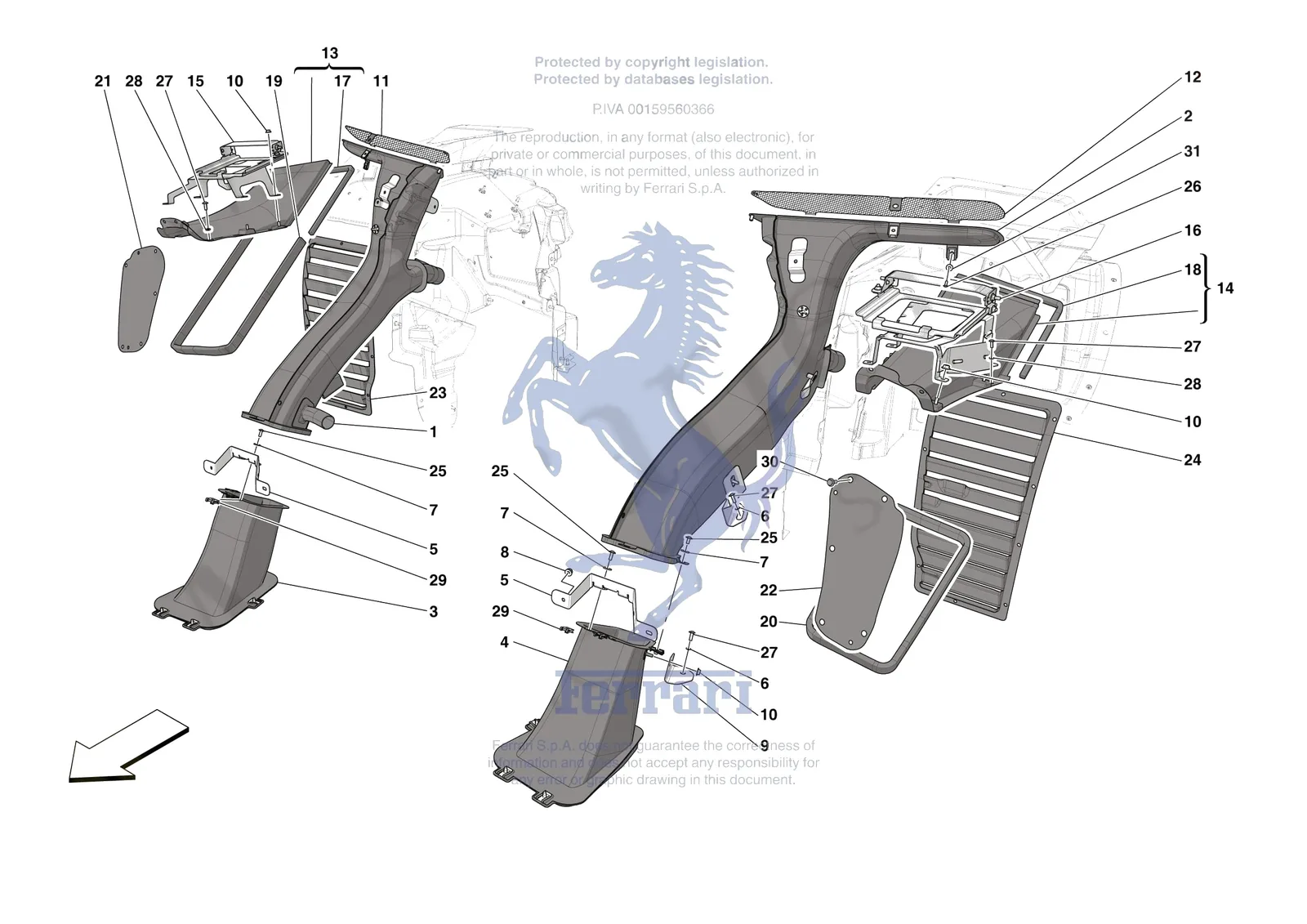

![Ferrari Daytona SP3 [VEHICLE TRIM] - E.23 - LATERAL AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0122.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 788900 | Ferrari Compl. RH Upper Duct - 788900 | $10,948.84 | Special order, ships in 7-14 days |
| 1 | 913903 | Ferrari Compl. RH Upper Duct - 913903 | Superseded | Order 788900 instead |
| 2 | 788899 | Ferrari Compl. LH Upper Duct - 788899 | $12,236.26 | Special order, ships in 7-14 days |
| 2 | 913901 | Ferrari Compl. LH Upper Duct - 913901 | Superseded | Order 788899 instead |
| 3 | 55012370 | Ferrari Compl. RH Lower Duct - 55012370 | $3,611.29 | Special order, ships in 7-14 days |
| 3 | 905581 | Ferrari Compl. RH Lower Duct - 905581 | $3,611.29 | Special order, ships in 7-14 days |
| 4 | 55012364 | Ferrari Compl. LH Lower Duct - 55012364 | $3,611.29 | Special order, ships in 7-14 days |
| 4 | 905585 | Ferrari Compl. LH Lower Duct - 905585 | $3,611.29 | Special order, ships in 7-14 days |
| 5 | 772890 | Ferrari LH Front Duct Fastener Brack - 772890 | $130.47 | Special order, ships in 7-14 days |
| 6 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 7 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
| 8 | 301909 | Ferrari Self-Locking Nut M6 - 301909 | $3.26 | Special order, ships in 7-14 days |
| 9 | 772893 | Ferrari Lateral Fastener Bracket For - 772893 | $68.92 | Special order, ships in 7-14 days |
| 9 | 772894 | Ferrari Lateral Fastener Bracket For - 772894 | $68.92 | Special order, ships in 7-14 days |
| 10 | 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead |
| 13 | 788651 | Ferrari Compl. RH Duct - 788651 | $2,541.97 | Special order, ships in 7-14 days |
| 14 | 788652 | Ferrari Compl. LH Duct - 788652 | $2,541.97 | Special order, ships in 7-14 days |
| 15 | 772915 | Ferrari RH Ignition ECU Bracket - 772915 | $517.04 | Special order, ships in 7-14 days |
| 16 | 772913 | Ferrari LH Ignition ECU Bracket - 772913 | $517.04 | Special order, ships in 7-14 days |
| 17 | 783463 | Ferrari RH Radiator Duct Gasket - 783463 | $30.61 | Special order, ships in 7-14 days |
| 18 | 773378 | Ferrari LH Radiator Duct Gasket - 773378 | $30.61 | Special order, ships in 7-14 days |
| 19 | 834923 | Ferrari RH Flank Duct Gasket - 834923 | $54.68 | Special order, ships in 7-14 days |
| 20 | 834919 | Ferrari LH Flank Duct Gasket - 834919 | $50.31 | Special order, ships in 7-14 days |
| 21 | 772872 | Ferrari RH Flank Air Intake Mesh - 772872 | $159.75 | Special order, ships in 7-14 days |
| 22 | 772871 | Ferrari LH Flank Air Intake Mesh - 772871 | $159.75 | Special order, ships in 7-14 days |
| 23 | 947093 | Ferrari Slatted RH Rear WheeLHouse G - 947093 | $262.62 | Special order, ships in 7-14 days |
| 24 | 947092 | Ferrari Slatted LH Rear WheeLHouse G - 947092 | $262.62 | Special order, ships in 7-14 days |
| 25 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 26 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
| 27 | 86001300 | Ferrari Screw - 86001300 | $4.14 | Special order, ships in 7-14 days |
| 28 | 89324200 | Ferrari WASHER - 89324200 | $1.36 | Special order, ships in 7-14 days |
| 29 | 62764200 | Ferrari Spire Clip - 62764200 | $0.82 | Available, ships in 3-6 days |
| 30 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 31 | 12624178 | Ferrari Washer D. 5.45 - 22 x 2 - 12624178 | $0.71 | Available, ships in 3-6 days |
