Ferrari Daytona SP3 — [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE (diagram 0149)

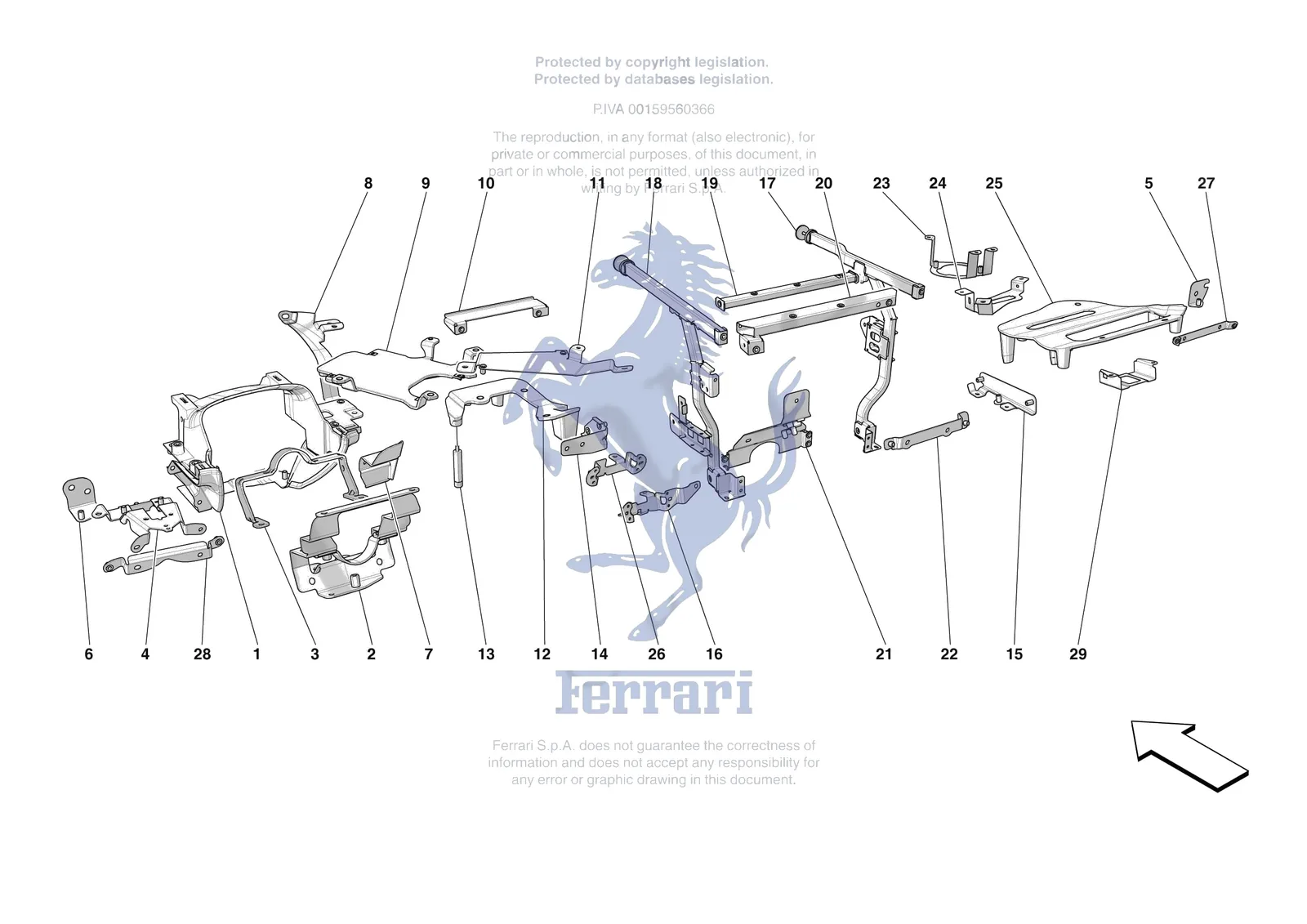

Exploded view of the [vehicle trim] - e.47.01 - dashboard - substructure on the Ferrari Daytona SP3, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0149.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 894831 | Ferrari Compl. Fixed Steering Column - 894831 | $4,455.50 | Special order, ships in 7-14 days |
| 2 | 894826 | Ferrari Lower Bracket For Manual Ste - 894826 | $174.80 | Special order, ships in 7-14 days |
| 3 | 894806 | Ferrari Upper Steering Column Bracke - 894806 | $88.61 | Special order, ships in 7-14 days |
| 4 | 894697 | Ferrari Upper Epb Control Bracket - 894697 | $103.38 | Special order, ships in 7-14 days |
| 5 | 894832 | Ferrari RH Underdashboard Fastener B - 894832 | $39.37 | Special order, ships in 7-14 days |
| 6 | 894825 | Ferrari LH Underdashboard Fastener B - 894825 | $51.67 | Special order, ships in 7-14 days |
| 7 | 910427 | Ferrari Under Dashboard Bracket - 910427 | $41.82 | Special order, ships in 7-14 days |
| 8 | 894834 | Ferrari AIRBAG COVER BRACKET - 894834 | Price on request | Contact us for price and availability |
| 9 | 894768 | Ferrari Compl. Magnaride Mounting Br - 894768 | $206.81 | Special order, ships in 7-14 days |
| 10 | 894781 | Ferrari Antenna Bracket - 894781 | $147.72 | Special order, ships in 7-14 days |
| 11 | 894759 | Ferrari Voltage Stabilizer Fastener - 894759 | $86.15 | Special order, ships in 7-14 days |
| 12 | 894810 | Ferrari Bracket - 894810 | $199.41 | Special order, ships in 7-14 days |
| 13 | 741255 | Ferrari Stud Bolt - 741255 | $64.00 | Special order, ships in 7-14 days |
| 14 | 894775 | Ferrari Relay Mounting Bracket - 894775 | $100.93 | Special order, ships in 7-14 days |
| 15 | 894758 | Ferrari Bracket - 894758 | $73.85 | Special order, ships in 7-14 days |
| 16 | 894744 | Ferrari Ac Controls Bracket - 894744 | $96.01 | Special order, ships in 7-14 days |
| 17 | 840342 | Ferrari RH HVAC MOUNTING FRAME ASSEMBLY - 840342 | Price on request | Contact us for price and availability |
| 18 | 915363 | Ferrari LH HVAC MOUNTING FRAME ASSEMBLY - 915363 | Price on request | Contact us for price and availability |
| 19 | 920481 | Ferrari CENTRAL EXTRUDED ELEMENT - 920481 | Price on request | Contact us for price and availability |
| 20 | 85887800 | Ferrari Front Crossmember Complete - 85887800 | $128.01 | Special order, ships in 7-14 days |
| 21 | 911650 | Ferrari COMPL. REAR HVAC BRACKET - 911650 | Price on request | Contact us for price and availability |
| 22 | 894741 | Ferrari Centre Vent Fastener Bracket - 894741 | $59.07 | Special order, ships in 7-14 days |
| 23 | 913625 | Ferrari Glonass Speaker Bracket - 913625 | $56.60 | Special order, ships in 7-14 days |
| 24 | 915415 | Ferrari Footwell Light Bracket - 915415 | $64.00 | Special order, ships in 7-14 days |
| 25 | 894820 | Ferrari Body Computer Mounting Brack - 894820 | $295.43 | Special order, ships in 7-14 days |
| 26 | 894835 | Ferrari Lights Control Bracket - 894835 | $46.75 | Special order, ships in 7-14 days |
| 27 | 894724 | Ferrari RH Vent Fastener Bracket - 894724 | $76.30 | Special order, ships in 7-14 days |
| 28 | 894754 | Ferrari LH Vent Fastener Bracket - 894754 | $108.31 | Special order, ships in 7-14 days |
