Ferrari Daytona SP3 — [VEHICLE TRIM] - E.47.08 - DASHBOARD - PASSENGER AIRBAG (diagram 0156)
Exploded view of the [vehicle trim] - e.47.08 - dashboard - passenger airbag on the Ferrari Daytona SP3, with 7 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

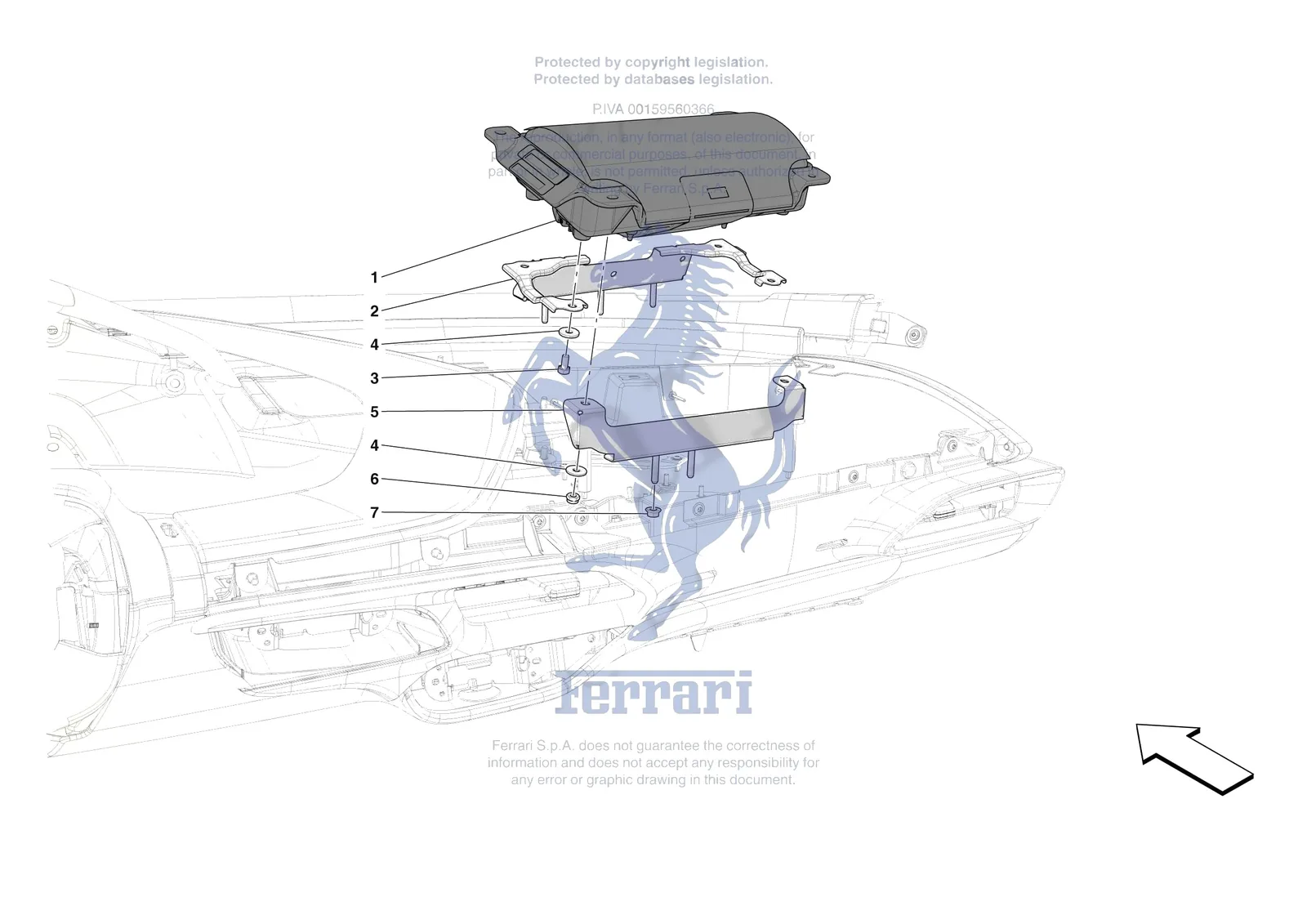

![Ferrari Daytona SP3 [VEHICLE TRIM] - E.47.08 - DASHBOARD - PASSENGER AIRBAG exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0156.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 910978 | Ferrari Passenger Airbag Module - 910978 | $1,549.03 | Special order, ships in 7-14 days |
| 2 | 894727 | Ferrari Compl. Front Bracket - 894727 | $108.31 | Special order, ships in 7-14 days |
| 3 | 10902028 | Ferrari Screw M6 x 12 - 10902028 | $0.96 | Available, ships in 3-6 days |
| 4 | 10523424 | Ferrari Washer D 6.15-18x2 - 10523424 | $0.92 | Available, ships in 3-6 days |
| 5 | 894694 | Ferrari Compl. Rear Bracket - 894694 | $81.23 | Special order, ships in 7-14 days |
| 6 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 7 | 14059290 | Ferrari Flanged Nut M6 - 14059290 | $2.82 | Available, ships in 3-6 days |
