Ferrari Daytona SP3 — [ELECTRICAL SYSTEM] - F.09 - LIGHTING SYSTEMS (diagram 0184)

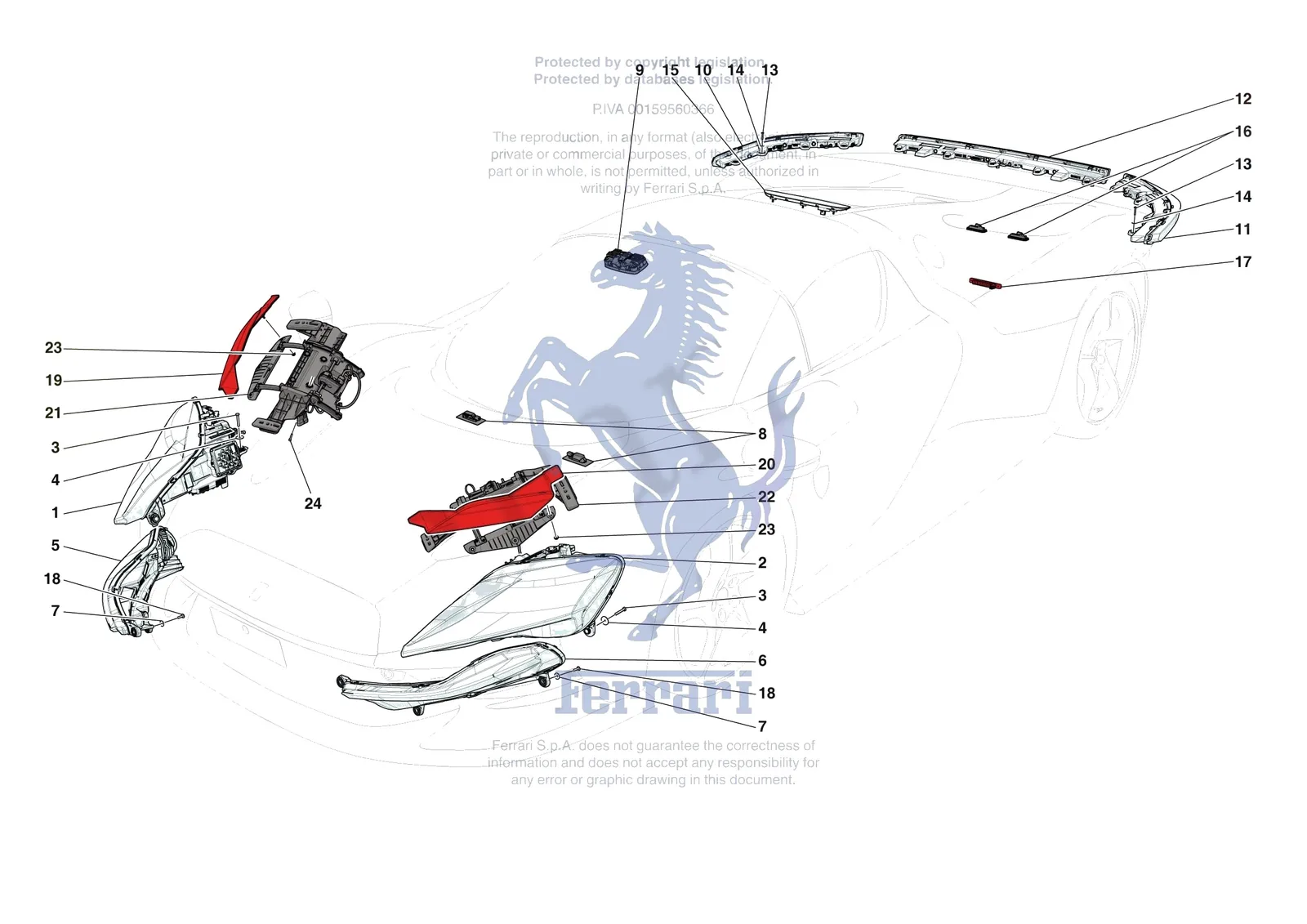

Exploded view of the [electrical system] - f.09 - lighting systems on the Ferrari Daytona SP3, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [ELECTRICAL SYSTEM] - F.09 - LIGHTING SYSTEMS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0184.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10903221 | Ferrari Bolt - 10903221 | Superseded | Order 10903224 instead | |
| 192623 | Ferrari Screw - 192623 | $5.40 | Special order, ships in 7-14 days | |
| 12640606 | Ferrari Washer - 12640606 | Superseded | Order 12640678 instead | |
| 12640608 | Ferrari Washer - 12640608 | Superseded | Order 12640678 instead | |
| 12640677 | Ferrari Washer - 12640677 | Superseded | Order 12640678 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 840237 | Ferrari RH Headlamp - 840237 | $13,382.18 | Contact us to order |
| 1 | 840619 | Ferrari RH Headlamp - 840619 | $13,294.64 | Contact us to order |
| 1 | 917365 | Ferrari RH Headlamp - 917365 | $13,450.98 | Contact us to order |
| 2 | 840236 | Ferrari LH Headlamp - 840236 | $13,382.18 | Contact us to order |
| 2 | 840618 | Ferrari LH Headlamp - 840618 | $13,294.64 | Contact us to order |
| 2 | 917364 | Ferrari LH Headlamp - 917364 | $13,498.92 | Contact us to order |
| 3 | 10903224 | Ferrari Screw M6 x 40 - 10903224 | $0.50 | Available, ships in 3-6 days |
| 4 | 12640678 | Ferrari Washer 6.15x25x2 - 12640678 | $3.47 | Available, ships in 3-6 days |
| 5 | 917230 | Ferrari RH Drl - 917230 | $5,619.67 | Special order, ships in 7-14 days |
| 6 | 917203 | Ferrari LH Drl - 917203 | $5,619.67 | Special order, ships in 7-14 days |
| 7 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 8 | 318013 | Ferrari Light Unit - 318013 | $61.45 | Special order, ships in 7-14 days |
| 9 | 744262 | Ferrari Plafoniera Padiglione - 744262 | $1,770.31 | Special order, ships in 7-14 days |
| 10 | 917264 | Ferrari RH Tail Light - 917264 | $2,001.05 | Special order, ships in 7-14 days |
| 11 | 917260 | Ferrari LH Tail Light - 917260 | $2,001.05 | Special order, ships in 7-14 days |
| 12 | 917259 | Ferrari Centre Tail Light - 917259 | $2,330.39 | Special order, ships in 7-14 days |
| 13 | 85834100 | Ferrari Screw M5 x 30 TBFTX - 85834100 | $0.79 | Special order, ships in 7-14 days |
| 14 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
| 15 | 803566 | Ferrari Rear Brake Lamp - 803566 | $372.04 | Available, ships in 3-6 days |
| 16 | 307799 | Ferrari Light - 307799 | $87.40 | Special order, ships in 7-14 days |
| 17 | 910850 | Ferrari Rear Fog Light - 910850 | $568.23 | Special order, ships in 7-14 days |
| 18 | 88004600 | Ferrari Screw 5x16 - 88004600 | $3.26 | Special order, ships in 7-14 days |
| 18 | 85833800 | Ferrari Screw M5 x 14 TBFTX - 85833800 | $0.90 | Available, ships in 3-6 days |
| 19 | 985942077 | Ferrari RH Headlamp Brow - 985942077 | $7,604.07 | Special order, ships in 7-14 days |
| 20 | 985942076 | Ferrari LH Headlamp Brow - 985942076 | $7,604.07 | Special order, ships in 7-14 days |
| 21 | 941844 | Ferrari RH Headlamp Brow Mechanism - 941844 | $3,543.55 | Special order, ships in 7-14 days |
| 22 | 941842 | Ferrari LH Headlamp Brow Mechanism - 941842 | $3,543.55 | Special order, ships in 7-14 days |
| 23 | 13046014 | Ferrari Nut - 13046014 | $0.63 | Special order, ships in 7-14 days |
| 23 | 14059121 | Ferrari Nut M5 - 14059121 | $0.31 | Available, ships in 3-6 days |
| 24 | 14358774 | Ferrari Screw - 14358774 | $1.34 | Special order, ships in 7-14 days |
