Ferrari F12 Berlinetta — Bodyshell - External Trim (diagram 100)

Exploded view of the bodyshell - external trim on the Ferrari F12 Berlinetta, with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

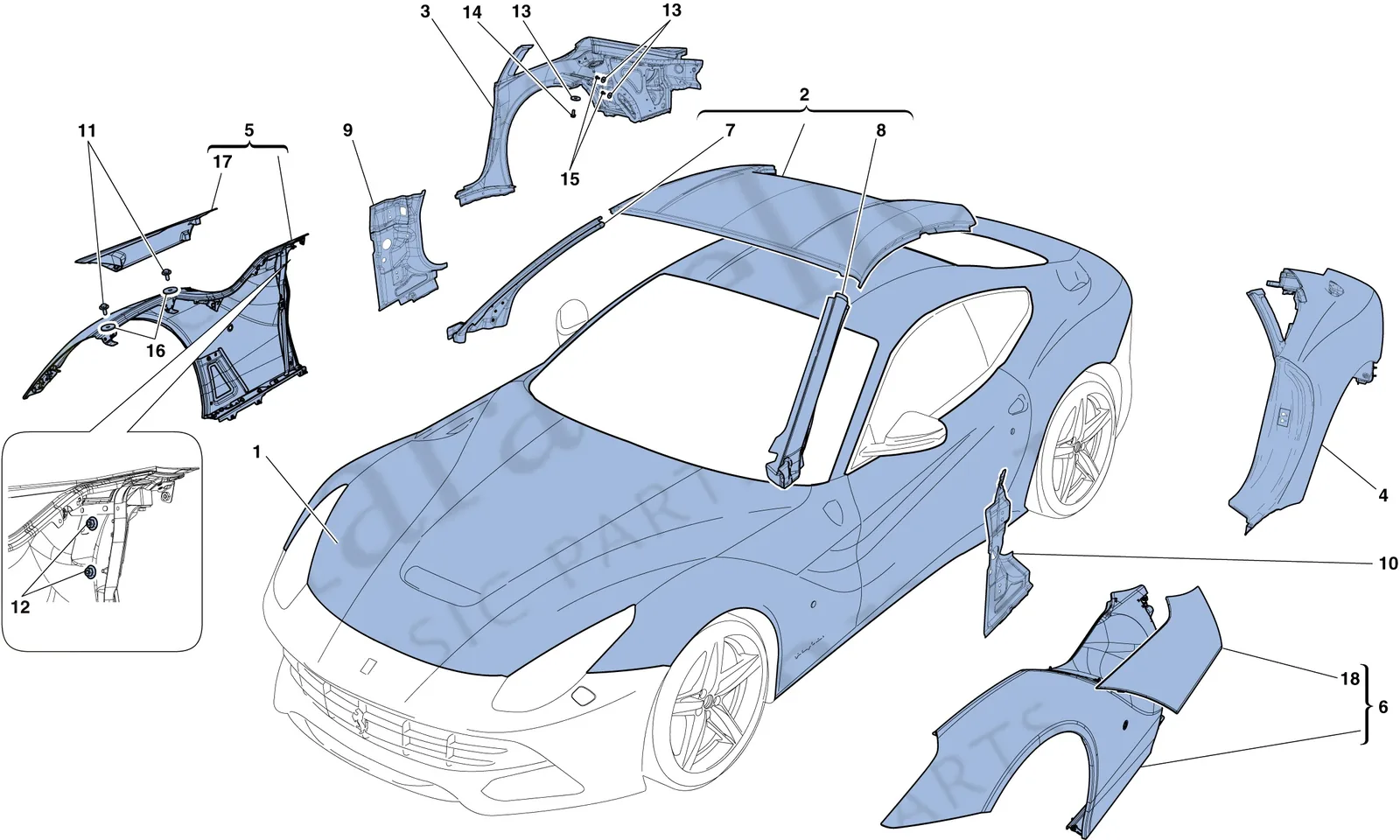

Ferrari F12 Berlinetta Bodyshell - External Trim exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
284184911Ferrari Outer Roof Skin Complete - 84184911$9,075.40Available, ships in 3-6 days
384185811Ferrari RH Rear Flank Complete - 84185811$10,194.37Contact us to order
484185911Ferrari LH Rear Flank Complete - 84185911$10,033.51Contact us to order
584186611Ferrari RH Front Fender Complete - 84186611$6,995.69Contact us to order
584375911Ferrari RH Front Fender Complete - 84375911$7,683.66Contact us to order
684186711Ferrari LH Front Fender Complete - 84186711$6,995.69Contact us to order
684376011Ferrari LH Front Fender Complete - 84376011$7,683.66Contact us to order
784225211Ferrari RH Upper Pillar External Trim - 84225211$1,841.62Special order, ships in 7-14 days
884225311Ferrari LH Upper Pillar External Trim - 84225311$1,841.62Special order, ships in 7-14 days
984400611Ferrari RH Lower Pillar External Trim - 84400611SupersededOrder 88541311 instead
988541411Ferrari RH Lower Pillar External Trim - 88541411$1,841.62Special order, ships in 7-14 days
1084400711Ferrari LH Lower Pillar External Trim - 84400711$1,101.47Special order, ships in 7-14 days
1088541311Ferrari LH Lower Pillar External Trim - 88541311$1,841.62Special order, ships in 7-14 days
1116286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
1181591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
1214039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
1312624101Ferrari Washer - 12624101$0.12Available, ships in 3-6 days
1413833224Ferrari Screw - 13833224$0.33Available, ships in 3-6 days
1513833221Ferrari Screw - 13833221$2.82Special order, ships in 7-14 days
1668040000Ferrari Washer 6X20x2 - 68040000$0.27Available, ships in 3-6 days
1784376111Ferrari RH Aerodynamic Fairing - 84376111$1,713.42Special order, ships in 7-14 days
1784376211Ferrari RH Aerodynamic Fairing - 84376211$1,864.95Special order, ships in 7-14 days
1884376311Ferrari LH Aerodynamic Fairing - 84376311$1,713.42Special order, ships in 7-14 days
1884376411Ferrari LH Aerodynamic Fairing - 84376411$1,864.95Special order, ships in 7-14 days
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead

All F12 Berlinetta diagrams
