Ferrari F12tdf — Secondary Air System (diagram 008)

Exploded view of the secondary air system on the Ferrari F12tdf, with 111 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

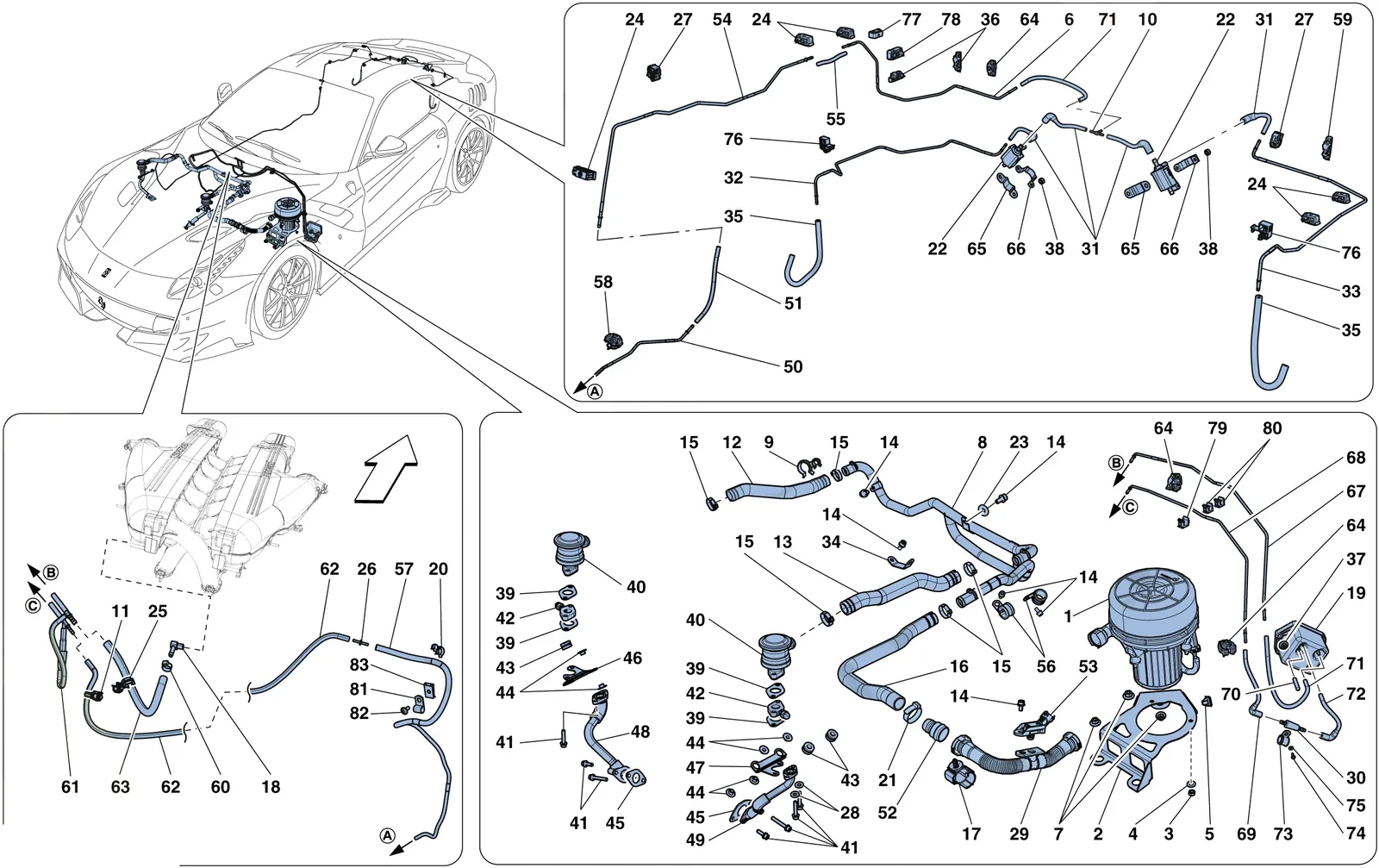

Ferrari F12tdf Secondary Air System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1247795Ferrari Secondary Air Pump - 247795$1,229.39Special order, ships in 7-14 days
2272314Ferrari Pump Mounting Bracket - 272314$137.04Special order, ships in 7-14 days
315896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
411194674Ferrari Washer - 11194674$0.92Available, ships in 3-6 days
5253769Ferrari Clip - 253769$1.17Special order, ships in 7-14 days
6293314Ferrari Rigid Pipe - 293314$108.16Special order, ships in 7-14 days
714039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
8289538Ferrari Aluminum Pipe - 289538$514.01Special order, ships in 7-14 days
9215294Ferrari Clip D9-26 - 215294SupersededOrder 225165 instead
9225165Ferrari Clip - 225165$0.71Available, ships in 3-6 days
10257691Ferrari 3 Way Union - 257691$3.26Special order, ships in 7-14 days
11319429Ferrari Clip - 319429$2.82Special order, ships in 7-14 days
12279862Ferrari RH Connector Pipe - 279862$173.76Special order, ships in 7-14 days
13274855Ferrari LH Connector Pipe - 274855$183.56Special order, ships in 7-14 days
14233600Ferrari/Maserati Screw - 233600$1.98In stock
1513128970Ferrari Collar D.25.5B - 13128970$3.26Special order, ships in 7-14 days
16279692Ferrari Engine Side Secondary Air System Hose Connector - 279692$1,101.47Special order, ships in 7-14 days
1782051100Ferrari Clip - 82051100$1.82Available, ships in 3-6 days
18319271Ferrari Connector - 319271$90.95Special order, ships in 7-14 days
19198339Ferrari Vacuum Accumulator Tank - 198339$78.66Special order, ships in 7-14 days
21262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
22178309Ferrari Solenoid Valve - 178309$132.97Available, ships in 3-6 days
2312643724Ferrari/Maserati Washer - 12643724$0.20In stock
24294206Ferrari Clip - 294206$11.12Special order, ships in 7-14 days
24280281Ferrari Clip - 280281$3.03Special order, ships in 7-14 days
25305301Ferrari Clip - 305301$1.04Special order, ships in 7-14 days
26199696Ferrari Union - 199696$21.18Special order, ships in 7-14 days
27234284Ferrari Clip - 234284$1.23Available, ships in 3-6 days
2812601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
29288959Ferrari Secondary Air System Pipe With Sensor Carrier - 288959$295.03Special order, ships in 7-14 days
30295349Ferrari Non Return Valve - 295349$76.19Special order, ships in 7-14 days
31294268Ferrari Rubber Pipe - 294268$34.40Special order, ships in 7-14 days
32281020Ferrari RH Rigid Pipe - 281020$93.40Special order, ships in 7-14 days
33269073Ferrari LH Rigid Pipe - 269073$90.95Special order, ships in 7-14 days
34289882Ferrari Pipe Mounting Bracket - 289882$14.72Special order, ships in 7-14 days
35339752Ferrari Rubber Pipe D. 3.5-8 X 250 - 339752$41.76Special order, ships in 7-14 days
36294207Ferrari Clip - 294207$11.12Special order, ships in 7-14 days
36190409Ferrari Clip - 190409$10.00Special order, ships in 7-14 days
3814059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
3814039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
39186781Ferrari/Maserati Secondary Air Gasket - 186781$6.05In stock
40284235Ferrari Secondary Air System Valve - 284235$417.97Available, ships in 3-6 days
41231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
41231623Ferrari Screw M6 x 40 TCEI - 231623$1.02Available, ships in 3-6 days
4110902824Ferrari Screw M6 x 30 - 10902824$0.17Available, ships in 3-6 days
42264020Ferrari RH Spacer Assembly - 264020$110.61Special order, ships in 7-14 days
42286011Ferrari LH Spacer Assembly - 286011$98.32Special order, ships in 7-14 days
43177576Ferrari Cable Grommet - 177576$4.12Available, ships in 3-6 days
44183898Ferrari Bush - 183898$5.44Special order, ships in 7-14 days
45202980Ferrari Gasket - 202980$4.89Available, ships in 3-6 days
46258254Ferrari RH Valve Fastener Bracket - 258254$20.30Special order, ships in 7-14 days
47258252Ferrari LH Valve Fastener Bracket - 258252$20.30Special order, ships in 7-14 days
48256598Ferrari Pipe From Air Valve To RH Head - 256598$489.54Special order, ships in 7-14 days
49256596Ferrari Pipe From Air Valve To LH Head - 256596$489.54Special order, ships in 7-14 days
50284631Ferrari Emissions Control Pipe - 284631$122.92Special order, ships in 7-14 days
51264088Ferrari Rubber Pipe - 264088$14.97Special order, ships in 7-14 days
52267093Ferrari Coupling - 267093$44.24Special order, ships in 7-14 days
53282849Ferrari Pressure Sensor - 282849$61.16Special order, ships in 7-14 days
54284629Ferrari Rigid Pipe - 284629$125.37Special order, ships in 7-14 days
55199691Ferrari Rubber Pipe D 3.5-8x120 - 199691$8.82Special order, ships in 7-14 days
5610450690Ferrari P Clip Bracket With Sheath - 10450690$1.25Available, ships in 3-6 days
57289048Ferrari Rubber Pipe 3.5-8x950 - 289048$117.99Special order, ships in 7-14 days
58284622Ferrari Clip - 284622$3.47Special order, ships in 7-14 days
6013432070Ferrari/Maserati Screw Collar / Hose Clamp - 13432070$0.95In stock
61327787Ferrari Vacuum Piping Complete - 327787$467.15Special order, ships in 7-14 days
62319519Ferrari Rubber Pipe - 319519$66.35Special order, ships in 7-14 days
63319507Ferrari Rubber Pipe - 319507$51.62Special order, ships in 7-14 days
64234285Ferrari Clip - 234285$1.40Available, ships in 3-6 days
65294259Ferrari Solenoid Valve Mounting Bracket - 294259$31.80Special order, ships in 7-14 days
65329823Ferrari Solenoid Valve Mounting Bracket - 329823Price on requestContact us for price and availability
66294260Ferrari Solenoid Valve Mounting Bracket - 294260$39.14Special order, ships in 7-14 days
66329824Ferrari Solenoid Valve Mounting Bracket - 329824$44.03Special order, ships in 7-14 days
67274272Ferrari Rigid Pipe On Firewall LHD - 274272$73.73Special order, ships in 7-14 days
67295778Ferrari Rubber Pipe - 295778$58.98Special order, ships in 7-14 days
68295777Ferrari Rubber Pipe RHD - 295777$51.62Special order, ships in 7-14 days
68274271Ferrari Tank Vacuum Rigid Pipe On Firewall LHD - 274271$73.73Special order, ships in 7-14 days
69294265Ferrari Rubber Pipe - 294265$29.48Special order, ships in 7-14 days
70225098Ferrari Cap 4x29 - 225098$2.82Available, ships in 3-6 days
71115412Ferrari Rubber Pipe - 115412$7.34Available, ships in 3-6 days
7310441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
7415516204Ferrari Screw 4 x 12 - 15516204$0.59Available, ships in 3-6 days
7512637878Ferrari Washer - 12637878$0.19Available, ships in 3-6 days
76294205Ferrari Clip - 294205$11.12Special order, ships in 7-14 days
79140130Ferrari Clip - 140130$0.27Available, ships in 3-6 days
80141546Ferrari Clip D8mm - 141546$0.44Available, ships in 3-6 days
8110418501Ferrari P Clip Clamp 10mm - 10418501$6.54Available, ships in 3-6 days
8285692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
8265366700Ferrari Screw 5x12 TBEI - 65366700$1.74Available, ships in 3-6 days
8366927700Ferrari Bracket with Collar - 66927700$1.99Available, ships in 3-6 days
275374Ferrari 3 Way Union - 275374SupersededOrder 257691 instead
262112Ferrari Collar - 262112SupersededOrder 262111 instead
284630Ferrari Rigid Pipe - 284630SupersededOrder 293314 instead
294215Ferrari Rubber Pipe - 294215SupersededOrder 294265 instead
294216Ferrari Rubber Pipe - 294216SupersededOrder 294268 instead
295301Ferrari Rubber Pipe - 295301SupersededOrder 294268 instead
280051Ferrari Rubber Pipe 3.5-8 - 280051$88.09Special order, ships in 7-14 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
252813Ferrari Shim - 252813SupersededOrder 264020 instead
210653Ferrari Spacer - 210653SupersededOrder 264020 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
