Ferrari F12tdf — Cooling - Radiators And Air Ducts (diagram 020)

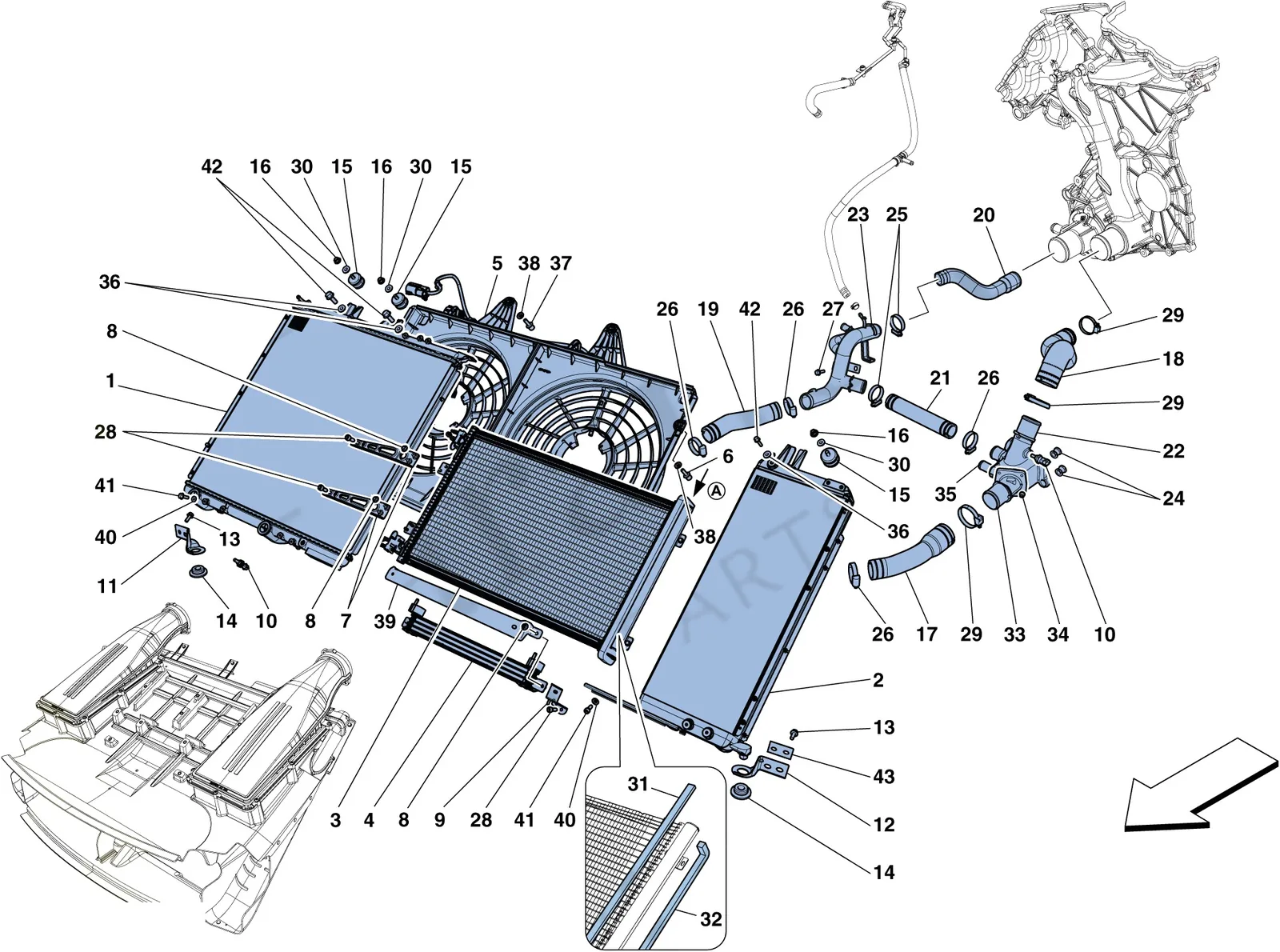

Exploded view of the cooling - radiators and air ducts on the Ferrari F12tdf, with 68 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F12tdf Cooling - Radiators And Air Ducts exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1303057Ferrari Engine Water Radiator - 303057SupersededOrder 333926 instead
2277227Ferrari Engine Oil Radiator - 277227$3,102.77Special order, ships in 7-14 days
3265489Ferrari Air Con Filter Condenser - 265489$1,005.35Available, ships in 3-6 days
4310424Ferrari Steering Oil Cooler Radiator - 310424$470.02Available, ships in 3-6 days
5295049Ferrari Cowl With Electric Fans - 295049$2,969.94Special order, ships in 7-14 days
5328095Ferrari Cowl With Electric Fans - 328095$4,084.27Special order, ships in 7-14 days
616285227Ferrari Screw M5 x 20 - 16285227$0.59Available, ships in 3-6 days
7268656Ferrari Condenser Mounting Bracket - 268656$66.35Special order, ships in 7-14 days
813046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
9297846Ferrari LH Power Steering Fluid Radiator Mounting Bracket - 297846$440.56Special order, ships in 7-14 days
9297845Ferrari RH Power Steering Fluid Radiator Mounting Bracket - 297845$440.56Special order, ships in 7-14 days
10180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
11328405Ferrari Lower RH Bracket - 328405$117.99Special order, ships in 7-14 days
11284549Ferrari RH Lower Bracket - 284549$97.88Special order, ships in 7-14 days
12328406Ferrari LH Lower Bracket - 328406$117.99Special order, ships in 7-14 days
12284548Ferrari LH Lower Bracket - 284548$97.88Special order, ships in 7-14 days
12329394Ferrari LH Lower Bracket - 329394SupersededOrder 328406 instead
1316287127Ferrari Screw 8x20 - 16287127$0.92Special order, ships in 7-14 days
14138926Ferrari Rubber Spacer - 138926$8.72Available, ships in 3-6 days
14307674Ferrari Radiator Mounting Bush - 307674$12.99Special order, ships in 7-14 days
15271472Ferrari Plug - 271472$22.60Special order, ships in 7-14 days
1614040711Ferrari Nut M8 - 14040711$0.79Available, ships in 3-6 days
17260080Ferrari Valve To Radiator Water Hose - 260080$318.19Available, ships in 3-6 days
18290951Ferrari Water Hose From Engine To Valve - 290951$614.67Special order, ships in 7-14 days
19258630Ferrari Radiator Return Hose - 258630$66.35Available, ships in 3-6 days
20290949Ferrari Return Hose To Pump - 290949$95.43Special order, ships in 7-14 days
21270452Ferrari Water Hose from Valve - 270452$110.61Special order, ships in 7-14 days
22267849Ferrari Thermostat Compartment - 267849SupersededOrder 55057228 instead
23290950Ferrari Metal Water Recirculation Connector Pipe - 290950$611.91Special order, ships in 7-14 days
24267300Ferrari Mount Bushing - 267300$13.18In stock
25262113Ferrari Collar - 262113$3.68Special order, ships in 7-14 days
2613000690Ferrari/Maserati Hose Clamp - 13000690$1.49In stock
2716286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
2816284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
2816284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
29296345Ferrari Collar - 296345$5.00Special order, ships in 7-14 days
3012647024Ferrari Washer - 12647024$1.02Available, ships in 3-6 days
31282469Ferrari Rubber Shim 440X15 - 282469$4.54Special order, ships in 7-14 days
32282580Ferrari Rubber Shim 15X15X50 - 282580$10.85Special order, ships in 7-14 days
33262913Ferrari Thermostat/Pressure Switch - 262913$371.08In stock
34231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
35228438Ferrari Connector - 228438$18.32Special order, ships in 7-14 days
36166467Ferrari Wavy Washer D. 5 - 10 mm - 166467$1.80Available, ships in 3-6 days
3812643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
39289445Ferrari Power Steering Radiator Shield - 289445$227.62Special order, ships in 7-14 days
4012638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
4116285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
4216281827Ferrari Screw 5x14 - 16281827$0.46Special order, ships in 7-14 days
43329502Ferrari Plate - 329502$17.92Special order, ships in 7-14 days
105303Ferrari Clamp - 105303SupersededOrder 13000690 instead
12173990Ferrari Clip - 12173990SupersededOrder 13000690 instead
286394Ferrari Cowl With Electric Fans - 286394SupersededOrder 295049 instead
295914Ferrari Cowl With Electric Fans - 295914SupersededOrder 295049 instead
294902Ferrari Damped Mounting - 294902SupersededOrder 267300 instead
263428Ferrari Engine Oil Radiator - 263428SupersededOrder 277227 instead
333926Ferrari Engine Water Radiator - 333926$2,028.13Available, ships in 3-6 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
12174090Ferrari Hose Clip 32-50 - 12174090SupersededOrder 13000690 instead
12177090Ferrari Hose Clip 32-50 - 12177090SupersededOrder 13000690 instead
240007Ferrari Oil Radiator - 240007SupersededOrder 310424 instead
261216Ferrari Oil Radiator - 261216SupersededOrder 310424 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
55057228Ferrari Thermostat Compartment - 55057228$1,253.96Special order, ships in 7-14 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
