Ferrari F355 B/GTS/Spider Mo. 2.7 — Doors - Inner Trims (diagram 124)

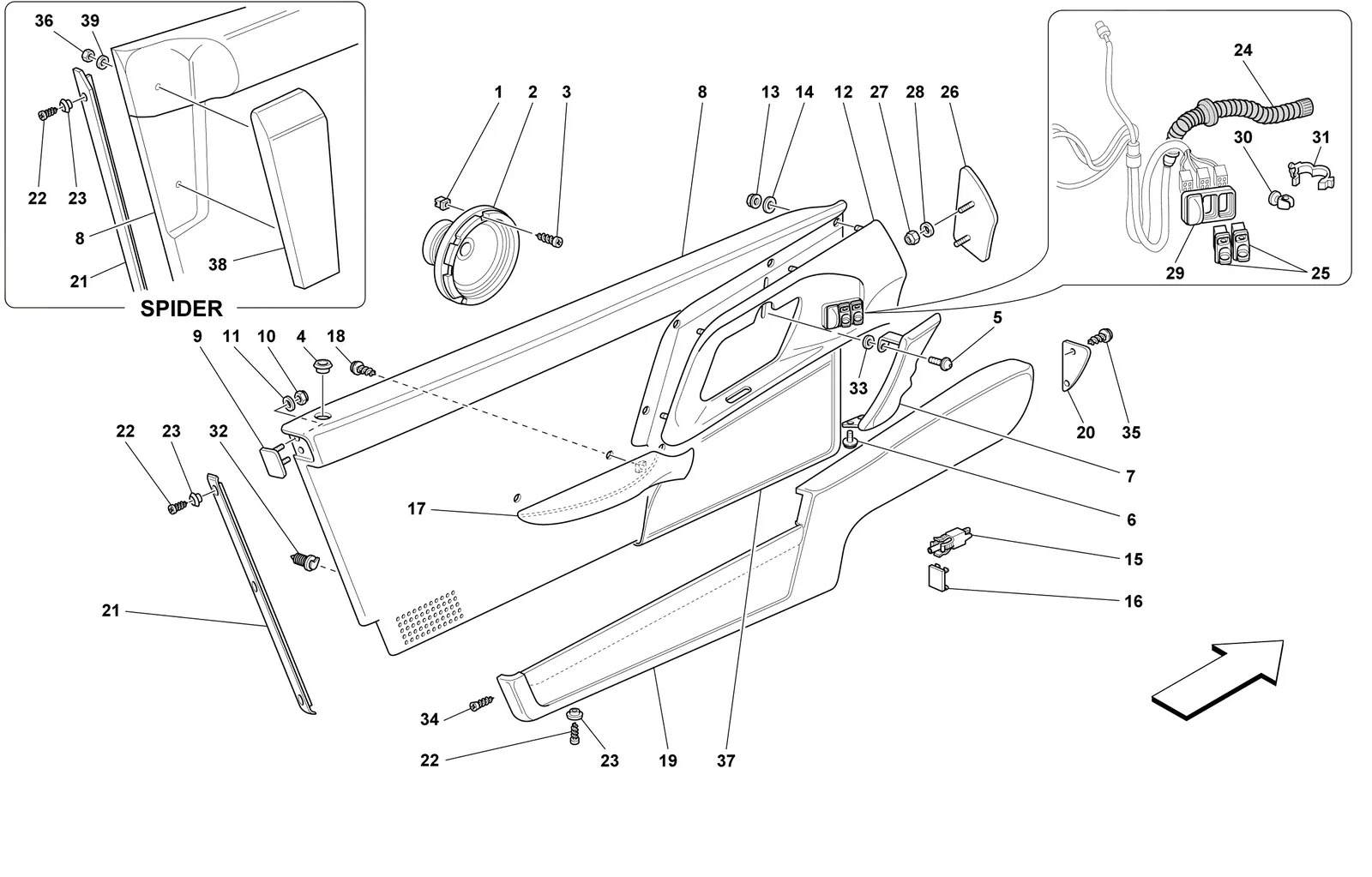

Exploded view of the doors - inner trims on the Ferrari F355 B/GTS/Spider Mo. 2.7, with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 14215480 | Ferrari Plastic Screw Block D4 - 14215480 | $0.46 | Available, ships in 3-6 days |
| 2 | 141392 | Ferrari Loud Speaker - 141392 | Price on request | Contact us for price and availability |
| 3 | 15687270 | Ferrari Screw - 15687270 | $0.73 | Available, ships in 3-6 days |
| 4 | 61617500 | Ferrari Bush - Door Lock Button - 61617500 | Price on request | Contact us for price and availability |
| 5 | 64686900 | Ferrari Trim Screw M6 x 16 TCCIC - 64686900 | $0.59 | Available, ships in 3-6 days |
| 6 | 13836324 | Ferrari Screw M6 - 13836324 | Price on request | Contact us for price and availability |
| 10 | 169180 | Ferrari Nyloc Nut M5 x 6.3 - 169180 | $0.31 | Available, ships in 3-6 days |
| 10 | 12574115 | Ferrari Nut - 12574115 | Superseded | Order 169180 instead |
| 11 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 11 | 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead |
| 13 | 14084111 | Ferrari Nut - 14084111 | Superseded | Order 11673111 instead |
| 14 | 12637824 | Ferrari Washer - 12637824 | $0.13 | Available, ships in 3-6 days |
| 15 | 134423 | Ferrari Interior Door Light Switch - 134423 | $49.50 | In stock |
| 16 | 145504 | Ferrari Plug - 145504 | $1.88 | Available, ships in 3-6 days |
| 18 | 62940900 | Ferrari Allen Head Screw M6 x 15 TBEI - 62940900 | $2.59 | Available, ships in 3-6 days |
| 22 | 15908602 | Ferrari Screw - 15908602 | Price on request | Contact us for price and availability |
| 22 | 15908678 | Ferrari Screw D. 2.9 x 19 TSCIC - 15908678 | $1.23 | Special order, ships in 7-14 days |
| 23 | 62823200 | Ferrari Cup Washer - 62823200 | $0.84 | Available, ships in 3-6 days |
| 23 | 64289400 | Ferrari Cup Washer - 64289400 | $0.84 | Available, ships in 3-6 days |
| 24 | 156702 | Ferrari Bellows - 156702 | Price on request | Contact us for price and availability |
| 25 | 157194 | Ferrari LH Switch For Glass Lifter - 157194 | Price on request | Contact us for price and availability |
| 25 | 165256 | Ferrari LH Switch For Glass Lifter - 165256 | Price on request | Contact us for price and availability |
| 25 | 157193 | Ferrari RH Switch For Glass Lifter - 157193 | Price on request | Contact us for price and availability |
| 25 | 165257 | Ferrari RH Switch For Glass Lifter - 165257 | Price on request | Contact us for price and availability |
| 29 | 63963600 | Ferrari F355 Passenger Window Switch Bezel Trim - 63963600 | $76.89 | In stock |
| 29 | 63963700 | Ferrari F355 Driver Window Switch Bezel Trim - 63963700 | $98.00 | In stock |
| 29 | 64251800 | Ferrari Pilot Side Switch Console RHD - 64251800 | Superseded | Order 70002901 instead |
| 29 | 64251700 | Ferrari Passenger Switch Console RHD - 64251700 | Price on request | Contact us for price and availability |
| 30 | 60123502 | Ferrari RH Door Clip - 60123502 | Price on request | Contact us for price and availability |
| 30 | 157385 | Ferrari LH Door Clip - 157385 | $0.38 | Available, ships in 3-6 days |
| 32 | 66092400 | Ferrari Trim Clip - 66092400 | $0.25 | In stock |
| 32 | 14188181 | Ferrari Plastic Trim Clip - 14188181 | $0.50 | Available, ships in 3-6 days |
| 33 | 12640624 | Ferrari Plain Washer 6mm - 12640624 | $0.31 | Available, ships in 3-6 days |
| 34 | 15915077 | Ferrari Screw - 15915077 | $2.07 | Available, ships in 3-6 days |
| 35 | 62781600 | Ferrari Screw - 62781600 | Superseded | Order 65206700 instead |
| 35 | 65206700 | Ferrari Screw - 65206700 | $1.30 | Available, ships in 3-6 days |
| 36 | 64630500 | Ferrari Nut - 64630500 | Price on request | Contact us for price and availability |
| 38 | 64694100 | Ferrari LH Door Protection - 64694100 | $203.15 | Special order, ships in 7-14 days |
| 38 | 64694000 | Ferrari RH Door Protection - 64694000 | $190.90 | Special order, ships in 7-14 days |
| 39 | 12642801 | Ferrari Washer - 12642801 | $0.19 | Available, ships in 3-6 days |
| 70002901 | Ferrari Frame - 70002901 | $758.78 | Special order, ships in 7-14 days | |
| 174680 | Ferrari Loud Speaker - 174680 | Price on request | Contact us for price and availability | |
| 12574121 | Ferrari Nyloc Nut White - 12574121 | Superseded | Order 169180 instead | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 14498804 | Ferrari Washer - 14498804 | Superseded | Order 14498824 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead |
