Ferrari F355 B/GTS/Spider Mo. 5.2 / ABS Bosch F1 — Electrical System -Not For Abs Bosch And 355 F1 Cars- (diagram 139)

Exploded view of the electrical system -not for abs bosch and 355 f1 cars- on the Ferrari F355 B/GTS/Spider Mo. 5.2 / ABS Bosch F1, with 82 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

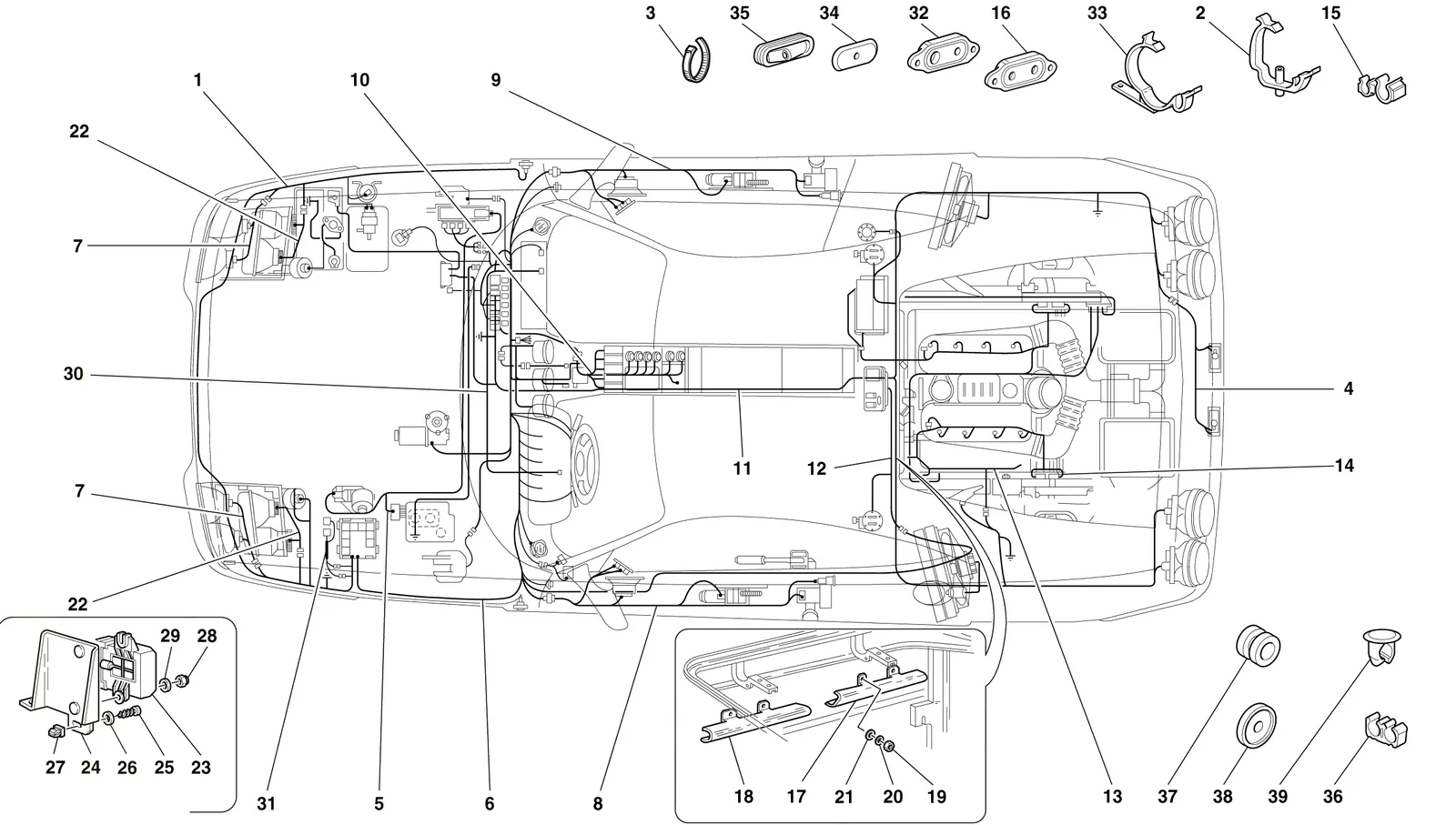

Ferrari F355 B/GTS/Spider Mo. 5.2 / ABS Bosch F1 Electrical System -Not For Abs Bosch And 355 F1 Cars- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1152181Ferrari Front Cables - 152181Price on requestContact us for price and availability
1159784Ferrari Front Cables - 159784$1,370.72Special order, ships in 7-14 days
1162928Ferrari Front Cables - 162928$9,254.89Special order, ships in 7-14 days
260991000Ferrari Wiring Loom Clip - 60991000$1.02Available, ships in 3-6 days
3145855Ferrari Clamp 208mm - 145855$0.98Special order, ships in 7-14 days
4153479Ferrari Numberplate Lights Cables - 153479Price on requestContact us for price and availability
5158042Ferrari Antiskid Device Cables LHD - 158042Price on requestContact us for price and availability
5160892Ferrari Antiskid Device Cables RHD - 160892Price on requestContact us for price and availability
6170462Ferrari Dashboard Cables - 170462Price on requestContact us for price and availability
6170464Ferrari Dashboard Cables - 170464$1,888.26Special order, ships in 7-14 days
6170465Ferrari Dashboard Cables - 170465$9,819.05Special order, ships in 7-14 days
6170466Ferrari Dashboard Cables - 170466$7,252.37Special order, ships in 7-14 days
6170470Ferrari Dashboard Cables - 170470$1,888.26Special order, ships in 7-14 days
6170472Ferrari Dashboard Cables - 170472$1,888.26Special order, ships in 7-14 days
6170450Ferrari Dashboard Cables - 170450$7,252.37Special order, ships in 7-14 days
6170452Ferrari Dashboard Cables - 170452$6,072.73Available, ships in 3-6 days
6170454Ferrari Dashboard Cables - 170454$1,888.26Special order, ships in 7-14 days
6170456Ferrari Dashboard Cables - 170456$7,252.37Special order, ships in 7-14 days
6170458Ferrari Dashboard Cables - 170458$1,888.26Special order, ships in 7-14 days
6170460Ferrari Dashboard Cables - 170460$1,888.26Special order, ships in 7-14 days
7160835Ferrari Front Lights Connecting Cables - 160835Price on requestContact us for price and availability
7161643Ferrari Front Lights Connecting Cables - 161643$215.38Special order, ships in 7-14 days
8152185Ferrari Driver Side Door Cables - 152185$3,242.69Special order, ships in 7-14 days
8163786Ferrari Driver Side Door Cables - 163786$416.09Special order, ships in 7-14 days
9152186Ferrari Passenger Side Door Cables - 152186$318.19Special order, ships in 7-14 days
9163787Ferrari Passenger Side Door Cables - 163787$342.66Special order, ships in 7-14 days
10152184Ferrari Tunnel Console Connection Cables - 152184Price on requestContact us for price and availability
10159652Ferrari Tunnel Console Connection Cables - 159652$5,403.72Special order, ships in 7-14 days
10162930Ferrari Tunnel Console Connection Cables - 162930$440.56Special order, ships in 7-14 days
10164847Ferrari Tunnel Console Connection Cables - 164847$391.61Special order, ships in 7-14 days
10159787Ferrari Tunnel Console Connection Cables - 159787$1,786.85Special order, ships in 7-14 days
11168499Ferrari Rear Cables - 168499Price on requestContact us for price and availability
11168765Ferrari Rear Cables - 168765$2,804.43Special order, ships in 7-14 days
11168540Ferrari Rear Cables - 168540$4,695.05Special order, ships in 7-14 days
11169101Ferrari Rear Cables - 169101$2,895.33Special order, ships in 7-14 days
11168998Ferrari Rear Cables - 168998$2,930.31Special order, ships in 7-14 days
11169108Ferrari Rear Cables - 169108Price on requestContact us for price and availability
11168696Ferrari Rear Cables - 168696$905.64Special order, ships in 7-14 days
11168544Ferrari Rear Cables - 168544$1,272.82Special order, ships in 7-14 days
11169103Ferrari Rear Cables - 169103$1,444.15Special order, ships in 7-14 days
12161477Ferrari Roof Light And Rear Window Defroster Cables - 161477$44.03Special order, ships in 7-14 days
13152187Ferrari Motor Utilities Connection Cables - 152187Price on requestContact us for price and availability
14168496Ferrari RH/LH Engine Injection Cables - 168496Price on requestContact us for price and availability
14170657Ferrari RH/LH Engine Injection Cables - 170657Price on requestContact us for price and availability
15159569Ferrari Cable Retainer Clip - 159569$1.51Available, ships in 3-6 days
16154758Ferrari Gasket - 154758$17.12Special order, ships in 7-14 days
17160570Ferrari Protection - 160570$61.16Special order, ships in 7-14 days
18160571Ferrari Protection - 160571$61.16Available, ships in 3-6 days
19134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
2012601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
2110519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
22138914Ferrari Connector - 138914Price on requestContact us for price and availability
23146611Ferrari Rev Counter Switch - 146611$261.07Special order, ships in 7-14 days
24164366Ferrari Sensor Plate - 164366$36.69Special order, ships in 7-14 days
2515958077Ferrari Screw - 15958077$6.75Special order, ships in 7-14 days
2612642807Ferrari Washer - 12642807$0.63Special order, ships in 7-14 days
2714202782Ferrari Block - 14202782Price on requestContact us for price and availability
28102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
31163071Ferrari Diurnal Lights Connecting Cables - 163071Price on requestContact us for price and availability
32158277Ferrari Gasket - 158277$18.32Special order, ships in 7-14 days
33160888Ferrari Fuel Pipe Clip - 160888$6.10Available, ships in 3-6 days
34157793Ferrari Gasket - 157793$8.05Special order, ships in 7-14 days
35138910Ferrari Bushing - 138910$6.94Special order, ships in 7-14 days
36145812Ferrari Pipe Clip - 145812$2.13Available, ships in 3-6 days
3710396180Ferrari Rubber Ring - 10396180$5.65Available, ships in 3-6 days
38157606Ferrari Bushing - 157606$7.59Special order, ships in 7-14 days
39139628Ferrari Clip - 139628$0.19Available, ships in 3-6 days
15896221Ferrari Nut - 15896221SupersededOrder 134041 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
146602Ferrari Rev Counter Switch - 146602SupersededOrder 146611 instead
14496406Ferrari Spring Washer - 14496406SupersededOrder 10519424 instead
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
13550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
14496405Ferrari Washer - 14496405SupersededOrder 10519424 instead
14496421Ferrari Washer - 14496421SupersededOrder 10519424 instead
14496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
