Ferrari F40 — Heat Exchangers (diagram 016)

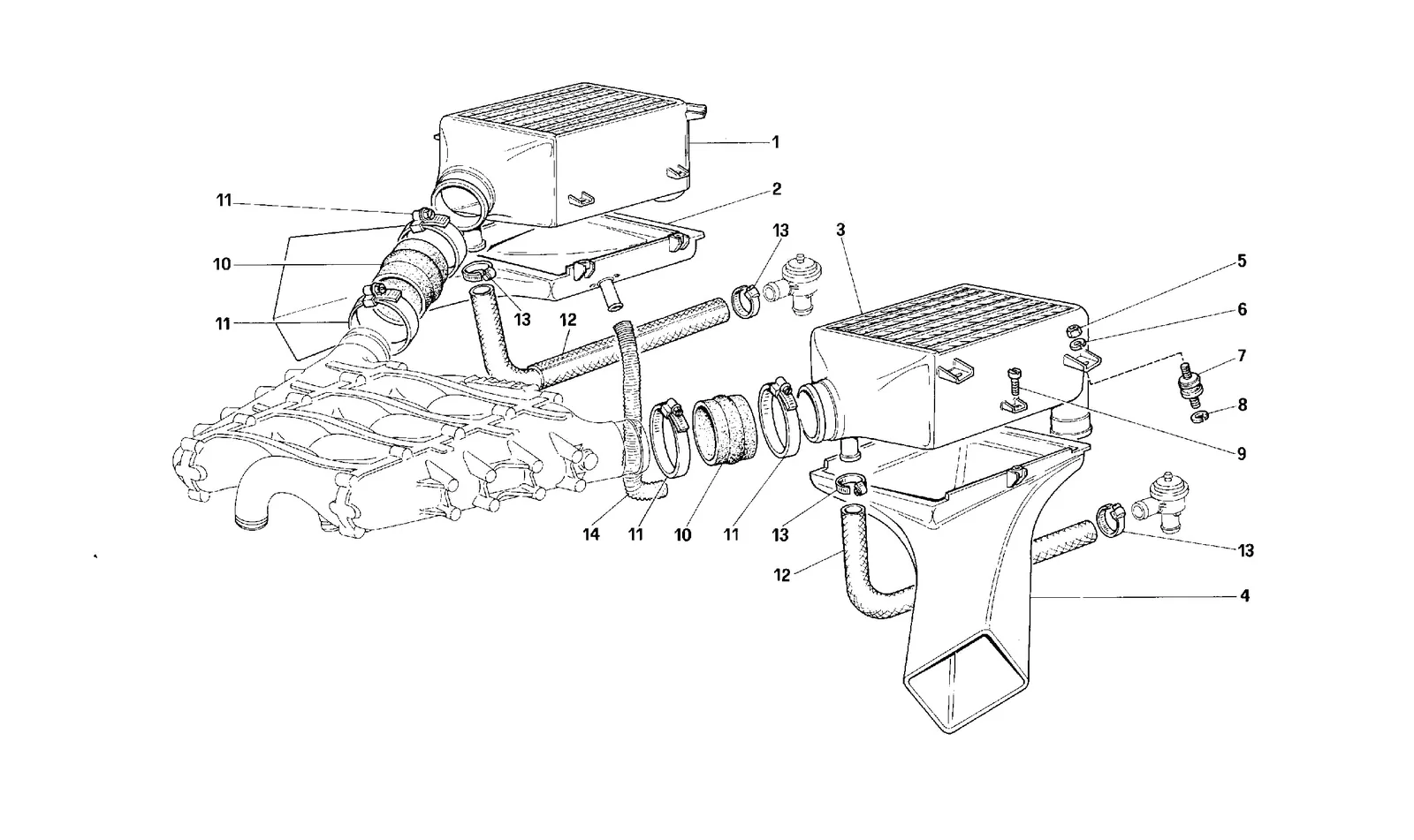

Exploded view of the heat exchangers on the Ferrari F40, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 134540 | Ferrari Heat Exchanger RH - 134540 | Price on request | Contact us for price and availability |
| 2 | 134542 | Ferrari RH Air Inlet - 134542 | Price on request | Contact us for price and availability |
| 2 | 148419 | Ferrari RH Air Inlet - 148419 | $1,737.90 | Special order, ships in 7-14 days |
| 3 | 134541 | Ferrari Heat Exchanger LH - 134541 | Price on request | Special order, ships in 7-14 days |
| 4 | 134543 | Ferrari LH Air Inlet - 134543 | Price on request | Contact us for price and availability |
| 4 | 148420 | Ferrari LH Air Inlet - 148420 | Price on request | Contact us for price and availability |
| 5 | 102948 | Ferrari Nyloc Nut M6 x 8 - 102948 | $0.46 | Available, ships in 3-6 days |
| 5 | 12574211 | Ferrari Nyloc Nut M6x1 - 12574211 | Superseded | Order 102948 instead |
| 6 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 7 | 102947 | Ferrari Vibration Dampening Support - 102947 | $8.31 | In stock |
| 8 | 119365 | Ferrari Washer 2.0mm - 119365 | $15.29 | Special order, ships in 7-14 days |
| 8 | 119364 | Ferrari Spacer Shim Washer 1.5mm - 119364 | $26.43 | Available, ships in 3-6 days |
| 8 | 119363 | Ferrari Shim Washer 1.0mm - 119363 | $9.85 | Available, ships in 3-6 days |
| 9 | 13274211 | Ferrari Screw M5 x 16 TCIC PZ - 13274211 | $0.86 | Special order, ships in 7-14 days |
| 10 | 134298 | Ferrari Tube - 134298 | Price on request | Contact us for price and availability |
| 11 | 122890 | Ferrari Clip - 122890 | $3.26 | Special order, ships in 7-14 days |
| 12 | 136883 | Ferrari Hose - 136883 | Price on request | Special order, ships in 7-14 days |
| 13 | 13000590 | Ferrari Hose Clip 25 - 40mm - 13000590 | $1.48 | Available, ships in 3-6 days |
| 13 | 12173090 | Ferrari Hose Clamp 25-40 - 12173090 | Superseded | Order 13000590 instead |
| 14 | 148302 | Ferrari Pipe - 148302 | Price on request | Contact us for price and availability |
| 102007 | Ferrari Mounting - 102007 | Superseded | Order 102947 instead | |
| 20456 | Ferrari Mounting - 20456 | Superseded | Order 102947 instead |
