Ferrari F430 Challenge — Clutch And Controls (diagram 021)

Exploded view of the clutch and controls on the Ferrari F430 Challenge, with 77 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

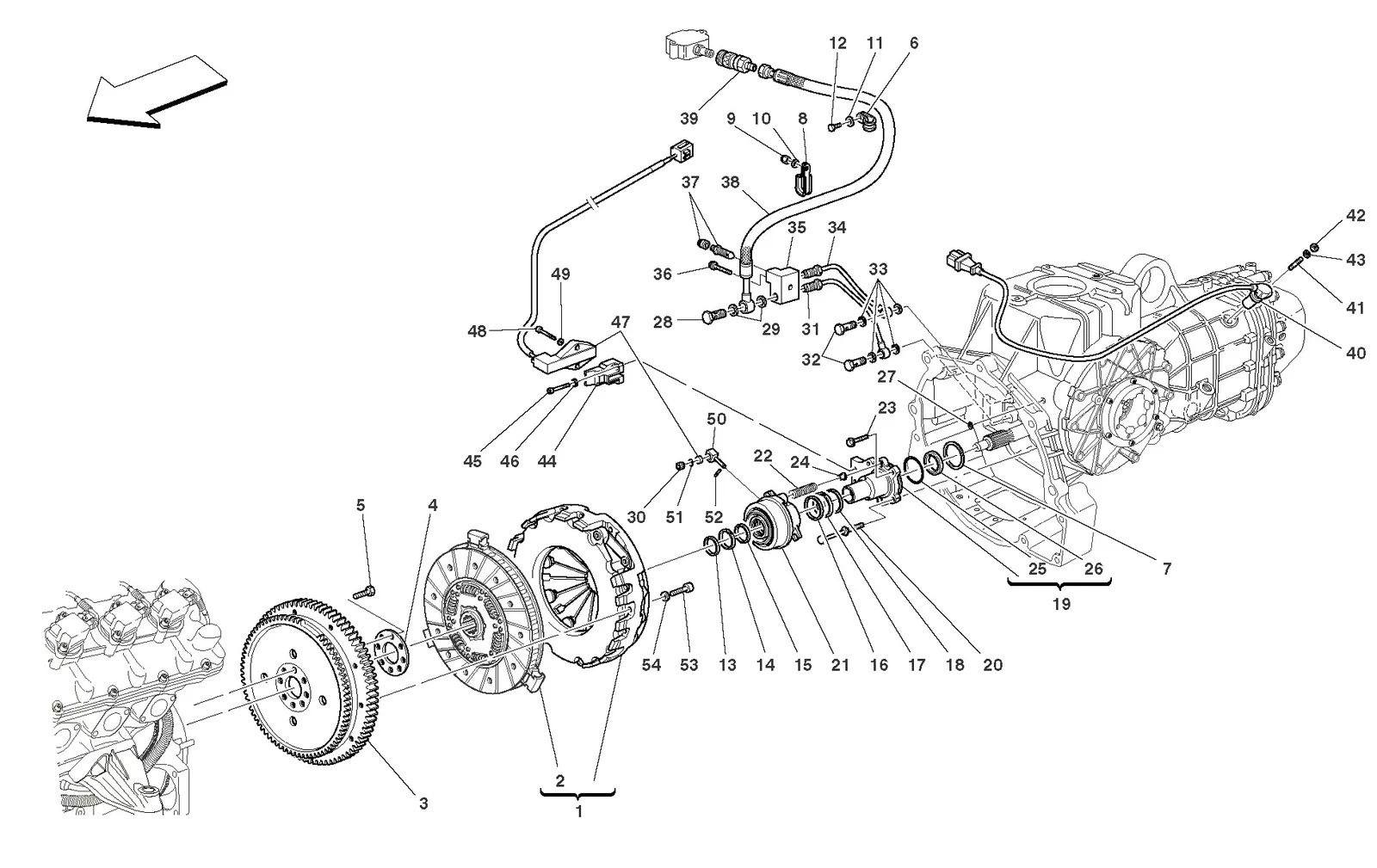

Ferrari F430 Challenge Clutch And Controls exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1225306Ferrari Clutch Complete - 225306$2,776.70Special order, ships in 7-14 days
3230425Ferrari 430/F430 Flywheel - 230425$1,098.78In stock
3202566Ferrari Engine Flywheel Complete - 202566SupersededOrder 230425 instead
4103876Ferrari Flywheel Washer - 103876$19.22Available, ships in 3-6 days
5201755Ferrari Clutch/Flywheel Bolt - 201755$3.14In stock
6121834Ferrari Pipe Clip - 121834$6.98Available, ships in 3-6 days
7173360Ferrari 360/430/Enzo Shim for Clutch Release Bearing Flange - 173360$29.26In stock
8139512Ferrari P Clip Bracket With Sheath - 139512Price on requestContact us for price and availability
9102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
1010519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
1014496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
1210979424Ferrari Screw - 10979424$0.19Available, ships in 3-6 days
13181837Ferrari/Maserati Clutch Oil Seal - 181837$33.85In stock
14208014Ferrari Ring 6mm - 208014$9.28Available, ships in 3-6 days
15181838Ferrari Seal Ring - 181838$32.50Available, ships in 3-6 days
16181828Ferrari Seal Ring - 181828$39.46Available, ships in 3-6 days
17154507Ferrari Blue Seal Ring 44mm - 154507$5.96Available, ships in 3-6 days
18181836Ferrari/Maserati Scraper Ring - 181836$42.50In stock
19207539Ferrari Support Flange - 207539$1,892.92Available, ships in 3-6 days
20201171Ferrari 430 Stud - 201171$42.35In stock
21208310Ferrari Clutch Bearing Without Seals - 208310SupersededOrder 234943 instead
22SK-CRB-430F1SFerrari/Maserati F1 Release Bearing Seal Kit - SK-CRB-430F1S$168.20In stock
2316052024Ferrari Bolt M8 x 23 - 16052024$4.54Available, ships in 3-6 days
24155206Ferrari Spacer for Thrust Bearing Spring - 155206$6.06Available, ships in 3-6 days
25136140Ferrari O-Ring Gasket - 136140$2.15In stock
26172363Ferrari Clutch Flange Seal - 172363$11.72In stock
27166432Ferrari O-Ring - 166432$0.99In stock
28171454Ferrari Banjo Bolt Union - 171454$102.23Special order, ships in 7-14 days
2910261060Ferrari/Maserati Copper Crush Washer - 10261060$0.26In stock
30167802Ferrari Plug - 167802$83.59Available, ships in 3-6 days
31180183Ferrari Clutch Control Tube - 180183SupersededOrder 242066 instead
3211903811Ferrari Banjo Bolt M10 x 1.25 - 11903811$8.05Special order, ships in 7-14 days
3310284460Ferrari Washer - 10284460$0.31Available, ships in 3-6 days
34180184Ferrari Clutch Pipe - 180184SupersededOrder 242074 instead
35235706Ferrari 360/430 Gearbox Hydraulic Union Block - 235706$115.98In stock
35196918Ferrari Union - 196918SupersededOrder 235706 instead
3616286324Ferrari Screw - 16286324$1.00In stock
37121699Ferrari Clutch Bleed Screw - 121699$65.58In stock
38174554Ferrari Clutch Pipe Complete - 174554SupersededOrder 239429 instead
39225148Ferrari Female Quick Coupling - 225148$220.26Special order, ships in 7-14 days
40168729Ferrari Sensor Gearlinkage - 168729$413.37Available, ships in 3-6 days
4111500124Ferrari Stud - 11500124$6.61Available, ships in 3-6 days
4210720124Ferrari Nut - 10720124$0.38Special order, ships in 7-14 days
4312604274Ferrari Wavy Washer 6mm - 12604274$0.12Available, ships in 3-6 days
44201160Ferrari Support - 201160$167.92Available, ships in 3-6 days
4514358524Ferrari Screw M5 x 18 - 14358524$0.19Available, ships in 3-6 days
4610519378Ferrari Spring Washer 5mm - 10519378$0.08Available, ships in 3-6 days
47219340/OEFerrari 430/F430 F1 Challenge Scuderia Clutch Sensor - 219340/OE$522.50In stock
4814303324Ferrari/Maserati Screw - 14303324$0.29In stock
4910519224Ferrari Washer - 10519224$0.12Available, ships in 3-6 days
50165567Ferrari Thrust Bearing Pin - 165567$84.83Available, ships in 3-6 days
51165658Ferrari Gasket - 165658$13.43Available, ships in 3-6 days
5214158570Ferrari/Maserati Cotter Pin - 14158570$0.88In stock
53204385Ferrari 430/F430 Clutch Cover Screw - 204385$15.00In stock
5411194379Ferrari Washer - 11194379$0.65In stock
181829Ferrari Blue Seal Ring - 181829SupersededOrder 154507 instead
189184Ferrari Blue Seal Ring - 189184SupersededOrder 154507 instead
234943Ferrari Clutch Bearing Without Seals - 234943$1,835.80Available, ships in 3-6 days
242066Ferrari Clutch Control Tube - 242066$210.49Special order, ships in 7-14 days
242074Ferrari Clutch Pipe - 242074$167.85Available, ships in 3-6 days
239429Ferrari Clutch Pipe Complete - 239429$1,858.35Available, ships in 3-6 days
210469Ferrari Female Quick Coupling - 210469SupersededOrder 225148 instead
193793Ferrari R/Bearing Support Flange - 193793SupersededOrder 207539 instead
16286321Ferrari Screw - 16286321$4.24Available, ships in 3-6 days
14303224Ferrari Screw 4x16 - 14303224$1.15Special order, ships in 7-14 days
14496406Ferrari Spring Washer - 14496406SupersededOrder 10519424 instead
11500120Ferrari Stud - 11500120SupersededOrder 11500124 instead
13540820Ferrari Stud - 13540820SupersededOrder 11500124 instead
234952Ferrari Support Flange - 234952SupersededOrder 207539 instead
11500121Ferrari Threaded Stud - 11500121SupersededOrder 11500124 instead
167101Ferrari Union - 167101SupersededOrder 235706 instead
10519201Ferrari Washer - 10519201SupersededOrder 10519224 instead
10519281Ferrari Washer - 10519281SupersededOrder 10519224 instead
10519306Ferrari Washer - 10519306SupersededOrder 10519378 instead
10519377Ferrari Washer - 10519377SupersededOrder 10519378 instead
14496405Ferrari Washer - 14496405SupersededOrder 10519424 instead
14496421Ferrari Washer - 14496421SupersededOrder 10519424 instead

All F430 Challenge diagrams
