Ferrari F430 Challenge — Battery (diagram 042)

Exploded view of the battery on the Ferrari F430 Challenge, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

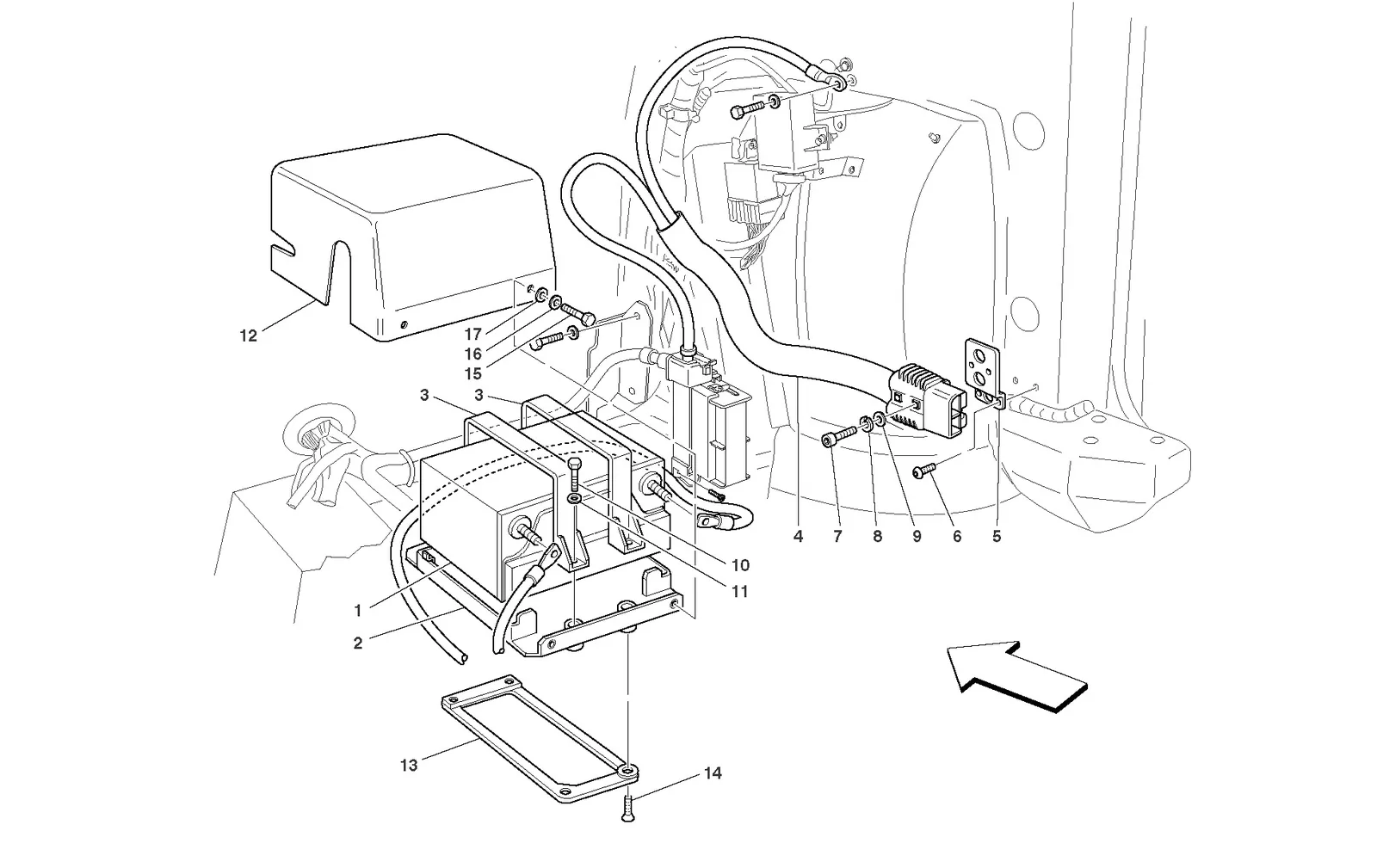

Ferrari F430 Challenge Battery exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1164713Ferrari Battery - 164713$2,565.94Special order, ships in 7-14 days
269338600Ferrari Battery Bin - 69338600$117.47Special order, ships in 7-14 days
369338900Ferrari Upper Fixing Bracket - 69338900$122.36Special order, ships in 7-14 days
4220660Ferrari Auxiliary Starting Cable - 220660$367.14Special order, ships in 7-14 days
5226150Ferrari Bracket - 226150$342.66Special order, ships in 7-14 days
6169815Ferrari Screw TBFEI M5 x 20 - 169815$3.47Available, ships in 3-6 days
714305521Ferrari Allen Screw M6 x 30 - 14305521$0.19Available, ships in 3-6 days
8238108Ferrari/Maserati Spring Washer - 238108$0.80In stock
810569279Ferrari Washer - 10569279SupersededOrder 238108 instead
910519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
914496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
1015970324Ferrari Screw - 15970324Price on requestContact us for price and availability
1112604574Ferrari Washer - 12604574$0.13Available, ships in 3-6 days
1269406200Ferrari Battery Cover - 69406200$56.27Available, ships in 3-6 days
1369338800Ferrari Plate - 69338800$78.30Special order, ships in 7-14 days
1414442521Ferrari Screw 10X1.25X 25 - 14442521$2.59Special order, ships in 7-14 days
1510977624Ferrari Screw TE M5 x 12 - 10977624$0.12Available, ships in 3-6 days
1612601174Ferrari Wavy Washer 5mm - 12601174$0.12Available, ships in 3-6 days
1712638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
14496406Ferrari Spring Washer - 14496406SupersededOrder 10519424 instead
12601171Ferrari Washer - 12601171SupersededOrder 12601174 instead
12604174Ferrari Washer - 12604174$0.06Available, ships in 3-6 days
12604178Ferrari Washer - 12604178SupersededOrder 12601174 instead
12605270Ferrari Washer - 12605270SupersededOrder 12601174 instead
12605274Ferrari Washer - 12605274SupersededOrder 12601174 instead
14496405Ferrari Washer - 14496405SupersededOrder 10519424 instead
14496421Ferrari Washer - 14496421SupersededOrder 10519424 instead
660525Ferrari Washer - 660525SupersededOrder 12601174 instead
12601179Ferrari Wavy Washer 5mm - 12601179SupersededOrder 12601174 instead
