Ferrari F430 Challenge — Passengers Compartment Foot-Board (diagram 109)

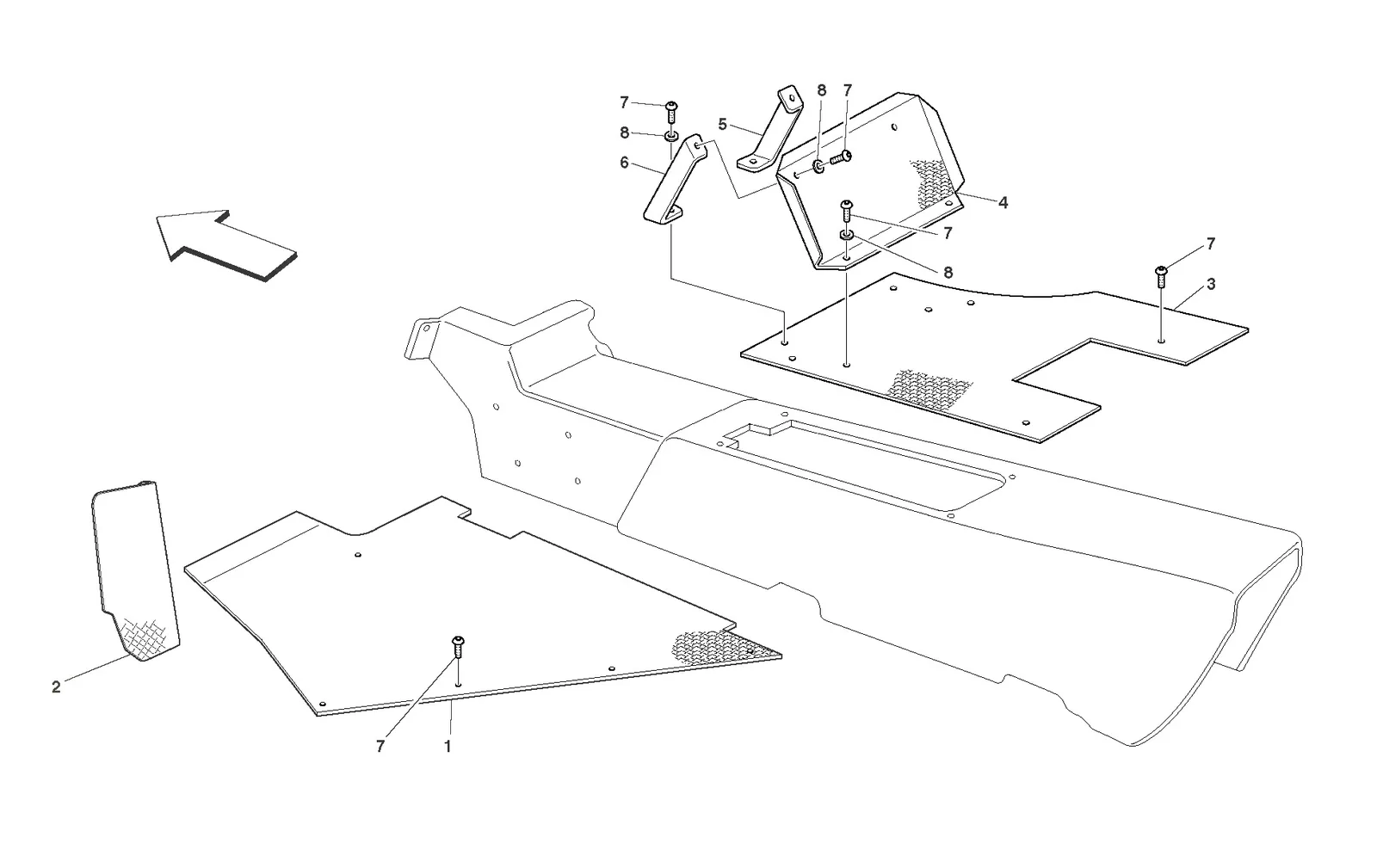

Exploded view of the passengers compartment foot-board on the Ferrari F430 Challenge, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 69395300 | Ferrari Drivers Foot-Board - 69395300 | $440.56 | Special order, ships in 7-14 days |
| 2 | 69617500 | Ferrari Drivers Foot-Board - 69617500 | $186.01 | Special order, ships in 7-14 days |
| 3 | 69739300 | Ferrari Floor Plate - 69739300 | Price on request | Contact us for price and availability |
| 4 | 69739000 | Ferrari Foot Rest - 69739000 | Price on request | Contact us for price and availability |
| 5 | 69739100 | Ferrari RH Bracket - 69739100 | Price on request | Contact us for price and availability |
| 6 | 69739200 | Ferrari LH Bracket - 69739200 | Price on request | Contact us for price and availability |
| 7 | 64727900 | Ferrari Screw - 64727900 | Superseded | Order 69847800 instead |
| 8 | 10519478 | Ferrari Washer - 10519478 | $16.83 | Available, ships in 3-6 days |
| 69847800 | Ferrari Screw 6X16 - 69847800 | $0.40 | Special order, ships in 7-14 days |
