Ferrari F430 Challenge — Doors - Window And Rearview Mirror (diagram 113)

Exploded view of the doors - window and rearview mirror on the Ferrari F430 Challenge, with 31 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

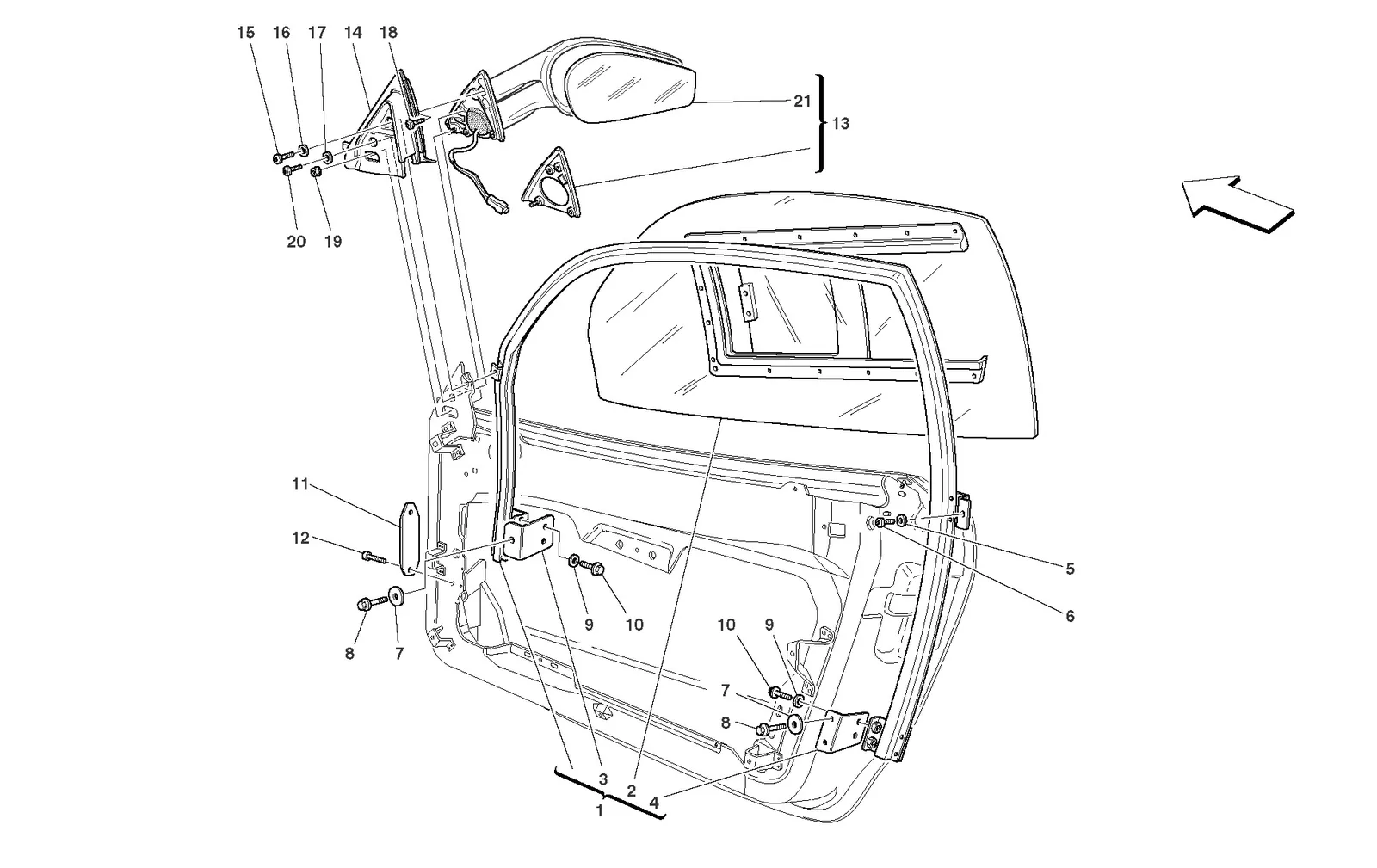

Ferrari F430 Challenge Doors - Window And Rearview Mirror exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
169659900Ferrari RH Door - 69659900Price on requestContact us to order
169660000Ferrari LH Door - 69660000Price on requestContact us to order
369605800Ferrari Front Bracket - 69605800$21.75Special order, ships in 7-14 days
469605900Ferrari RH Rear Bracket - 69605900$21.75Special order, ships in 7-14 days
469606000Ferrari LH Rear Bracket - 69606000$21.75Special order, ships in 7-14 days
512638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
614440634Ferrari SCREW - 14440634$0.31Available, ships in 3-6 days
613274014Ferrari Screw - 13274014SupersededOrder 14440634 instead
712640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
813836721Ferrari Screw M6 x 18 TEBD - 13836721$0.86Available, ships in 3-6 days
912643724Ferrari/Maserati Washer - 12643724$0.20In stock
1013836324Ferrari Screw M6 - 13836324Price on requestContact us for price and availability
1165987300Ferrari Blanking Plate - 65987300$9.28Special order, ships in 7-14 days
1213272011Ferrari Screw 4x12 - 13272011$0.44Available, ships in 3-6 days
1369338010Ferrari LH Rear View Mirror - 69338010$913.81Available, ships in 3-6 days
1369338110Ferrari RH Rear View Mirror - 69338110$522.16Available, ships in 3-6 days
1465226000Ferrari RH Mirror Gasket - 65226000$805.02Special order, ships in 7-14 days
1465226100Ferrari LH Mirror Gasket - 65226100$805.02Special order, ships in 7-14 days
1585692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
1565366700Ferrari Screw 5x12 TBEI - 65366700$1.74Available, ships in 3-6 days
1612601174Ferrari Wavy Washer 5mm - 12601174$0.12Available, ships in 3-6 days
1612601177Ferrari Washer - 12601177SupersededOrder 12601174 instead
1712637824Ferrari Washer - 12637824$0.13Available, ships in 3-6 days
1865713200Ferrari Screw - 65713200Price on requestContact us for price and availability
1913831801Ferrari Nut M5 x 4 - 13831801$0.34Available, ships in 3-6 days
2168981700Ferrari LH Outer Rear View Mirror Glass - 68981700$229.93Available, ships in 3-6 days
2168981600Ferrari RH Outer Rear View Mirror Glass - 68981600$239.31Special order, ships in 7-14 days
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead

All F430 Challenge diagrams
