Ferrari F50 — Air Conditioning System (diagram 123)

Exploded view of the air conditioning system on the Ferrari F50, with 61 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

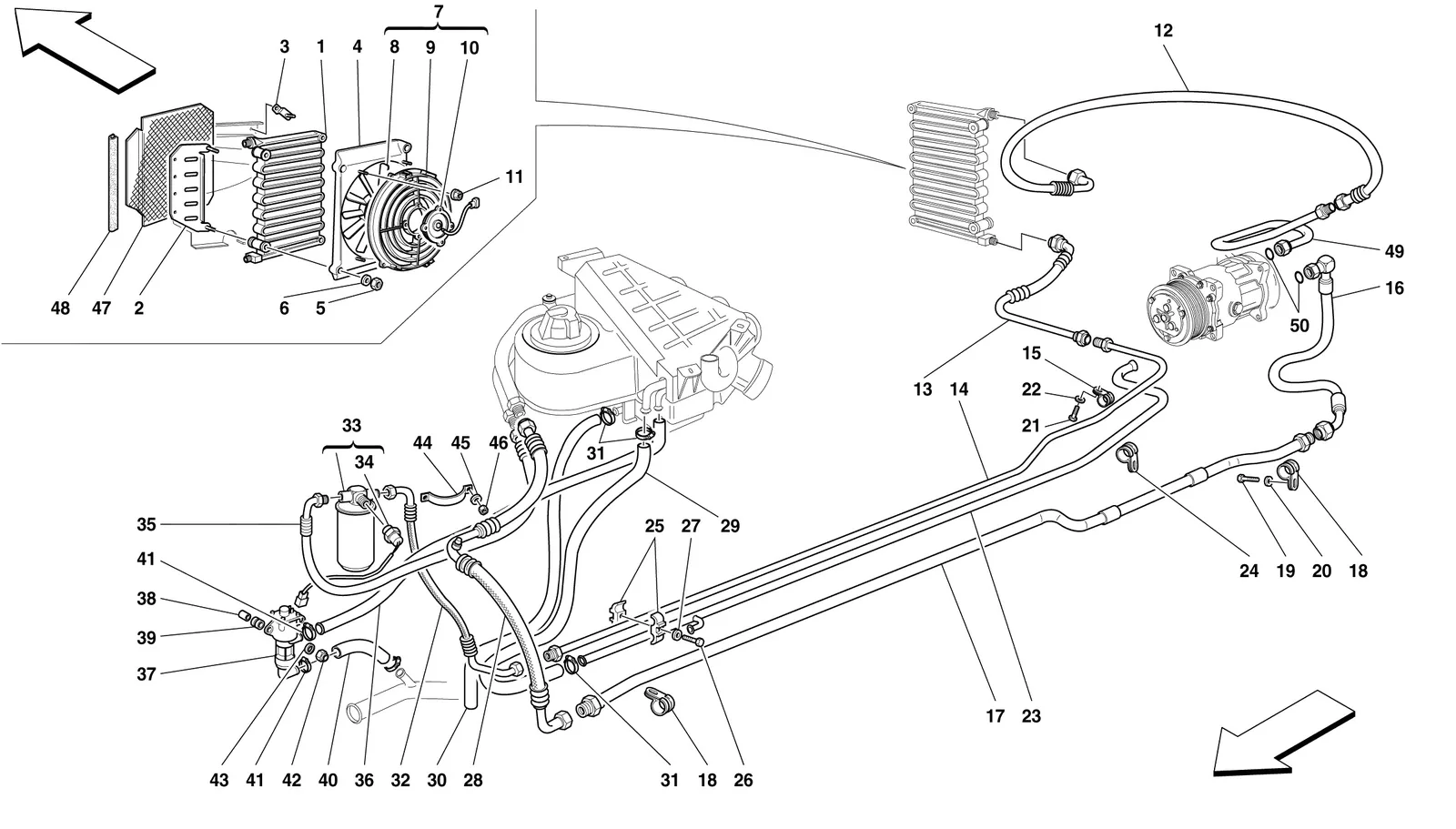

Ferrari F50 Air Conditioning System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
163665600Ferrari Ac Condenser - 63665600$1,697.09Special order, ships in 7-14 days
264161100Ferrari Ac Shield - 64161100$97.88Special order, ships in 7-14 days
364161700Ferrari Bracket - 64161700$58.73Special order, ships in 7-14 days
464644500Ferrari Air Conveyor - 64644500Price on requestContact us for price and availability
5102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
612643724Ferrari/Maserati Washer - 12643724$0.20In stock
7153431Ferrari Electric Fan - 153431$293.71Available, ships in 3-6 days
8154223Ferrari Fan Blade - 154223$416.09Special order, ships in 7-14 days
9154224Ferrari Conveyor - 154224$318.19Special order, ships in 7-14 days
10154225Ferrari Fan Motor - 154225$348.11Special order, ships in 7-14 days
1264761900Ferrari Ac Pipe - 64761900$342.66Special order, ships in 7-14 days
1363665800Ferrari Ac Pipe - 63665800$163.97Special order, ships in 7-14 days
1463665900Ferrari Ac Pipe - 63665900Price on requestContact us for price and availability
1510441390Ferrari P clip Bracket With Sheath D.12 - 10441390$1.02Available, ships in 3-6 days
1663666400Ferrari Ac Pipe - 63666400$269.23Special order, ships in 7-14 days
1763666300Ferrari Ac Pipe - 63666300$1,615.50Special order, ships in 7-14 days
1810441690Ferrari P Clip D18mm - 10441690$3.91Special order, ships in 7-14 days
1910977624Ferrari Screw TE M5 x 12 - 10977624$0.12Available, ships in 3-6 days
2011181574Ferrari Washer - 11181574$0.06Available, ships in 3-6 days
2364774400Ferrari Tube - 64774400$269.23Special order, ships in 7-14 days
2410441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
2564290100Ferrari Clip - 64290100$7.38Available, ships in 3-6 days
2610903024Ferrari Screw M6 x 35 - 10903024$0.38Available, ships in 3-6 days
2711181874Ferrari Washer - 11181874$0.06Special order, ships in 7-14 days
2863666200Ferrari Ac Pipe - 63666200$293.71Special order, ships in 7-14 days
2963666500Ferrari Water Hose - 63666500Price on requestContact us for price and availability
3064628400Ferrari Hose - 64628400Price on requestContact us for price and availability
3113000490Ferrari Screw Collar 20-32mm - 13000490$1.53Available, ships in 3-6 days
3263666000Ferrari Ac Pipe - 63666000$127.27Special order, ships in 7-14 days
3363934300Ferrari AC Dryer - 63934300$160.90In stock
3464278900Ferrari Stat For Air Con Bottle - 64278900$243.99Available, ships in 3-6 days
3462433300/AFerrari Stat For Air Con Dryer Bottle - 62433300/A$243.99Available, ships in 3-6 days
3563666100Ferrari Ac Pipe - 63666100$188.45Special order, ships in 7-14 days
3663666600Ferrari Water Hose - 63666600Price on requestContact us for price and availability
3761079000RKFerrari Heater Valve Repair Kit - 61079000RK$82.50In stock
38103550Ferrari Metal Bush Insert - 103550$8.34Available, ships in 3-6 days
39103549Ferrari Grommet - 103549$2.80In stock
4064892900Ferrari Water Hose - 64892900Price on requestContact us for price and availability
4063666700Ferrari Water Hose - 63666700Price on requestContact us for price and availability
4215896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
4312643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
4462165800Ferrari Bracket - 62165800$9.10Special order, ships in 7-14 days
4512643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
4512643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
46102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
4764690200Ferrari Grille Mesh - 64690200$348.11Special order, ships in 7-14 days
4864990400Ferrari RH Tunnel Lateral Insulation - 64990400Price on requestContact us for price and availability
4963665500Ferrari Ac Pipe - 63665500$119.91Special order, ships in 7-14 days
50172702Ferrari Gasket - 172702Price on requestContact us for price and availability
12180290Ferrari Hose Clip 19-29 - 12180290SupersededOrder 13000490 instead
10169290Ferrari Hose Clip 26-30 - 10169290SupersededOrder 13000490 instead
104022Ferrari Jubilee Clip - 104022SupersededOrder 13000390 instead
12179990Ferrari Jubilee Clip 20-32mm - 12179990SupersededOrder 13000390 instead
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead

All F50 diagrams
