Ferrari F8 Spider — [ENGINE] - B.3 - ENGINE COVERS (diagram 0006)

Exploded view of the [engine] - b.3 - engine covers on the Ferrari F8 Spider, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

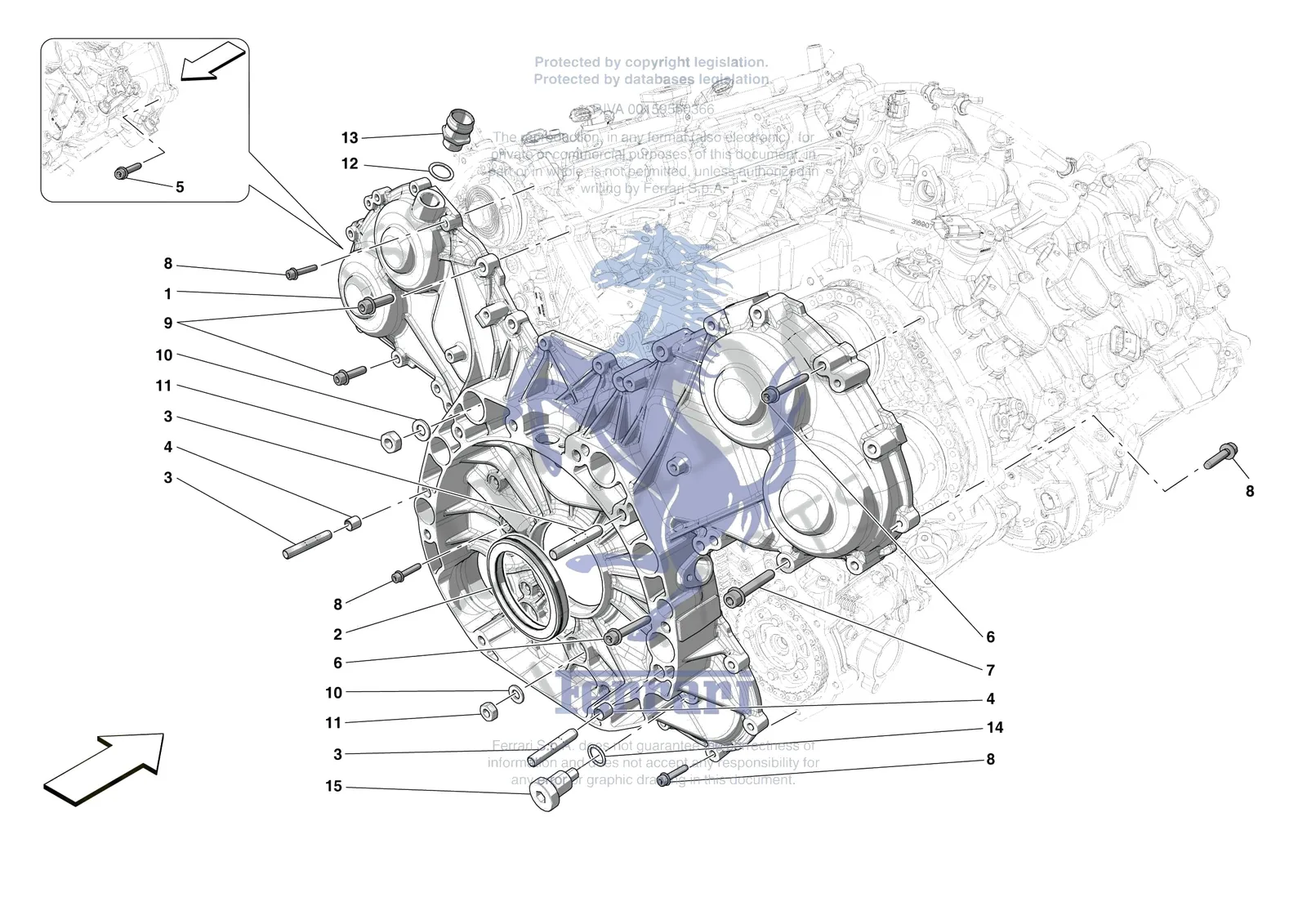

Ferrari F8 Spider [ENGINE] - B.3 - ENGINE COVERS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14306824Ferrari Bolt M8 x 45 TCEI - 14306824$1.04Available, ships in 3-6 days
242269Ferrari Rear Main Oil Seal - 242269$104.41Available, ships in 3-6 days
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
1782004Ferrari Timing Cover - 782004$2,110.49Special order, ships in 7-14 days
2240214Ferrari/Maserati Rear Main Crankshaft Oil Seal - 240214SupersededOrder 242269 instead
313546734Ferrari Stud 40mm - 13546734$2.82Available, ships in 3-6 days
4100052Ferrari Centering Dowel - 100052$4.35Available, ships in 3-6 days
5231623Ferrari Screw M6 x 40 TCEI - 231623$1.02Available, ships in 3-6 days
6231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
7285494Ferrari Screw 8x50 - 285494$1.99Available, ships in 3-6 days
8231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
9231629Ferrari Allen Screw M8 x 30 TCEI - 231629$1.15Available, ships in 3-6 days
10178348Ferrari Washer - 178348$1.40Available, ships in 3-6 days
11133988Ferrari Plain Nut M10 x 1.25 x 8 - 133988$0.38Available, ships in 3-6 days
1210263160Ferrari Washer D. 18-24 x 1 - 10263160$0.54Available, ships in 3-6 days
13309101Ferrari Connector - 309101$34.44Special order, ships in 7-14 days
14302618Ferrari Gasket - 302618$2.38Available, ships in 3-6 days
15307936Ferrari Cover - 307936$34.44Special order, ships in 7-14 days
