Ferrari F8 Spider — [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD (diagram 0011)

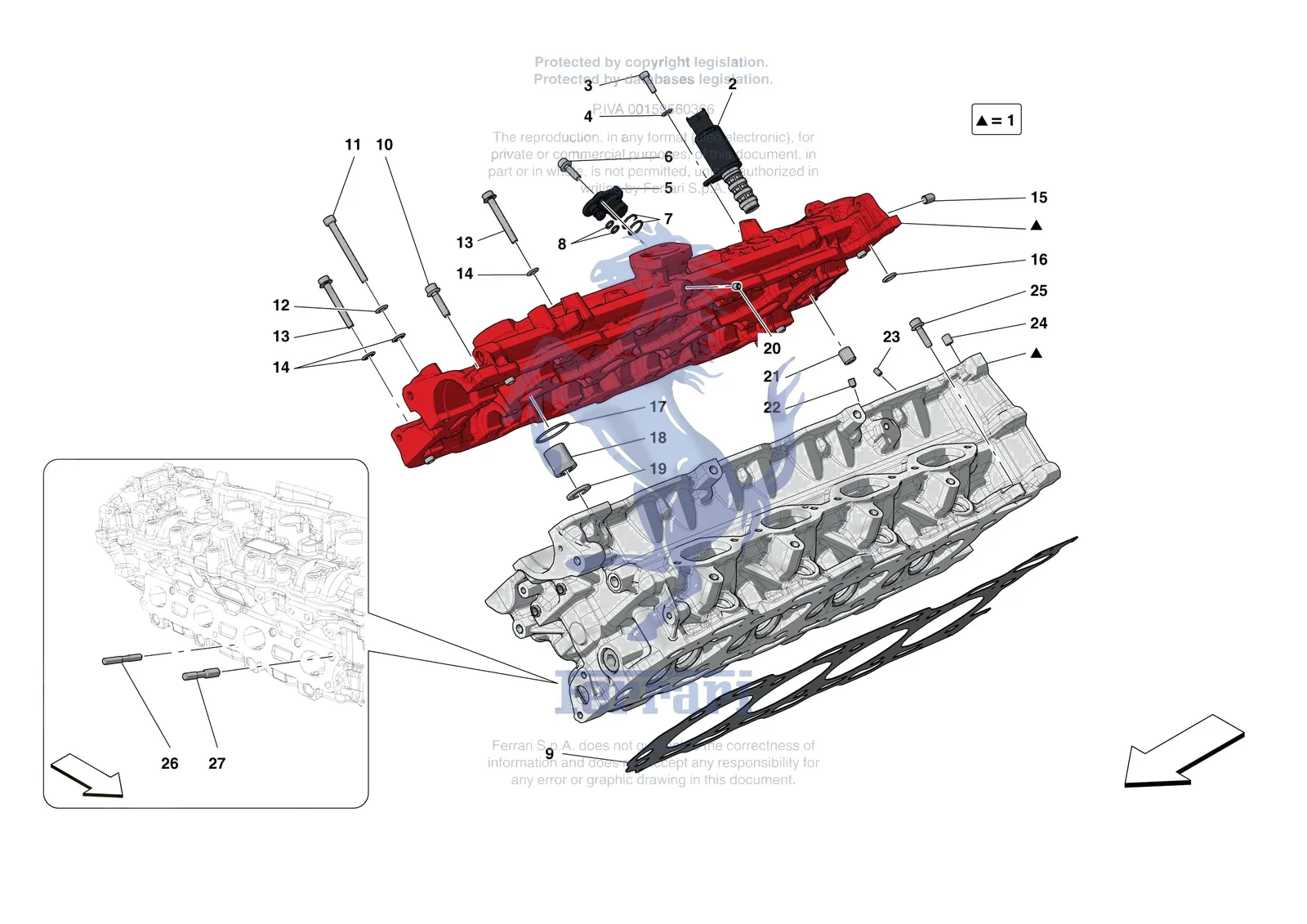

Exploded view of the [engine] - b.08.01 - cylinder heads - rh head on the Ferrari F8 Spider, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0011.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 255442 | Ferrari Oil Pressure Regulator Valve - 255442 | Superseded | Order 801187 instead | |
| 269227 | Ferrari Oil Pressure Regulator Valve - 269227 | Superseded | Order 801187 instead | |
| 806089 | Ferrari Plug - 806089 | $15.06 | Special order, ships in 7-14 days | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 979086 | Ferrari Assieme Testa Dx - Coperchi - 979086 | $4,505.01 | Special order, ships in 7-14 days |
| 2 | 296017 | Ferrari Oil Pressure Regulator Valve - 296017 | Superseded | Order 801187 instead |
| 2 | 801187 | Ferrari Oil Pressure Regulator Valve - 801187 | $368.79 | Available, ships in 3-6 days |
| 3 | 14304224 | Ferrari Screw M5 x 16 - 14304224 | $0.27 | Available, ships in 3-6 days |
| 4 | 11181574 | Ferrari Washer - 11181574 | $0.06 | Available, ships in 3-6 days |
| 5 | 287233 | Ferrari Cap - 287233 | Superseded | Order 806089 instead |
| 6 | 13026924 | Ferrari Screw 6x14 - 13026924 | $0.57 | Available, ships in 3-6 days |
| 7 | 14453281 | Ferrari O-Ring Gasket - 14453281 | $2.61 | Available, ships in 3-6 days |
| 8 | 14452781 | Ferrari Gasket - 14452781 | $0.38 | Available, ships in 3-6 days |
| 9 | 319511 | Ferrari RH Head-Crankcase Gasket - 319511 | $236.34 | Special order, ships in 7-14 days |
| 10 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 11 | 14303821 | Ferrari Screw M6 x 60 - 14303821 | $0.92 | Available, ships in 3-6 days |
| 12 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 13 | 296759 | Ferrari Screw M6 x 1 x 45 - 296759 | $1.36 | Available, ships in 3-6 days |
| 14 | 296075 | Ferrari Washer - 296075 | $2.38 | Available, ships in 3-6 days |
| 15 | 277903 | Ferrari Cap - 277903 | $1.23 | Available, ships in 3-6 days |
| 16 | 127816 | Ferrari Sealing Ring - 127816 | $6.00 | In stock |
| 17 | 166657 | Ferrari O-Ring D.29.87 - 166657 | $0.98 | Available, ships in 3-6 days |
| 18 | 271125 | Ferrari Cylinder Head Nut - 271125 | $14.39 | Available, ships in 3-6 days |
| 19 | 271129 | Ferrari Washer - 271129 | $2.38 | Available, ships in 3-6 days |
| 20 | 199760 | Ferrari Threaded Plug D 6x1 - 199760 | $0.57 | Available, ships in 3-6 days |
| 21 | 342272 | Ferrari Non Return Valve - 342272 | $20.37 | Special order, ships in 7-14 days |
| 22 | 256827 | Ferrari Dowel - 256827 | $10.91 | Available, ships in 3-6 days |
| 23 | 226414 | Ferrari Grub Screw - 226414 | $13.74 | Available, ships in 3-6 days |
| 24 | 818173 | Ferrari Alignment Dowel - 818173 | $1.88 | Special order, ships in 7-14 days |
| 25 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 26 | 307168 | Ferrari Exhaust Manifold Stud - 307168 | $3.85 | In stock |
| 27 | 306320 | Ferrari Exhaust Manifold Stud - 306320 | $3.85 | In stock |
