Ferrari F8 Spider — [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING (diagram 0013)

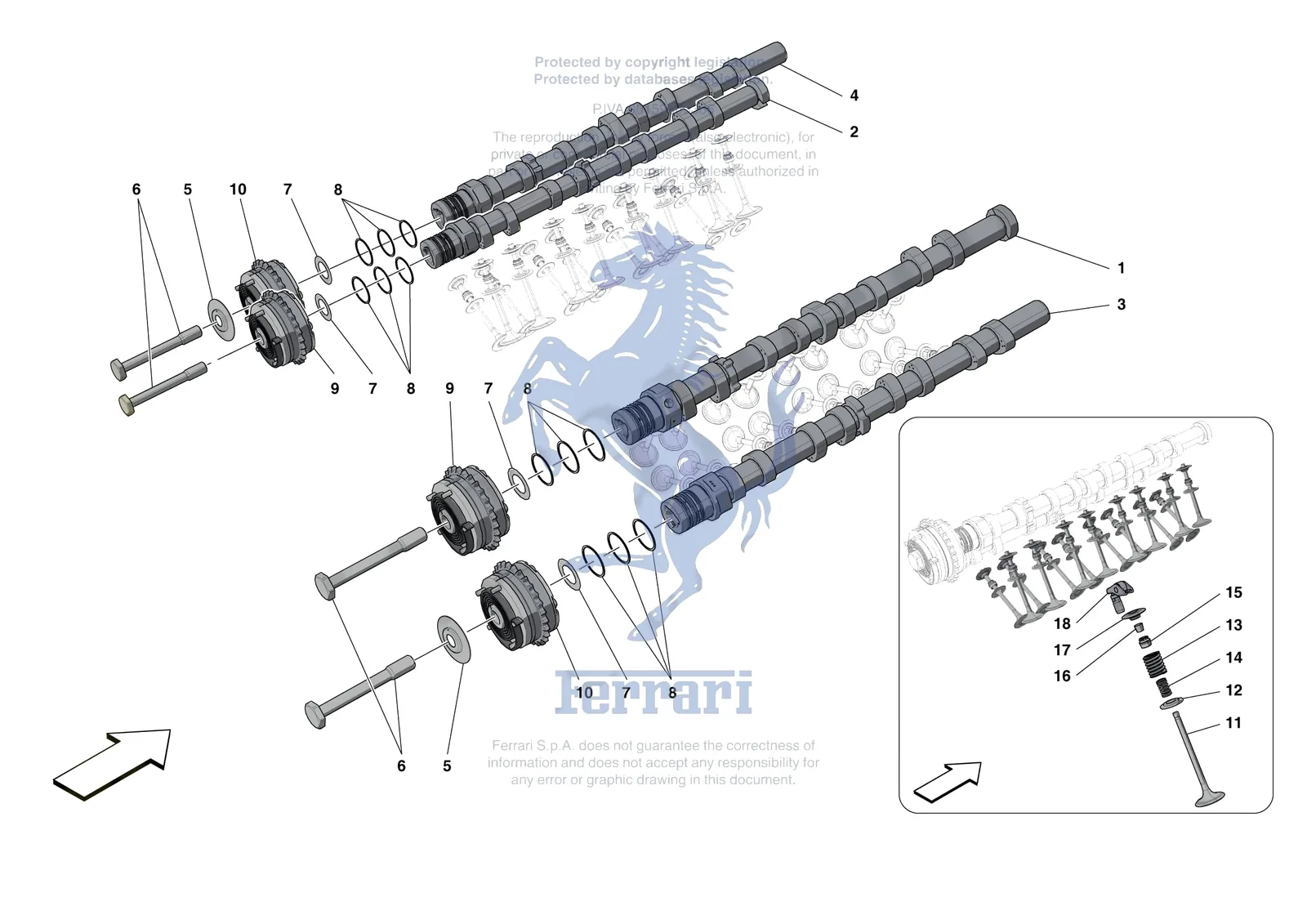

Exploded view of the [engine] - b.08.03 - cylinder heads - timing on the Ferrari F8 Spider, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0013.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 334900 | Ferrari RH Intake Camshaft - 334900 | $493.79 | Special order, ships in 7-14 days |
| 2 | 334901 | Ferrari LH Intake Camshaft - 334901 | $493.79 | Special order, ships in 7-14 days |
| 3 | 334902 | Ferrari RH Exhaust Camshaft - 334902 | $493.79 | Special order, ships in 7-14 days |
| 4 | 334903 | Ferrari LH Exhaust Camshaft - 334903 | $493.79 | Special order, ships in 7-14 days |
| 5 | 296310 | Ferrari Spacer - 296310 | $36.86 | Special order, ships in 7-14 days |
| 6 | 287708 | Ferrari Cam Gear Bolt - 287708 | $27.80 | In stock |
| 7 | 240559 | Ferrari Diamond Washer - 240559 | $17.90 | Available, ships in 3-6 days |
| 8 | 246965 | Ferrari Seal Ring - 246965 | $18.42 | Available, ships in 3-6 days |
| 9 | 279099 | Ferrari Variable Valve Timing Adjust - 279099 | $935.64 | Special order, ships in 7-14 days |
| 10 | 295300 | Ferrari Variable Valve Timing Adjust - 295300 | $886.38 | Special order, ships in 7-14 days |
| 11 | 314857 | Ferrari Exhaust Valve - 314857 | $123.09 | Special order, ships in 7-14 days |
| 11 | 317956 | Ferrari Intake Valve - 317956 | $66.45 | Special order, ships in 7-14 days |
| 12 | 828682 | Ferrari Lower Exhaust Valve Spring Cap - 828682 | $12.78 | Special order, ships in 7-14 days |
| 12 | 287553 | Ferrari Lower Intake Valve Spring Cap - 287553 | $6.32 | Special order, ships in 7-14 days |
| 13 | 327416 | Ferrari Valve Return Spring - 327416 | $29.52 | Special order, ships in 7-14 days |
| 14 | 828870 | Ferrari Valve Return Spring - 828870 | $31.99 | Special order, ships in 7-14 days |
| 15 | 221473 | Ferrari Valve Stem Seal - 221473 | $2.22 | In stock |
| 16 | 179763 | Ferrari Valve Collets Per Half - 179763 | $1.40 | Available, ships in 3-6 days |
| 17 | 313581 | Ferrari Upper Valve Spring Cap - 313581 | $14.99 | Special order, ships in 7-14 days |
| 18 | 816232 | Ferrari Compl. Finger-Tappet - 816232 | $73.85 | Special order, ships in 7-14 days |
| 18 | 840556 | Ferrari Compl. Finger-Tappet - 840556 | $78.76 | Special order, ships in 7-14 days |
