Ferrari F8 Spider — [ENGINE] - B.9 - TIMING SYSTEM DRIVE (diagram 0014)

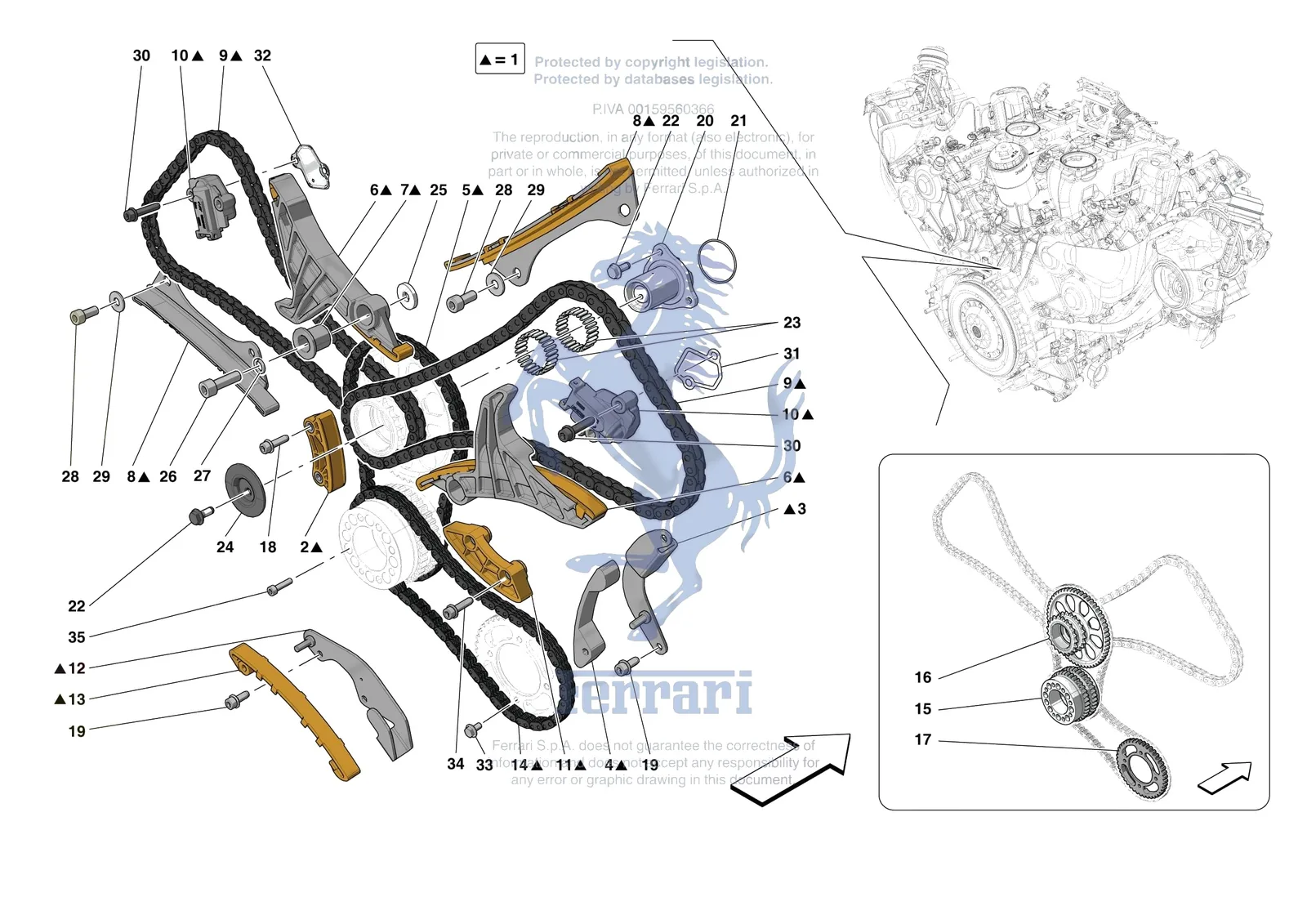

Exploded view of the [engine] - b.9 - timing system drive on the Ferrari F8 Spider, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [ENGINE] - B.9 - TIMING SYSTEM DRIVE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0014.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 807535 | Ferrari Hydraulic Chain Tensioner - 807535 | Superseded | Order 987015 instead | |
| 306686 | Ferrari Idler Gear Mounting - 306686 | $367.14 | Special order, ships in 7-14 days | |
| 311060 | Ferrari Pump Drive Gear - 311060 | Superseded | Order 310416 instead | |
| 286807 | Ferrari Shoe - 286807 | $562.96 | Special order, ships in 7-14 days | |
| 287802 | Ferrari Shoulder - 287802 | $61.16 | Special order, ships in 7-14 days | |
| 1 | 341189 | Ferrari Compl. Valve Timing System - 341189 | $2,110.49 | Special order, ships in 7-14 days |
| 2 | 306094 | Ferrari Fixed Shoe - 306094 | $105.86 | Available, ships in 3-6 days |
| 3 | 271856 | Ferrari Mobile Shoe Mount - 271856 | $105.86 | Special order, ships in 7-14 days |
| 4 | 257626 | Ferrari Shoe - 257626 | $152.41 | Special order, ships in 7-14 days |
| 5 | 271880 | Ferrari Chain - 271880 | $213.88 | Special order, ships in 7-14 days |
| 6 | 318677 | Ferrari Shoe - 318677 | $162.48 | Special order, ships in 7-14 days |
| 7 | 175303 | Ferrari Bush For Timing Guide - 175303 | $56.52 | Special order, ships in 7-14 days |
| 8 | 307544 | Ferrari Shoe - 307544 | $120.62 | Available, ships in 3-6 days |
| 9 | 317852 | Ferrari Chain - 317852 | $369.30 | Available, ships in 3-6 days |
| 10 | 987015 | Ferrari Hydraulic Chain Tensioner - 987015 | $231.42 | Special order, ships in 7-14 days |
| 10 | 297696 | Ferrari Tensioner - 297696 | Superseded | Order 987015 instead |
| 11 | 311057 | Ferrari Shoe - 311057 | $118.16 | Special order, ships in 7-14 days |
| 12 | 276463 | Ferrari Mount Complete - 276463 | $64.00 | Special order, ships in 7-14 days |
| 13 | 337842 | Ferrari Mobile Shoe - 337842 | $192.03 | Special order, ships in 7-14 days |
| 14 | 311058 | Ferrari Chain - 311058 | $1,551.20 | Special order, ships in 7-14 days |
| 15 | 304689 | Ferrari Crankshaft Gear - 304689 | $664.78 | Special order, ships in 7-14 days |
| 16 | 304687 | Ferrari Drive Gear - 304687 | $812.51 | Special order, ships in 7-14 days |
| 17 | 310416 | Ferrari Pump Drive Gear - 310416 | $443.17 | Special order, ships in 7-14 days |
| 18 | 282396 | Ferrari Screw 6x22 - 282396 | $1.23 | Available, ships in 3-6 days |
| 19 | 282393 | Ferrari Screw 6x16 - 282393 | $1.48 | Available, ships in 3-6 days |
| 20 | 318595 | Ferrari Idler Gear Mounting - 318595 | $344.69 | Special order, ships in 7-14 days |
| 21 | 154191 | Ferrari O-Ring - 154191 | $1.42 | In stock |
| 22 | 284898 | Ferrari Screw M6 x 16 - 284898 | $6.31 | Special order, ships in 7-14 days |
| 23 | 267808 | Ferrari Roller Bearing Cage - 267808 | $24.02 | Available, ships in 3-6 days |
| 24 | 304699 | Ferrari Shoulder - 304699 | $56.52 | Special order, ships in 7-14 days |
| 25 | 288341 | Ferrari Washer - 288341 | $5.86 | Special order, ships in 7-14 days |
| 26 | 14306421 | Ferrari Screw 8x20 - 14306421 | $0.63 | Available, ships in 3-6 days |
| 26 | 14306424 | Ferrari Screw M8 x 25mm - 14306424 | Superseded | Order 14306421 instead |
| 27 | 284900 | Ferrari Washer - 284900 | $0.33 | Special order, ships in 7-14 days |
| 28 | 14302821 | Ferrari Screw - 14302821 | $0.38 | Available, ships in 3-6 days |
| 29 | 163759 | Ferrari Washer - 163759 | $26.20 | Special order, ships in 7-14 days |
| 30 | 282398 | Ferrari Screw 6x30 - 282398 | $1.04 | Available, ships in 3-6 days |
| 31 | 322518 | Ferrari Gasket - 322518 | $15.95 | Available, ships in 3-6 days |
| 32 | 306440 | Ferrari Gasket - 306440 | $4.35 | Available, ships in 3-6 days |
| 33 | 284899 | Ferrari Screw - 284899 | $8.07 | Available, ships in 3-6 days |
| 34 | 282397 | Ferrari Screw 6x25 - 282397 | $1.02 | Available, ships in 3-6 days |
| 35 | 245914 | Ferrari Screw M5 x 20 - 245914 | $0.79 | Available, ships in 3-6 days |
