Ferrari F8 Spider — [ENGINE] - B.21 - VENTS (diagram 0026)

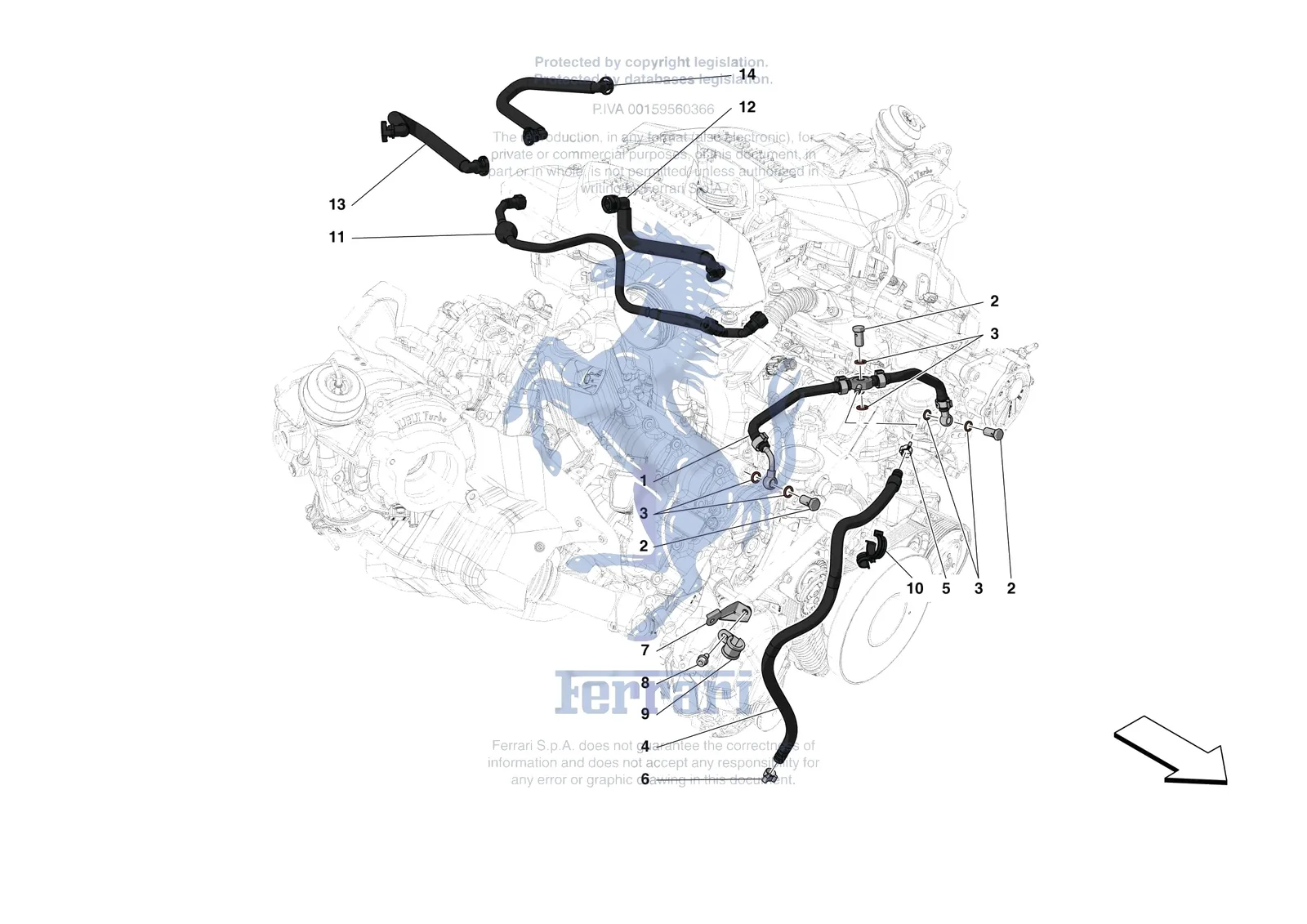

Exploded view of the [engine] - b.21 - vents on the Ferrari F8 Spider, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [ENGINE] - B.21 - VENTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0026.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 311361 | Ferrari LH Vapour Inlet Pipe - 311361 | Superseded | Order 322004 instead | |
| 311360 | Ferrari RH Vapour Inlet Pipe - 311360 | Superseded | Order 322002 instead | |
| 318928 | Ferrari Self-Bleeding Pipe Mounting Bracket - 318928 | Superseded | Order 324497 instead | |
| 323685 | Ferrari Self-Bleeding Pipe Mounting Bracket - 323685 | Superseded | Order 324497 instead | |
| 1 | 315504 | Ferrari Head Water Vent Pipe Complete - 315504 | $443.17 | Special order, ships in 7-14 days |
| 2 | 11903811 | Ferrari Banjo Bolt M10 x 1.25 - 11903811 | $8.05 | Special order, ships in 7-14 days |
| 3 | 10260960 | Ferrari Washer - 10260960 | $0.34 | Available, ships in 3-6 days |
| 4 | 323682 | Ferrari Rubber Pipe Complete With Sheath - 323682 | $167.40 | Special order, ships in 7-14 days |
| 5 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 6 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 7 | 324497 | Ferrari Self-Bleeding Pipe Mounting Bracket - 324497 | $39.37 | Special order, ships in 7-14 days |
| 8 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 9 | 10441590 | Ferrari P Clip Bracket With Sheath 16mm - 10441590 | $0.98 | Available, ships in 3-6 days |
| 10 | 82051200 | Ferrari Clip - 82051200 | $1.69 | Special order, ships in 7-14 days |
| 11 | 795902 | Ferrari Pipe From Tank To Manifold P - 795902 | $467.80 | Special order, ships in 7-14 days |
| 12 | 311359 | Ferrari Pipe From Tank To Rear Cover - 311359 | $152.62 | Special order, ships in 7-14 days |
| 12 | 311745 | Ferrari Pipe From Tank To Rear Cover - 311745 | $418.56 | Special order, ships in 7-14 days |
| 13 | 322002 | Ferrari RH Vapour Inlet Pipe - 322002 | $155.10 | Special order, ships in 7-14 days |
| 13 | 322006 | Ferrari RH Vapour Inlet Pipe - 322006 | $418.56 | Special order, ships in 7-14 days |
| 14 | 322004 | Ferrari LH Vapour Inlet Pipe - 322004 | $155.10 | Special order, ships in 7-14 days |
| 14 | 322008 | Ferrari LH Vapour Inlet Pipe - 322008 | $418.56 | Special order, ships in 7-14 days |
