Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS (diagram 0051)

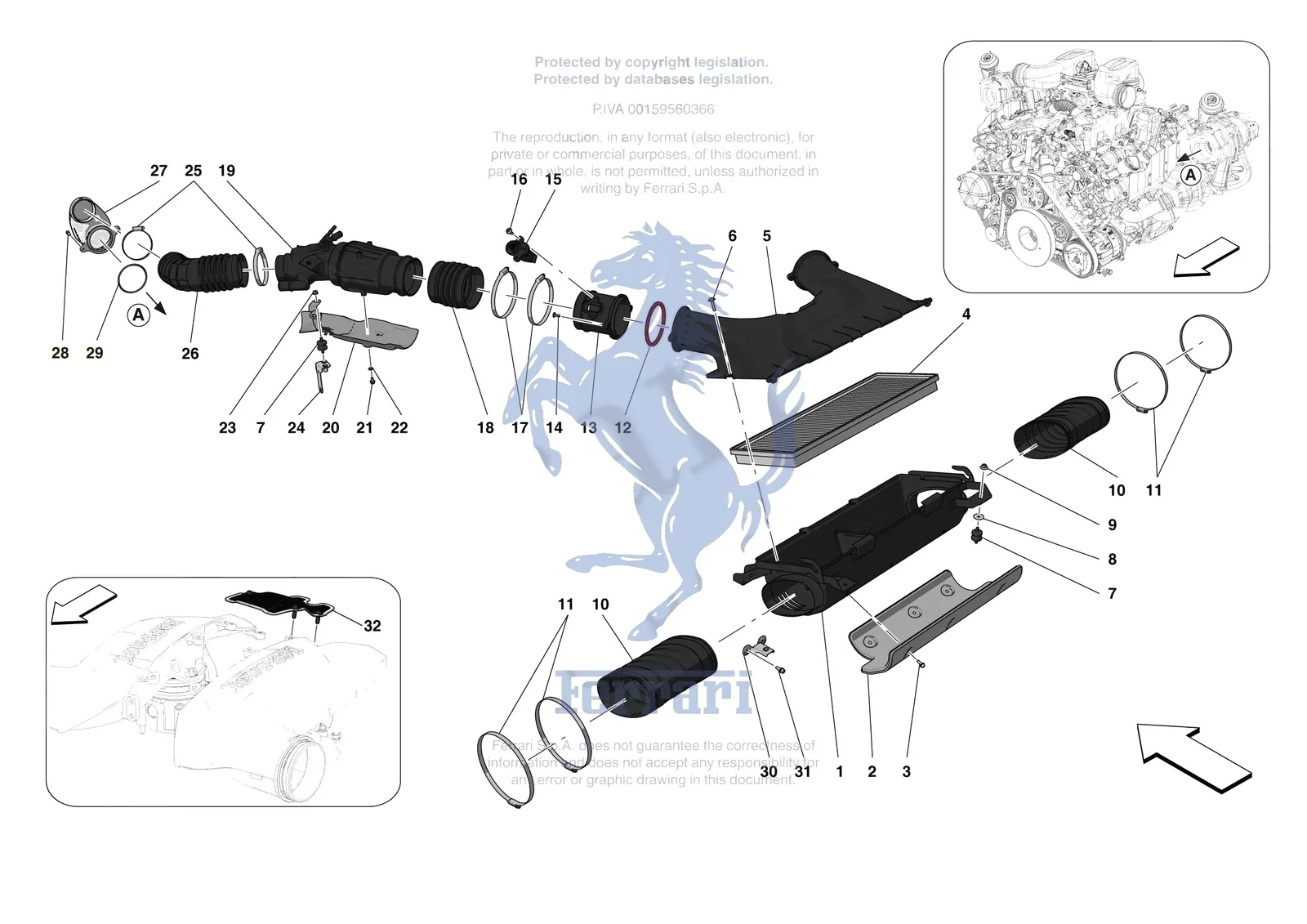

Exploded view of the [mechanical system] - d.04.01 - air filter air intake and ducts on the Ferrari F8 Spider, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F8 Spider [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
309530Ferrari Filter Box Cover - 309530SupersededOrder 343410 instead
313036Ferrari LH Intake Duct Connector - 313036SupersededOrder 324304 instead
322661Ferrari LH Intake Duct Sleeve - 322661SupersededOrder 324304 instead
313617Ferrari LH Turbo Duct Complete - 313617SupersededOrder 325567 instead
313035Ferrari Manicotto Condotto Aspirazio - 313035SupersededOrder 322660 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
313616Ferrari RH Turbo Duct Complete - 313616SupersededOrder 325566 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1315204Ferrari Filter Box Lower Part - 315204$3,522.19Special order, ships in 7-14 days
2318635Ferrari Filter Box Heat Shield - 318635$199.41Special order, ships in 7-14 days
3256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
4312530Ferrari 488 Engine Air Filter - 312530$142.45In stock
4318481Ferrari 488 Engine Air Filter - 318481$280.50In stock
5343410Ferrari Filter Box Cover - 343410$714.03Special order, ships in 7-14 days
6280758Ferrari Screw M5 x 25 TBCIT - 280758$15.29Special order, ships in 7-14 days
7285553Ferrari Vibration Damper - 285553$36.00In stock
812648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
914039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
10816256Ferrari Air Intake Sleeve - 816256$492.43Special order, ships in 7-14 days
11826951Ferrari Collar - 826951$12.02Special order, ships in 7-14 days
12193113Ferrari Gasket - 193113$16.60Special order, ships in 7-14 days
13311496Ferrari LH Air Flow Sensor Mounting Housing - 311496$64.00Special order, ships in 7-14 days
13311497Ferrari RH Air Flow Sensor Mounting Housing - 311497$64.00Special order, ships in 7-14 days
1485833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
15297280Ferrari Air Flow Sensor - 297280$237.66In stock
1616084477Ferrari Screw - 16084477$3.91Special order, ships in 7-14 days
17323688Ferrari Ring Clamp - 323688$8.93Special order, ships in 7-14 days
18311476Ferrari Intake Duct Connector - 311476$177.25Available, ships in 3-6 days
19320387Ferrari Part Search Results - 320387$640.17Special order, ships in 7-14 days
19891414Ferrari Tubo Sx Spider Da Sc.Filtro - 891414$640.17Special order, ships in 7-14 days
20320389Ferrari Part Search Results - 320389$183.56Special order, ships in 7-14 days
20320390Ferrari Part Search Results - 320390$173.76Special order, ships in 7-14 days
2116284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
2116284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
2212637801Ferrari Washer - 12637801$0.19Available, ships in 3-6 days
2314040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
24319020Ferrari LH Duct Mounting Bracket - 319020$44.29Special order, ships in 7-14 days
24319019Ferrari RH Duct Mounting Bracket - 319019$44.29Special order, ships in 7-14 days
25296785Ferrari Hose Clamp 60 to 80mm - 296785$24.05Available, ships in 3-6 days
26324304Ferrari LH Intake Duct Sleeve - 324304$320.06Special order, ships in 7-14 days
26322660Ferrari RH Intake Duct Sleeve - 322660$199.41Special order, ships in 7-14 days
27325567Ferrari LH Turbo Duct Complete - 325567$615.54Special order, ships in 7-14 days
27325566Ferrari RH Turbo Duct Complete - 325566$837.14Special order, ships in 7-14 days
28231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
29125521Ferrari/Maserati Oil Tank O-Ring - 125521$13.20In stock
30314915Ferrari Filter Box Mounting Bracket - 314915$31.99Special order, ships in 7-14 days
31231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
32900714Ferrari Cosmetic Mesh - Spider - 900714$418.56Special order, ships in 7-14 days
32814925Ferrari Cosmetic Mesh Trim - 814925$418.56Special order, ships in 7-14 days

All F8 Spider diagrams
