Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK (diagram 0058)

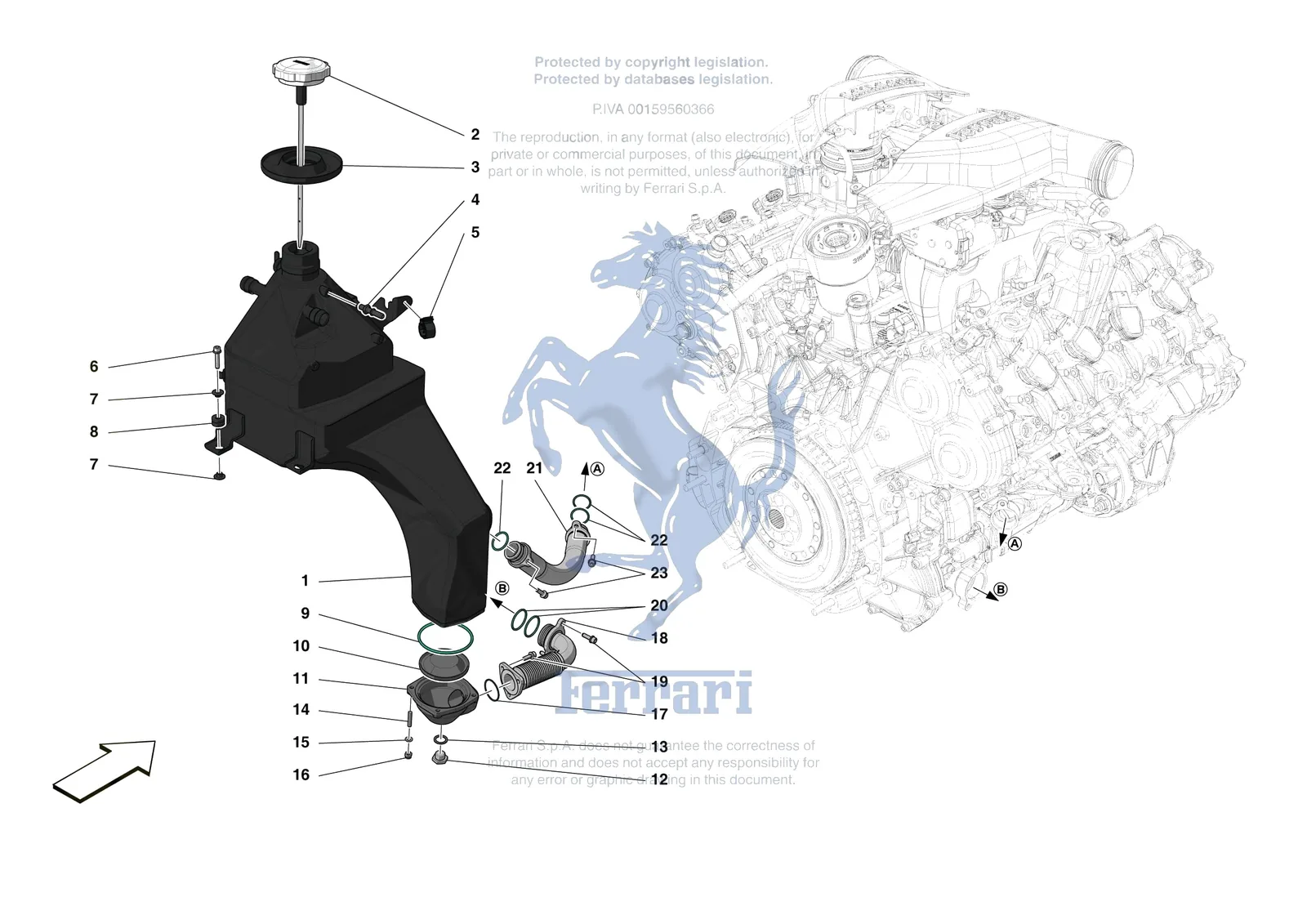

Exploded view of the [mechanical system] - d.9 - engine oil radiator and tank on the Ferrari F8 Spider, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0058.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10261460 | Ferrari Copper Washer 16x24x1.5 - 10261460 | $0.63 | Available, ships in 3-6 days | |
| 103373 | Ferrari Nut - 103373 | Superseded | Order 102948 instead | |
| 12774221 | Ferrari Nut - 12774221 | Superseded | Order 102948 instead | |
| 125519 | Ferrari Nyloc Nut - 125519 | Superseded | Order 102948 instead | |
| 12574221 | Ferrari Nyloc Nut - 12574221 | Superseded | Order 102948 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 12601224 | Ferrari Washer - 12601224 | Superseded | Order 12601274 instead | |
| 12605370 | Ferrari Washer - 12605370 | Superseded | Order 12601274 instead | |
| 12605371 | Ferrari Washer - 12605371 | Superseded | Order 12601274 instead | |
| 680232 | Ferrari Washer - 680232 | Superseded | Order 12601274 instead | |
| 12605374 | Ferrari Wavy Washer - 12605374 | Superseded | Order 12601274 instead | |
| 1 | 325249 | Ferrari Oil Tank Complete - 325249 | $3,927.87 | Special order, ships in 7-14 days |
| 2 | 317655 | Ferrari Cap Complete With Dipstick - 317655 | $492.43 | Special order, ships in 7-14 days |
| 3 | 294022 | Ferrari Ring For Engine Oil Tank - 294022 | $86.04 | Special order, ships in 7-14 days |
| 4 | 14326101 | Ferrari Threaded Connector - 14326101 | $2.38 | Special order, ships in 7-14 days |
| 4 | 317584 | Ferrari Threaded Connector - 317584 | $41.82 | Special order, ships in 7-14 days |
| 5 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 6 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 7 | 183898 | Ferrari Bush - 183898 | $5.44 | Special order, ships in 7-14 days |
| 8 | 177576 | Ferrari Cable Grommet - 177576 | $4.12 | Available, ships in 3-6 days |
| 9 | 125521 | Ferrari/Maserati Oil Tank O-Ring - 125521 | $13.20 | In stock |
| 10 | 100332 | Ferrari Sump Filter - 100332 | $37.13 | Available, ships in 3-6 days |
| 11 | 255176 | Ferrari Oil Pick Up - 255176 | $246.20 | Special order, ships in 7-14 days |
| 12 | 10300711 | Ferrari Threaded Drain Plug - 10300711 | $4.59 | In stock |
| 13 | 10257060 | Ferrari/Maserati Copper Washer - 10257060 | $1.10 | In stock |
| 14 | 11500424 | Ferrari Stud M6 x 9 Gambo 20 - 11500424 | $1.04 | Available, ships in 3-6 days |
| 14 | 11500524 | Ferrari Stud Bolt M6 x 9 Gambo 22 - 11500524 | $0.73 | Available, ships in 3-6 days |
| 15 | 12601274 | Ferrari Wavy Washer 6mm - 12601274 | $1.04 | Available, ships in 3-6 days |
| 16 | 102948 | Ferrari Nyloc Nut M6 x 8 - 102948 | $0.46 | Available, ships in 3-6 days |
| 17 | 862084 | Ferrari Gasket - 862084 | $7.84 | Available, ships in 3-6 days |
| 18 | 317832 | Ferrari Oil Delivery Pipe From Tank - 317832 | $812.51 | Special order, ships in 7-14 days |
| 19 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 20 | 14458481 | Ferrari O-Ring - 14458481 | $3.70 | Available, ships in 3-6 days |
| 21 | 317835 | Ferrari Oil Recovery Pipe From Engine To Tank - 317835 | $492.43 | Special order, ships in 7-14 days |
| 22 | 139934 | Ferrari Radiator Tank Pipe to Oil Tank O-Ring - 139934 | $2.15 | In stock |
| 23 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
