Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.12 - TANK MOUNTS (diagram 0061)

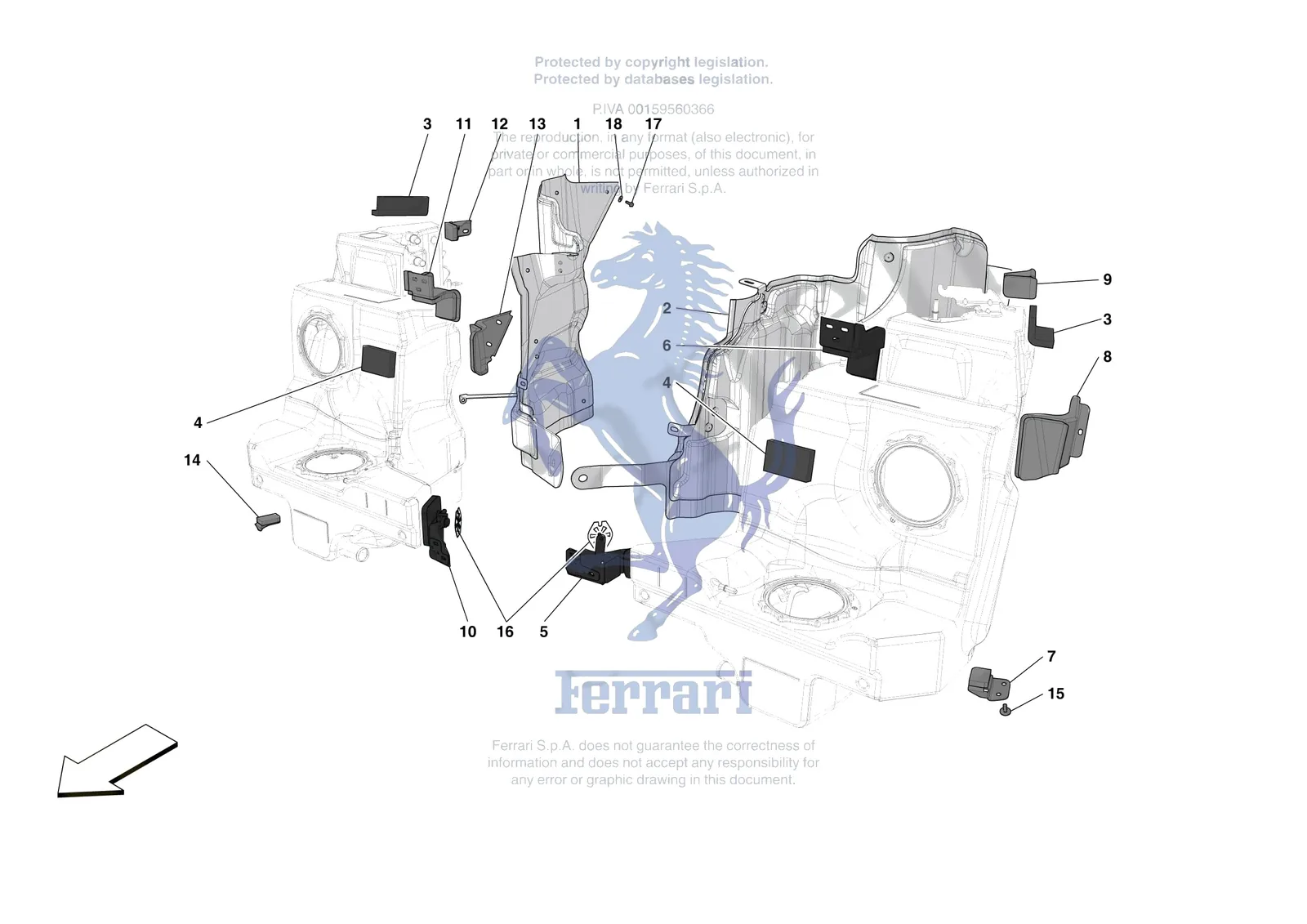

Exploded view of the [mechanical system] - d.12 - tank mounts on the Ferrari F8 Spider, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.12 - TANK MOUNTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0061.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 320229 | Ferrari RH Tank Heat Insulation - 320229 | $935.64 | Special order, ships in 7-14 days |
| 2 | 320230 | Ferrari LH Tank Heat Insulation - 320230 | $935.64 | Special order, ships in 7-14 days |
| 3 | 308339 | Ferrari Vibration Damper Pad For Tanks - 308339 | $9.08 | Special order, ships in 7-14 days |
| 4 | 313310 | Ferrari Vibration Damper Pad For Tanks - 313310 | $5.39 | Special order, ships in 7-14 days |
| 5 | 313508 | Ferrari LH Centre Tank Retainer - 313508 | $344.69 | Special order, ships in 7-14 days |
| 6 | 317184 | Ferrari Inner LH Upper Tank Retainer - 317184 | $130.47 | Special order, ships in 7-14 days |
| 7 | 311186 | Ferrari LH Tank Retainer - 311186 | $78.76 | Special order, ships in 7-14 days |
| 8 | 313513 | Ferrari LH Rear Tank Retainer - 313513 | $150.17 | Special order, ships in 7-14 days |
| 9 | 312973 | Ferrari LH Upper Tank Retainer - 312973 | $71.38 | Special order, ships in 7-14 days |
| 10 | 313507 | Ferrari RH Centre Tank Retainer - 313507 | $344.69 | Special order, ships in 7-14 days |
| 11 | 317185 | Ferrari Inner RH Upper Tank Retainer - 317185 | $130.47 | Special order, ships in 7-14 days |
| 12 | 312974 | Ferrari RH Upper Tank Retainer - 312974 | Price on request | Contact us for price and availability |
| 13 | 313514 | Ferrari RH Rear Tank Retainer - 313514 | $150.17 | Special order, ships in 7-14 days |
| 14 | 311187 | Ferrari RH Tank Retainer - 311187 | $78.76 | Special order, ships in 7-14 days |
| 15 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
| 16 | 67315400 | Ferrari Washer - 67315400 | $0.82 | Special order, ships in 7-14 days |
| 17 | 16281824 | Ferrari Screw - 16281824 | $0.82 | Available, ships in 3-6 days |
| 18 | 13577724 | Ferrari Washer - 13577724 | $3.68 | Special order, ships in 7-14 days |
