Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS (diagram 0063)
Exploded view of the [mechanical system] - d.14 - engine cooling system radiators on the Ferrari F8 Spider, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

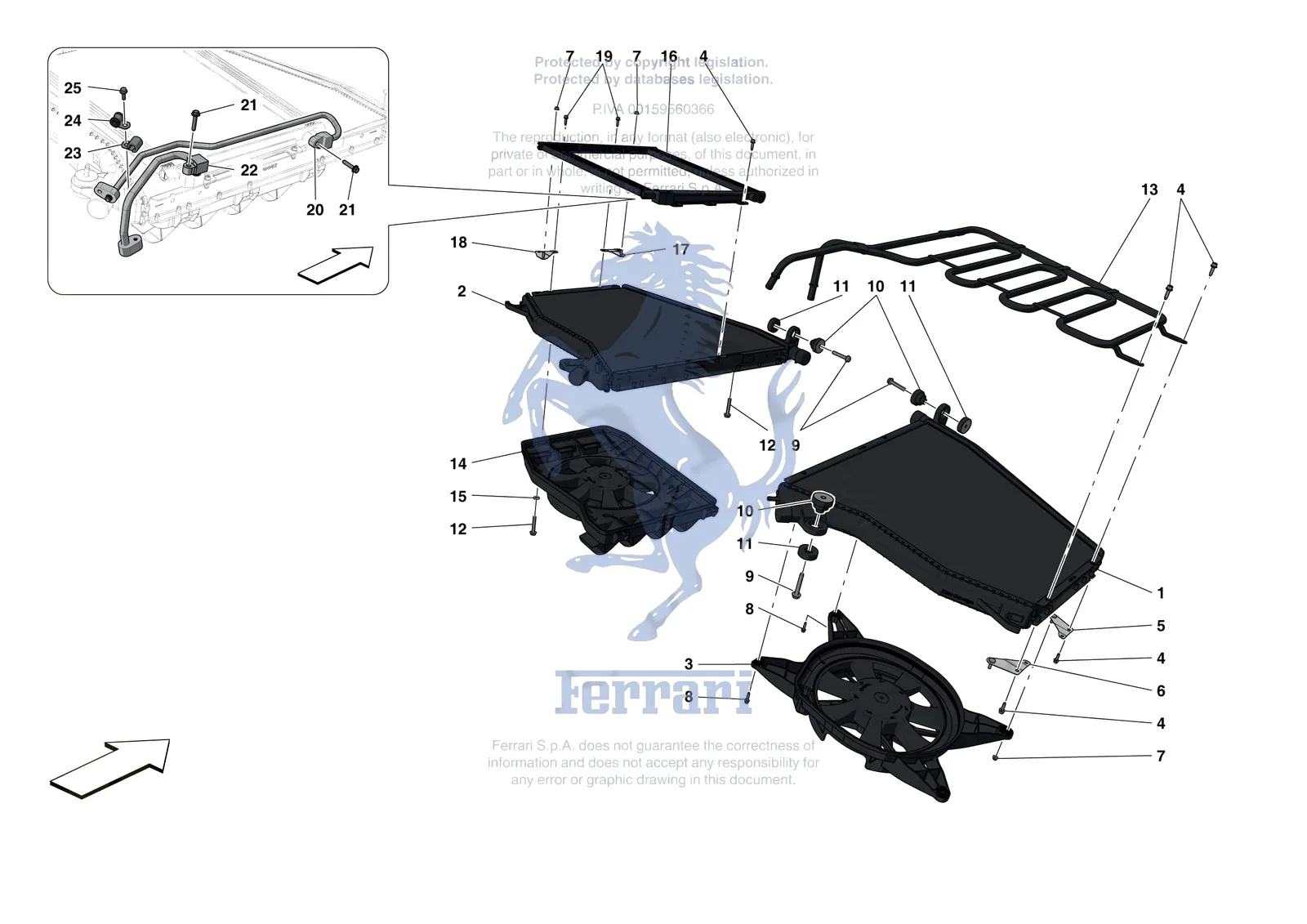

![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0063.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 769650 | Ferrari RH Water Radiator - 769650 | $2,703.78 | Special order, ships in 7-14 days |
| 2 | 769670 | Ferrari LH Water Radiator - 769670 | $2,703.78 | Special order, ships in 7-14 days |
| 3 | 315071 | Ferrari Electric Fan - 315071 | $1,354.22 | Special order, ships in 7-14 days |
| 4 | 11566524 | Ferrari Screw M5X20 - 11566524 | $0.98 | Available, ships in 3-6 days |
| 5 | 338639 | Ferrari Front Electric Fan Mounting - 338639 | $34.44 | Special order, ships in 7-14 days |
| 6 | 338636 | Ferrari Rear Electric Fan Mounting B - 338636 | $34.44 | Special order, ships in 7-14 days |
| 7 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 8 | 11566724 | Ferrari Screw 5X25 - 11566724 | $3.91 | Available, ships in 3-6 days |
| 9 | 836284 | Ferrari Screw - 836284 | $7.19 | Special order, ships in 7-14 days |
| 10 | 237478 | Ferrari Mounting - 237478 | $36.86 | Available, ships in 3-6 days |
| 11 | 247751 | Ferrari Washer - 247751 | $11.56 | Available, ships in 3-6 days |
| 12 | 14304524 | Ferrari Screw - 14304524 | $0.86 | Available, ships in 3-6 days |
| 13 | 338171 | Ferrari Power Steering Fluid Cooling - 338171 | $615.54 | Special order, ships in 7-14 days |
| 14 | 342151 | Ferrari Fan Cowl - 342151 | $1,526.57 | Special order, ships in 7-14 days |
| 15 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 16 | 262836 | Ferrari A/C Condenser - 262836 | $1,308.23 | Available, ships in 3-6 days |
| 17 | 338566 | Ferrari Compl. Front Condenser Mount - 338566 | $23.61 | Special order, ships in 7-14 days |
| 18 | 338575 | Ferrari Compl. Rear Condenser Mounti - 338575 | $23.61 | Special order, ships in 7-14 days |
| 19 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
| 20 | 88998000 | Ferrari Pipe From Condenser To Disco - 88998000 | $160.02 | Special order, ships in 7-14 days |
| 21 | 11626124 | Ferrari Screw 6x25 - 11626124 | Superseded | Order 11612826 instead |
| 21 | 11612826 | Ferrari Screw M6 x 25 - 11612826 | $6.75 | Available, ships in 3-6 days |
| 22 | 88898400 | Ferrari Freon Delivery Pipe To Conde - 88898400 | $187.10 | Special order, ships in 7-14 days |
| 23 | 10441390 | Ferrari P clip Bracket With Sheath D.12 - 10441390 | $1.02 | Available, ships in 3-6 days |
| 24 | 10441290 | Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290 | $1.02 | Available, ships in 3-6 days |
| 25 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
