Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES (diagram 0065)

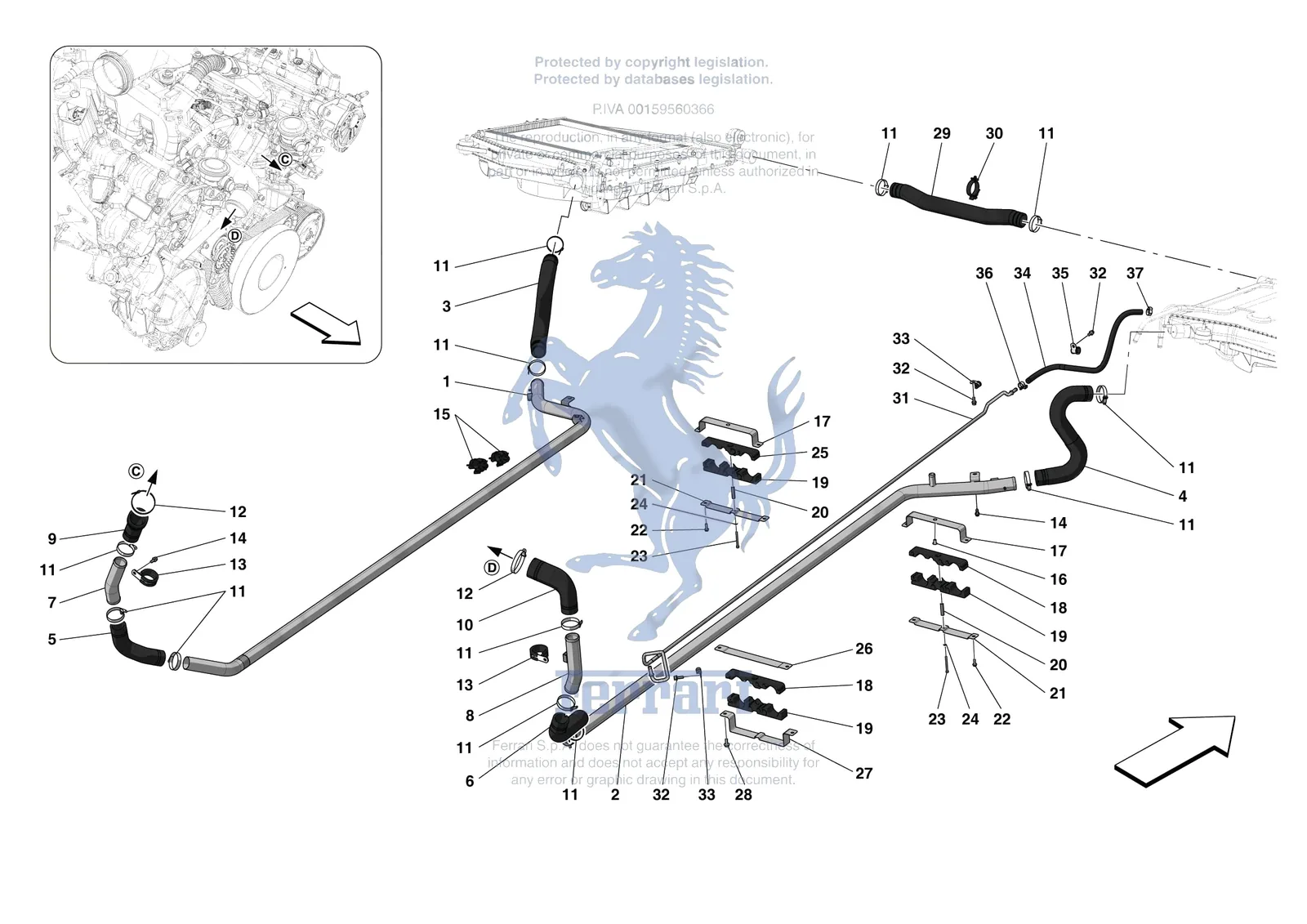

Exploded view of the [mechanical system] - d.16 - cooling system pipes on the Ferrari F8 Spider, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0065.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10861470 | Ferrari Collar - 10861470 | Superseded | Order 262383 instead | |
| 10861570 | Ferrari Collar - 10861570 | Superseded | Order 262383 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 1 | 320023 | Ferrari H20 Underbody Delivery Pipe - 320023 | $344.69 | Special order, ships in 7-14 days |
| 1 | 321957 | Ferrari H20 Underbody Delivery Pipe - 321957 | $467.80 | Special order, ships in 7-14 days |
| 2 | 313345 | Ferrari Underbody Water Return Pipe - 313345 | $369.30 | Special order, ships in 7-14 days |
| 3 | 806784 | Ferrari Water Delivery Hose To Radia - 806784 | $270.83 | Special order, ships in 7-14 days |
| 4 | 806789 | Ferrari Water Return Hose From Radia - 806789 | $224.04 | Special order, ships in 7-14 days |
| 5 | 320024 | Ferrari Rear Delivery Sleeve - 320024 | $110.78 | Special order, ships in 7-14 days |
| 6 | 306915 | Ferrari Rear Return Sleeve - 306915 | $120.62 | Special order, ships in 7-14 days |
| 7 | 306910 | Ferrari Rear Delivery Pipe - 306910 | $76.30 | Special order, ships in 7-14 days |
| 8 | 809051 | Ferrari Rear Return Pipe - 809051 | $132.94 | Special order, ships in 7-14 days |
| 9 | 306908 | Ferrari Delivery Sleeve From Pump - 306908 | $96.01 | Special order, ships in 7-14 days |
| 10 | 307916 | Ferrari Return Hose To Pump - 307916 | $108.31 | Special order, ships in 7-14 days |
| 11 | 262114 | Ferrari Collar - 262114 | $2.38 | Available, ships in 3-6 days |
| 12 | 262383 | Ferrari Collar - 262383 | $6.10 | Available, ships in 3-6 days |
| 13 | 182301 | Ferrari Bracket P Clip With Sheath - 182301 | $35.00 | Available, ships in 3-6 days |
| 14 | 11568024 | Ferrari Screw - 11568024 | $1.97 | Special order, ships in 7-14 days |
| 15 | 247440 | Ferrari Clip - 247440 | $1.30 | Available, ships in 3-6 days |
| 16 | 15627411 | Ferrari RIVET - 15627411 | Price on request | Contact us for price and availability |
| 17 | 263068 | Ferrari Upper Bracket - 263068 | $31.99 | Available, ships in 3-6 days |
| 18 | 322053 | Ferrari Pipe Upper Retainer Block - 322053 | $36.92 | Special order, ships in 7-14 days |
| 19 | 310745 | Ferrari Pipe Lower Retainer Block - 310745 | $34.44 | Available, ships in 3-6 days |
| 20 | 263070 | Ferrari Bushing - 263070 | $10.06 | Available, ships in 3-6 days |
| 21 | 263069 | Ferrari Lower Bracket - 263069 | $23.36 | Special order, ships in 7-14 days |
| 22 | 13833614 | Ferrari Screw M5 x 16 TEBD - 13833614 | $2.59 | Available, ships in 3-6 days |
| 23 | 14302424 | Ferrari Screw 4X45 - 14302424 | $0.82 | Special order, ships in 7-14 days |
| 24 | 14497704 | Ferrari Washer - 14497704 | $1.30 | Special order, ships in 7-14 days |
| 25 | 310747 | Ferrari Pipe Upper Retainer Block - 310747 | $34.44 | Special order, ships in 7-14 days |
| 26 | 263136 | Ferrari Upper Bracket - 263136 | $23.36 | Special order, ships in 7-14 days |
| 27 | 263137 | Ferrari Lower Bracket - 263137 | $24.59 | Special order, ships in 7-14 days |
| 28 | 13836414 | Ferrari Self Locking Flange Bolt M6 x 16 TEBD - 13836414 | $4.12 | Available, ships in 3-6 days |
| 29 | 931307433 | Ferrari Radiator Connector Hose Unio - 931307433 | $233.89 | Special order, ships in 7-14 days |
| 30 | 292206 | Ferrari Pipe Retainer Clip - 292206 | $1.80 | Special order, ships in 7-14 days |
| 31 | 305447 | Ferrari Radiator Self-Bleeding Pipe - 305447 | $91.08 | Special order, ships in 7-14 days |
| 32 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 33 | 10441190 | Ferrari P clip Bracket With Sheath D8mm - 10441190 | $0.90 | Available, ships in 3-6 days |
| 34 | 804329 | Ferrari Vent Pipe From Radiator To D - 804329 | $59.07 | Special order, ships in 7-14 days |
| 35 | 10441490 | Ferrari/Maserati Retaining Clip - 10441490 | $1.35 | In stock |
| 36 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 36 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 37 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
