Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES (diagram 0070)

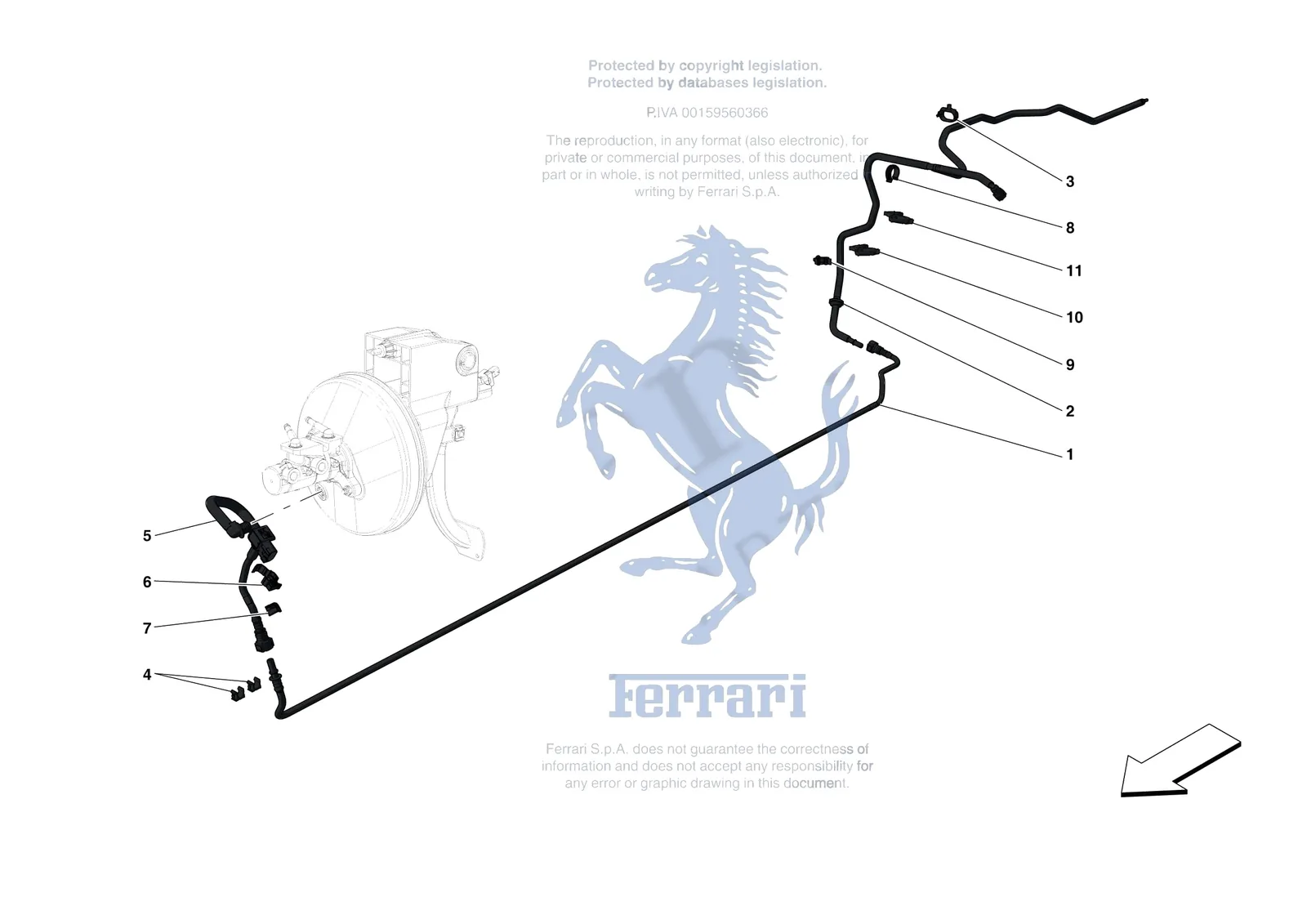

Exploded view of the [mechanical system] - d.21 - servo brake pipes on the Ferrari F8 Spider, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0070.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 305757 | Ferrari Underbody Brake Servo Vacuum - 305757 | Superseded | Order 320099 instead | |
| 1 | 320099 | Ferrari Underbody Brake Servo Vacuum - 320099 | $68.92 | Special order, ships in 7-14 days |
| 2 | 338860 | Ferrari Brake Servo Vacuum Pipe - 338860 | $443.17 | Special order, ships in 7-14 days |
| 3 | 149773 | Ferrari Clip - 149773 | $0.90 | Available, ships in 3-6 days |
| 4 | 140130 | Ferrari Clip - 140130 | $0.27 | Available, ships in 3-6 days |
| 5 | 273670 | Ferrari Front Vacuum Pipe Complete LHD - 273670 | $393.93 | Special order, ships in 7-14 days |
| 5 | 275505 | Ferrari Front Vacuum Pipe Complete RHD - 275505 | $228.97 | Special order, ships in 7-14 days |
| 6 | 204777 | Ferrari Clip - 204777 | $1.34 | Available, ships in 3-6 days |
| 7 | 250733 | Ferrari Clip - 250733 | $1.67 | Special order, ships in 7-14 days |
| 8 | 319839 | Ferrari Clip - 319839 | $2.82 | Special order, ships in 7-14 days |
| 9 | 191904 | Ferrari Clip - 191904 | $0.90 | Special order, ships in 7-14 days |
| 10 | 306692 | Ferrari Clip Set - 306692 | $1.11 | Special order, ships in 7-14 days |
| 11 | 159918 | Ferrari Clip Set - 159918 | $1.84 | Special order, ships in 7-14 days |
