Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR (diagram 0071)

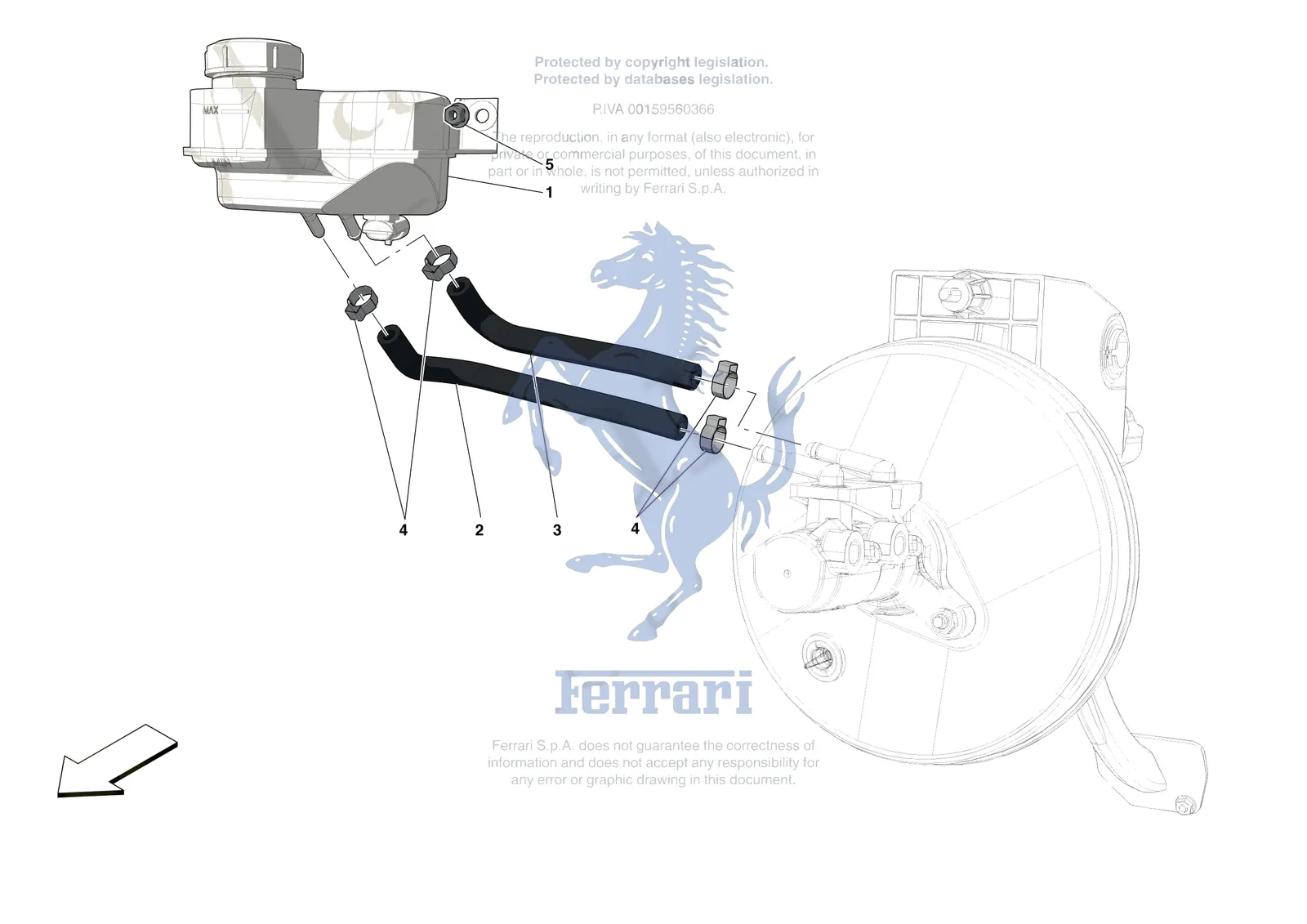

Exploded view of the [mechanical system] - d.22 - brake master cylinder reservoir on the Ferrari F8 Spider, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0071.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 743123 | Ferrari Tank - 743123 | Superseded | Order 956114 instead |
| 1 | 956114 | Ferrari Tank - 956114 | $128.01 | Special order, ships in 7-14 days |
| 1 | 957609 | Ferrari Tank - 957609 | Superseded | Order 956114 instead |
| 2 | 238606 | Ferrari Rubber Pipe LHD - 238606 | $39.37 | Special order, ships in 7-14 days |
| 2 | 262569 | Ferrari Rubber Pipe RHD - 262569 | $120.62 | Special order, ships in 7-14 days |
| 3 | 238607 | Ferrari Rubber Pipe LHD - 238607 | $34.44 | Special order, ships in 7-14 days |
| 3 | 262570 | Ferrari Rubber Pipe RHD - 262570 | $120.62 | Special order, ships in 7-14 days |
| 4 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 5 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
